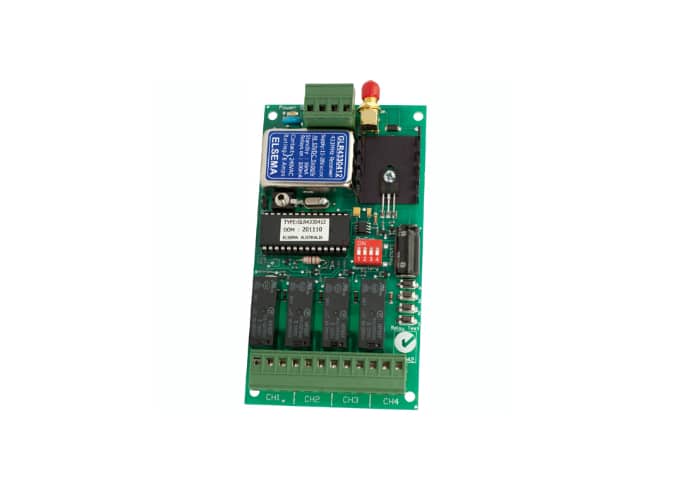

Elsema, GLR4330412, 4 Ch Relay Out RX 433 MHz 11-28VAC/DC
Elsema, GLR4330412, 4 Ch Relay Out RX 433 MHz 11-28VAC/DC
Elsema, GLR4330412, 4 Ch Relay Out RX 433 MHz 11-28VAC/DC
The Elsema GLR4330412 is a 4-channel relay output receiver designed for 433 MHz communication, providing reliable performance for various applications. It operates within an input voltage range of 11-28 VAC/DC, offering flexibility for both AC and DC systems. This receiver supports four channels, enabling it to control multiple devices simultaneously, making it ideal for automation, security, and industrial applications. The GLR4330412 is engineered for durability, with a compact design that ensures easy installation and long-lasting use. It integrates seamlessly with 433 MHz transmitters, offering remote control capabilities for a wide range of systems. This receiver is especially useful for remote monitoring and control tasks, as it allows users to manage multiple outputs effectively. Its versatility and robust performance make it suitable for both commercial and residential applications, delivering an efficient and reliable solution for users seeking advanced control systems.
Technical Specifications:
- Supply Voltage: 11.0 - 28 VAC/DC. Can use Elsema DC or AC power supply, 12PP1000, or 24PP.
- Current Consumption: 14 mA standby
- Receiving Frequency: 433.920MHz (other frequencies available on request)
- Sensitivity: Better than 1µV (for relay output to switch on)
- Relay Output: Four change over relay outputs, rated at 8 Amps / 240VAC
- Antenna: Elsema ANT 433MHz series
- Dimensions: 130 x 70 x 20mm
- Useable Transmitters: All Elsema type GLT433 series
- Ideal for Industrial Automation, eg Crane Control, winches, wireless cement truck operation.
