Elsema, GLR43308R, 8 Ch Relay Out RX 433MHz 11-28VAC/DC
Elsema, GLR43308R, 8 Ch Relay Out RX 433MHz 11-28VAC/DC
Elsema, GLR43308R, 8 Ch Relay Out RX 433MHz 11-28VAC/DC

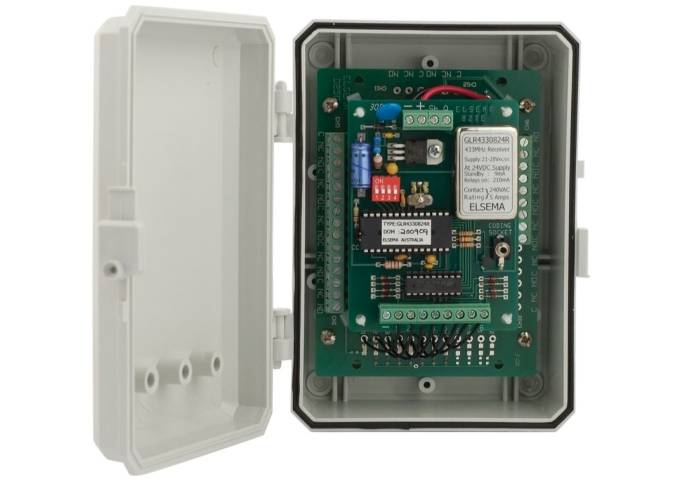

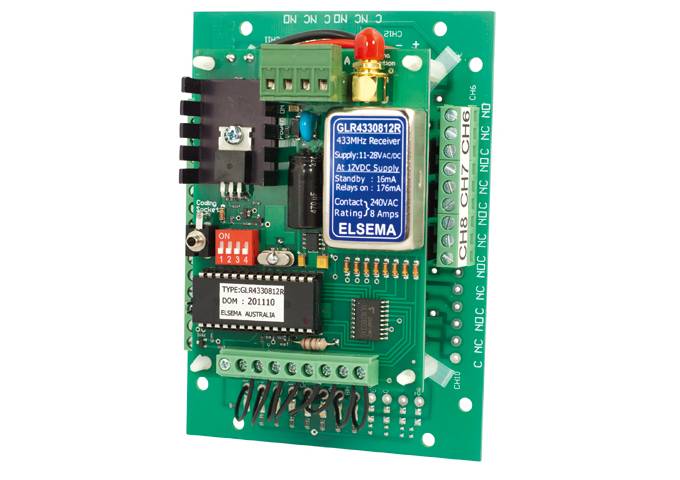

The Elsema GLR43308R is an 8-channel relay output receiver operating at 433 MHz, designed for reliable wireless control in diverse applications. Powered by 11-28V AC/DC, it supports seamless integration into various systems, including automation, security, and access control setups.
This receiver features eight independent relay outputs, providing flexible control over multiple devices simultaneously. Its robust and compact design ensures durability and ease of installation in both residential and commercial environments. The GLR43308R is fully compatible with Elsema’s 433 MHz transmitters, ensuring reliable communication and streamlined functionality.
Ideal for managing gates, doors, lighting, or equipment, it delivers efficient and cost-effective wireless control solutions.
Features:
- Eight-channel receiver with relay outputs
- Over 4 billion code combinations
- Supply voltage can be AC or DC
- Highly sensitive receiver input stage
- Crystal controlled for high reliability
- Can store an unlimited number of transmitters
- Momentary, Latching and Security Latching output modes can be selected by the user
- E-version available with C1217 case
Technical Data:
- Supply Voltage: 11.0 – 28 VAC/DC. Can use Elsema DC or AC power supply, 12PP1000 or 24PP.
- Current Consumption: 16mA standby
- Receiving Frequency: 433.920MHz (other frequencies available on request)
- Sensitivity: Better than 1 µV (for relay output to switch on)
- Antenna: Elsema ANT 433MHz series
- Dimensions: 130 x 95 x 42mm
- Useable Transmitters: All Elsema type GLT433 series
- Ideal for Industrial Automation, eg Crane Control, winches, wireless cement truck operation.
