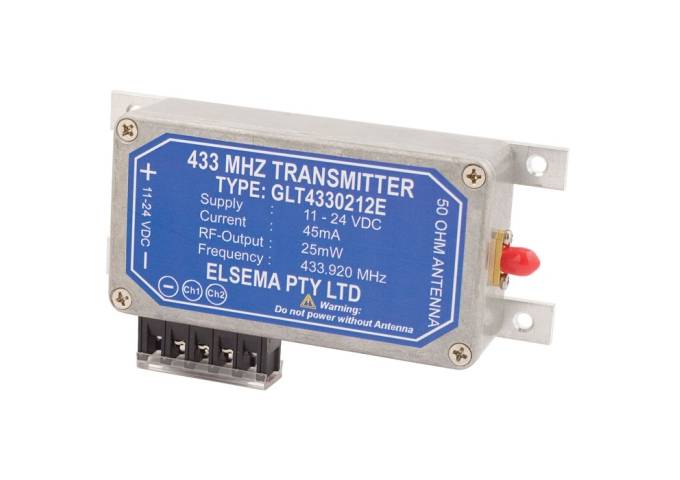

Elsema, GLT4330112E, 1 Ch Fixed loc 433MHz Gigalink TX 11-24VDC

The Elsema GLT4330112E is a 1-channel fixed-location transmitter operating at 433 MHz, designed for reliable, long-range communication. Powered by 11-24V DC, this transmitter ensures stable performance in various applications, including security systems and remote access control. Its compact design allows for easy installation in fixed locations, while its 433 MHz frequency guarantees consistent signal transmission over significant distances. The GLT4330112E is built for durability, offering reliable performance in both indoor and outdoor environments. Additionally, it integrates seamlessly into existing systems, providing enhanced control and communication capabilities. This transmitter is ideal for applications requiring dependable wireless communication.

Features:

• Available for 1, 2, 4 and 8 channel applications
• Over 4 billion code combinations
• Wire in pushbuttons or switches easily on the terminal blocks
• Built-in LED indicates transmission
• Compatible with all GLR433 series receivers
• Available with durable alloy metal case, E in the part number or no case, NC
• Selectable transmission modes, off delay, continuous and one burst

Technical Data:

• Operating range of up to 1000 metres (varies upon receiver antenna & location)
• 25mWatt 433MHz transmission.
• 20uA on standby and 45mA at 12VDC supply while transmitting
• Operating frequency: 433.920 MHz (other frequencies available on request)
• Selectable transmission modes, off delay, continuous and one burst

Application Data:

Local radio regulations limit the maximum continuous transmission time for all our transmitters to five minutes.

To activate a receiver longer than 5 minutes, use a delay-off feature in the receiver (GLR43301) and transmitter. The delay-off feature in the receiver needs to be set more than the transmitter. This ensures that the transmitter keeps resetting the off delay in the receiver.
