Elsema, GLT4330812E, 8 Ch Fixed loc 433MHz Gigalink TX 11-24VDC

Elsema, GLT4330812E, 8 Ch Fixed loc 433MHz Gigalink TX 11-24VDC

Part Number:
ELS013
SKU:  ELS013
Categories:  Elsema, Elsema Gigalink, Group-0, Wireless
Brand:  Elsema
Need help? Contact Us Now!
+61 3 9596 6688 sales@mainline.com.au
Trade pricing available via login.

Need a product not listed online? Contact our team and we’ll source it for you.

View full details

Elsema, GLT4330812E, 8 Ch Fixed loc 433MHz Gigalink TX 11-24VDC

The Elsema GLT4330812E is an 8-channel fixed-location transmitter operating at 433MHz, designed for seamless control in automation systems. Powered by an 11-24VDC supply, it is ideal for managing multiple devices like gates, doors, and lighting. Utilizing GigaLink technology, it ensures reliable, interference-free communication for secure and consistent performance.

This transmitter supports up to 8 independent channels, allowing simultaneous operations and enhancing flexibility. Its robust construction ensures durability, while the compact design makes installation straightforward. The GLT4330812E delivers exceptional functionality, catering to diverse residential, commercial, and industrial applications with ease.

These base station 433MHz GIGALINK ® transmitters can operate up to 1000 metres. These GIGALINK ® transmitters can be programmed to the 433MHz GIGALINK ® receivers. The transmitters are available with 1, 2, 4 and 8 inputs. The transmission is secure with over 4 billion code combinations.

Features:

  • Available for 1, 2, 4 and 8 channel applications
  • Over 4 billion code combinations
  • Wire in pushbuttons or switches easily on the terminal blocks
  • Built-in LED indicates transmission
  • Compatible with all GLR433 series receivers

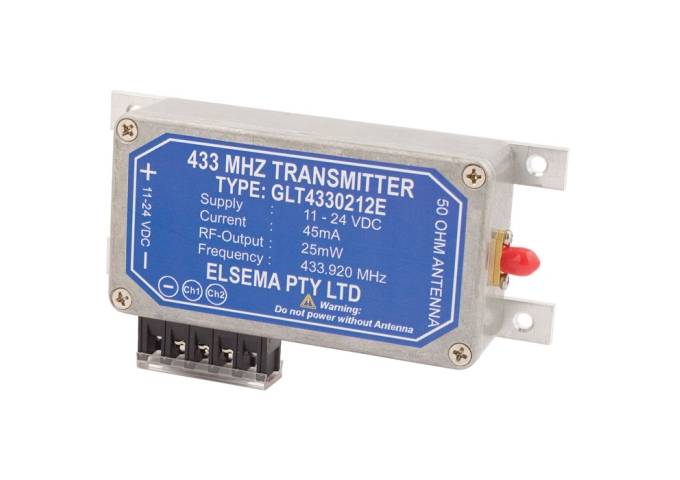

  • Available with durable alloy metal case, E in the part number or no case, NC
  • Selectable transmission modes, off delay, continuous and one burst

Technical Data:

  • Operating range of up to 1000 metres (varies upon receiver antenna & location)
  • 25mWatt 433MHz transmission.
  • 20uA on standby and 45mA at 12VDC supply while transmitting
  • Operating frequency: 433.920 MHz (other frequencies available on request)
  • Selectable transmission modes, off delay, continuous and one burst

Application Data:

Local radio regulations limit the maximum continuous transmission time for all our transmitters to five minutes.

To activate a receiver longer than 5 minutes, use a delay-off feature in the receiver (GLR43301) and transmitter. The delay-off feature in the receiver needs to be set more than the transmitter. This ensures that the transmitter keeps resetting the off delay in the receiver.
