Elsema, PCK43304W 4 Channel Pentacode High Power Transmitter with External Input

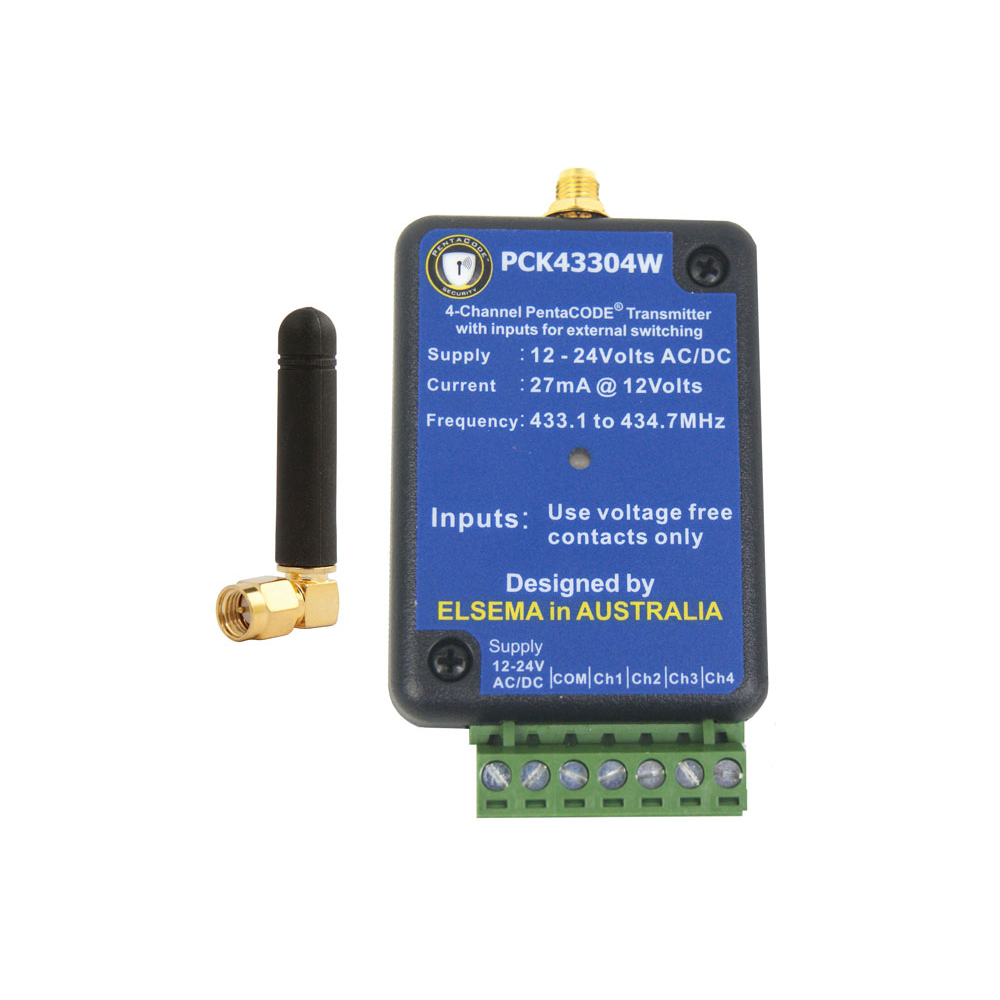

The Elsema PCK43304W is a 4-Channel Pentacode High Power Transmitter designed for reliable performance and versatile control applications. It operates on the 433MHz frequency, utilizing advanced Pentacode technology to ensure secure and interference-resistant communication. This transmitter supports four independent channels, allowing control of multiple devices or functions simultaneously.

Equipped with an external input, it offers enhanced flexibility by enabling integration with external switches or sensors, making it suitable for a wide range of automation needs. Its high-power output extends the operational range, ensuring effective communication even in larger installations. The compact and durable design ensures long-lasting performance in various environments.

The transmitter is simple to configure, reducing setup time while maintaining compatibility with existing systems. Ideal for gates, lighting, and industrial automation, the PCK43304W combines efficiency, robust design, and security to meet the demands of modern remote control systems.

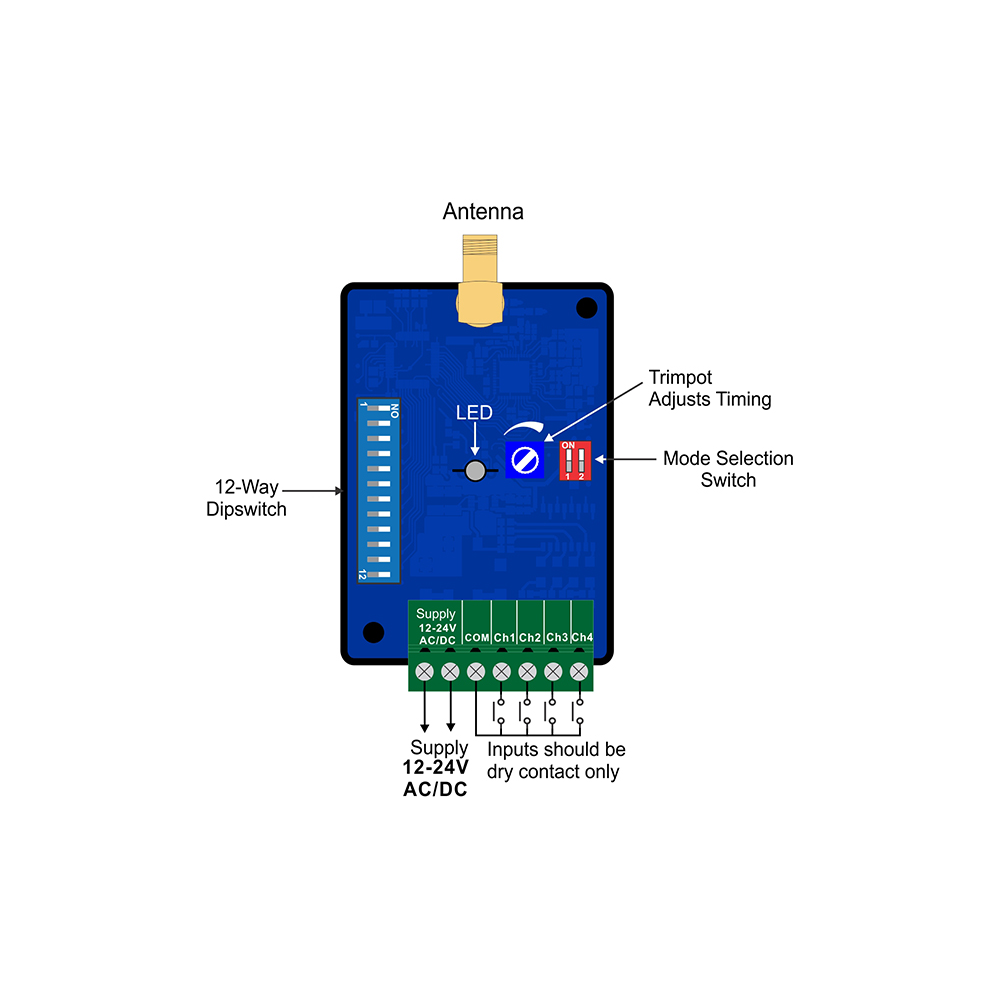

Features:

  • 12 to 24 Volts AC/DC supply
  • Operating range: 500 metres
  • 12-way dipswitch or encrypted coding
  • Four external inputs (normally open type)
  • Compatible with all Penta series receivers
  • Frequency hopping between 433.100 to 434.700 MHz
  • Wireless push button, PLC controls or anywhere else you need a wireless signal to transmit a contact closure
