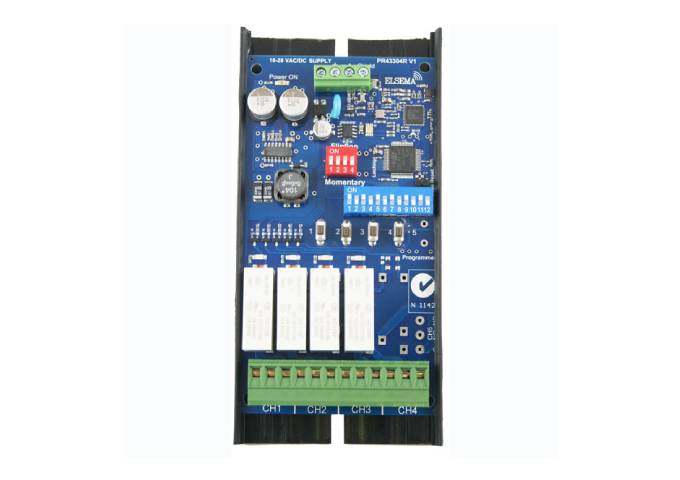

Elsema, PCR43304RE 4 Channel Penta Receiver with Relay Outputs, IP66 case & 5 Frequencies

Elsema, PCR43304RE 4 Channel Penta Receiver with Relay Outputs, IP66 case & 5 Frequencies

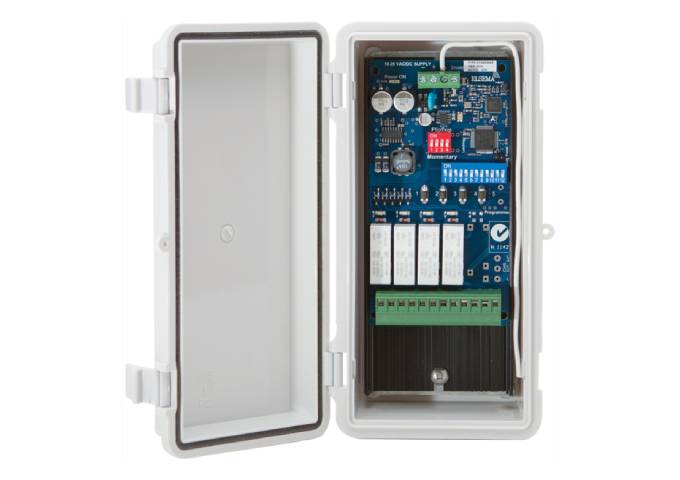

The Elsema PCR43304RE is a 4-channel penta receiver with relay outputs, housed in an IP66-rated case. It offers enhanced security with five selectable frequencies, ensuring reliable communication. This receiver suits various applications, including remote control systems, and is ideal for environments that demand durability and performance.

This receiver is compatible with “PentaFOB ^®â€ and “PentaCODE ^®â€ remotes. It has four relay outputs that can be switched “on” and “off ” independently. The relays are capable of switching loads of up to 10 Amps at 240Volts AC.

The PentaCODE ^® dual coding system gives the installer the option to use the classic 12-way dip switch coding or one of over 17 billion encrypted codes.

With the 12-way dip switch, just match the keyring remotes and the receiver’s dip switch and it’s coded. With the encrypted code, you switch all the 12-way dip switches OFF and the remote and receiver automatically go into the encrypted coding. Please see the coding instructions for the encrypted coding procedure.

Features:

• Four channel receiver with relay outputs
• 12-way dip switch coding or one of over 17 billion encrypted codes.
• Supply voltage can be AC or DC
• Antenna diversity
• Frequency hopping
• Compatible with “PentaFOB ^®â€ and “PentaCODE ^®â€ remotes
• Unlimited remotes can be programmed to the receiver
• Highly sensitive receiver input stage
• Crystal controlled for high reliability
• Modes include Momentary, latching, and security latching
• E-version available with C1020 case
• Optional QM150 bracket available for easy mounting to cases or walls

Technical Data:

• Supply Voltage: 11.0 – 28 VAC/DC. Can use Elsema DC or AC power supply, 12PP1000 or 24PP.
• Current Consumption: 19 mA standby
• Operating frequency: 433.100 to 434.700 MHz
• Sensitivity: Better than 0.316 µV (-117dBm)
• Relay Output: Four change over relay outputs, rated at 10 Amps / 240VAC
• Antenna: Elsema ANT 433MHz series
• Dimensions: 130 x 70 x 20mm
• Useable Transmitters: All Elsema type PCK433 & FOB433 series
• Ideal for Industrial Automation, eg Crane Control, winches, wireless cement truck operation.
