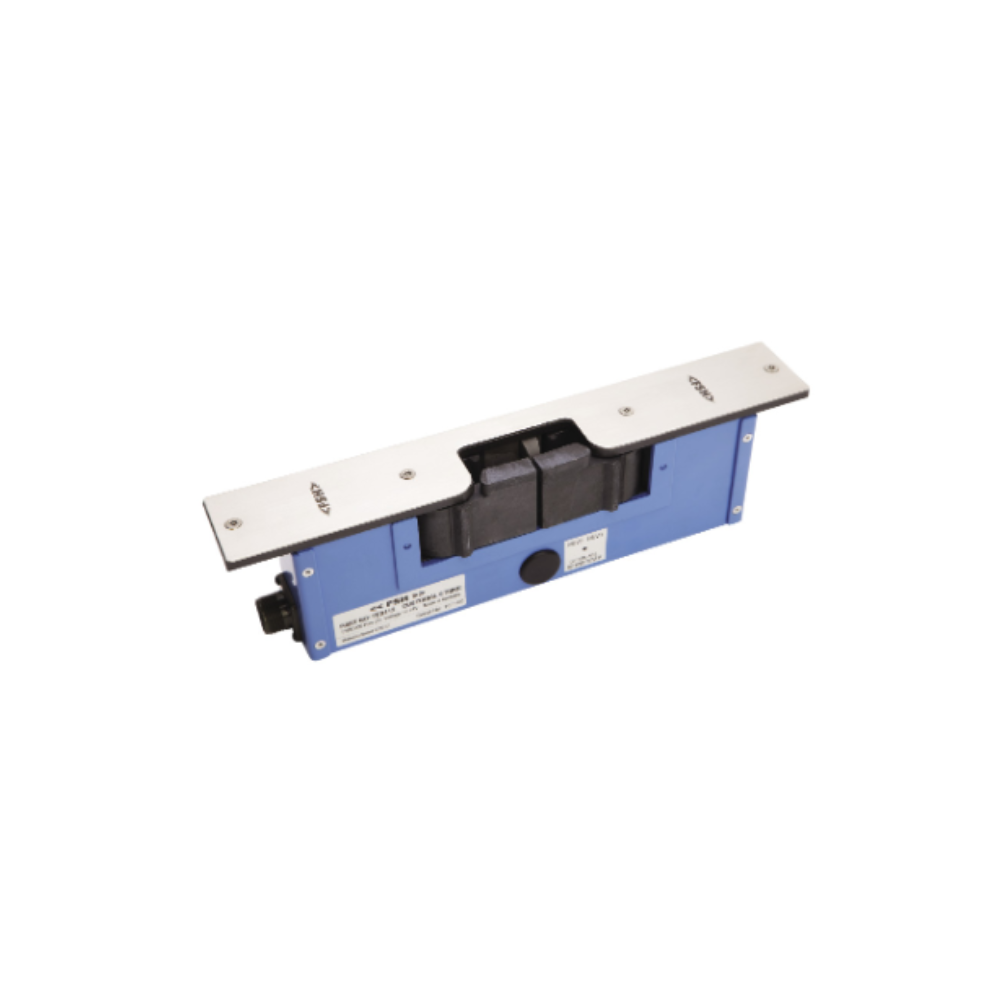

FSH FES112 High Security Electric Custodial Strike

The FES112 is purposely designed for heavy duty, high security applications where superior holding strength is required. Specifically suited for detention centres and correctional facilities where safety for all occupants is necessary.

The strike works in conjunction with a heavy-duty double throw deadlock. With holding forces in excess of 1000kg, multiple monitoring functions and multi-voltage regulation, the FES112 is the perfect locking device for a variety of high security installations and retrofit high security projects. The device is supplied with a series 2 to series 3 simple change over switch.

Series 3 configuration provides the device with door position monitoring. In this configuration, the FES112 cannot be secured until the door is in the closed position and the lock monitoring tongue is depressed.

Product Features

• Ultra-high holding force exceeds up to 1000kg
• Full monitoring (strike jaws, lock position, door position and cover plate)
• Multi Voltage operation 12-30VDC
• Smart Electronics, one lock for several applications
• Fail Secure, Power To Open (PTO) operation
• Body, high grade tooling steel hardened to 60 Rockwell
• Jaws, Molybdenum coated hardened steel
• Stainless steel faceplate and keeper
• 2 year warranty

Technical Specification
