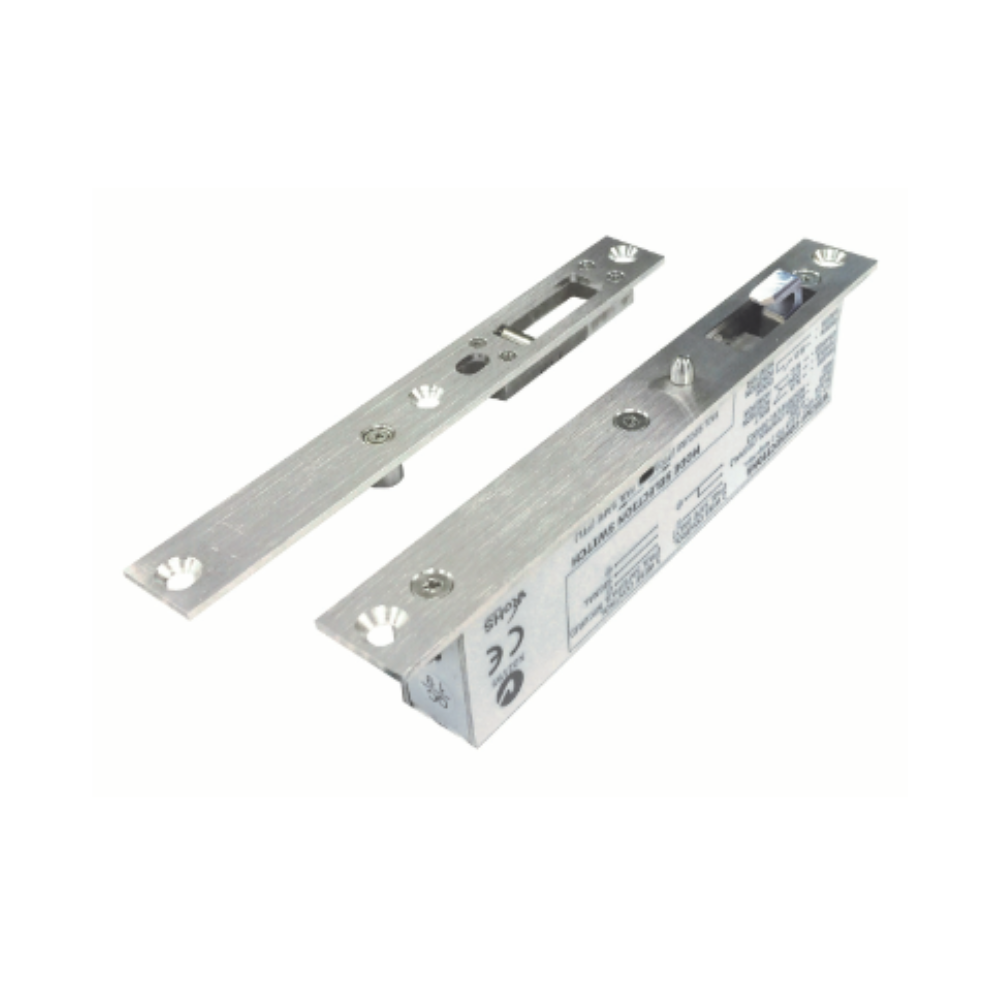

FSH HL1260 High Security Motorised Hook Lock incl. Strike Plate

The HL1260 represents a sophisticated solution for securing sliding doors with motorised hook lock technology.

This high-torque mechanism accommodates flexible installation options—either vertically within the door frame with edge-mounted strike plate, or via surface-mounted components for alternative configurations.

Power efficiency is a key advantage, drawing 290mA@12VDC during active locking and unlocking cycles, then dropping to under 15mA@12VDC in standby mode.

As the unit lacks IP rating protection, installation in sheltered environments is essential to prevent weather-related degradation.

For optimal performance and safety, operation in 3-Wire-Mode is recommended—consult the installation manual for detailed setup procedures.

Features

1. Motorised locking device
2. Durability tested to 400,000 cycles
3. Multi Voltage operation 11-30VDC
4. Sleep-Mode Current less than 15mA@12VDC
5. Fully monitored including reed switch for door position
6. Up to 650kg Holding Strength
7. 5 year warranty
8. Up to 4-hour fire rated in accordance with AS1905.1:2015 (contact Allegion for more details)
9. Conforms to S3* (Security) and D3 (Durability) Australian Lock Standard (AS4145.2 : 1993)
10. CE/C-Tick
