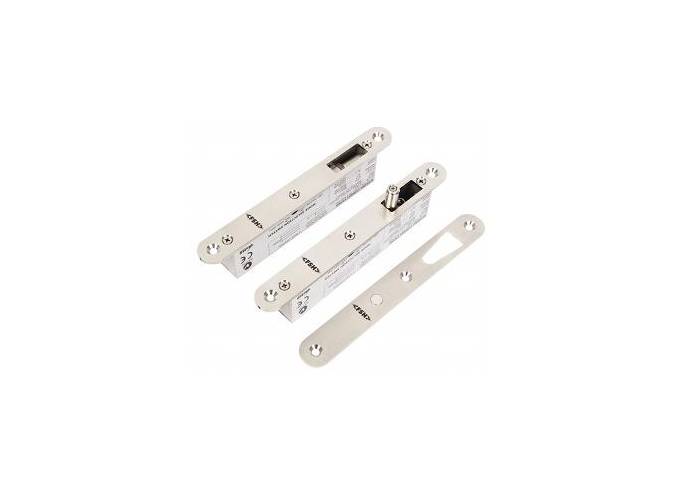

The FSH VE-1260R VE-Lock Pre-Load Drop Bolt is a robust and versatile security solution. It includes a 27mm round-edge strike plate, effectively accommodating doors with -/+4mm misalignment. Featuring patented EcoLock™ technology, this motor-driven drop bolt ensures high torque performance and tolerates up to 35kg of pre-load or sideload pressure. Its compact 25mm design is adaptable to various door types and installation requirements. Suitable for both vertical and horizontal mounting, the VE-1260R combines reliable functionality with ease of installation. Engineered for durability and precision, this drop bolt is an ideal choice for enhancing modern door security systems.
The patented EcoLock VE1260 is a high torque motor driven Drop Bolt with up to 35kg pre-load/sideload tolerance. It can be installed vertically in the door frame (lock style) or horizontally in the frame header and has a symmetric dead-bolt mechanism to allow to be used on 180° degree swing through doors.
The VE1260 is considered a “Green Product” as it consumes an inrush current of 290mA @ 12VDConly during locking and unlocking action (Active Mode), then in the locked or unlocked state (Sleep-Mode), the Drop Bolt consumes current less than15mA @ 12VDC.
A series of additional Strike Plates allow for door misalignment of up to +12mm and a retrofit version of the FSH Eco Lock is available to suit the PADDE/TRIMEC ES8000 drop bolt footprint.
An optional LED red/green indicator unit is available.
Features:
- Releases with up to 35kg of Pre-Load/Side Load
- Motorised locking device
- Durability tested to 400,000 cycles
- Multi-voltage from 12 to 30VDC
- Sleep-Mode Current less than 15mA @ 12VDC
- Fully monitored including Reed Switch for door position
- Up to 1000kg Holding Strength
- 5-year warranty
- Retrofit version for Trimec/PADDE ES8000 (VE1260S Square Edge Version)
Technical Specifications:
| PART No. | VE1260 |
| FUNCTION |
Mortice Mount, power-to-lock/power-to-release field interchangeable, up to 35kg of Pre-Load capability, unlocking and up to 6.5kg locking |
| HOLDING STRENGTH | Up to 1000kg |
| VOLTAGE/CURRENT |
Multi-Voltage 12-30VDC Active Mode: Locking/Unlocking cycle current is 0.29A to 0.85A depending on the sideload. More side load = more current. See preload vs. current graph. Sleep-Mode: After locking/unlocking the current drops down to ~0.015A (15mA) |
| APPROVALS |
CE C-Tick Fire-rated in accordance with AS1905.1.2005 Part 1 to up to 4 hours on fire door assemblies |
| MONITORING |
Lock Status Sensor of the internal locking mechanism Door Status Sensor Built-in Reed Switch, monitoring the door position |
| ENVIRONMENTAL | Operational Temperature Range -20° to +60°C |
| DURABILITY |
Exceeding Australian Standard AS4145.2-2008 400,000 operating cycles Durability D7 |
| STRENGTH |
Meeting Australian Standard AS4145.2-2008 Static Strength S8 Impact Strength S8 |
| MAXIMUM DOOR GAP | 8mm |
| DOOR MISALIGNMENT | Standard Strike Plate + 4mm Special Strike Plate up to + 12mm |
