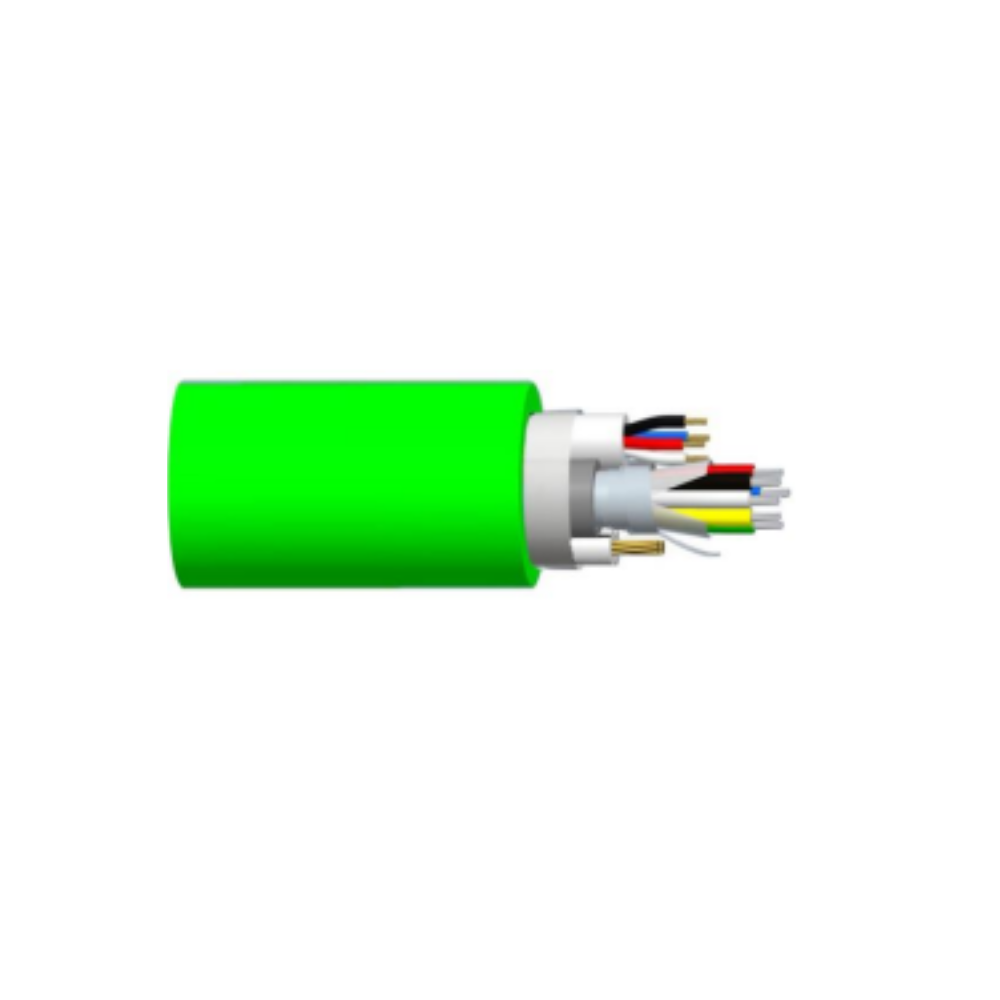

GCC2011-0408GN200 Composite Cable MC76S +MC144 +MC146+Fig 8

This comprehensive composite cable assembly combines multiple conductor configurations to meet diverse industrial and commercial applications.

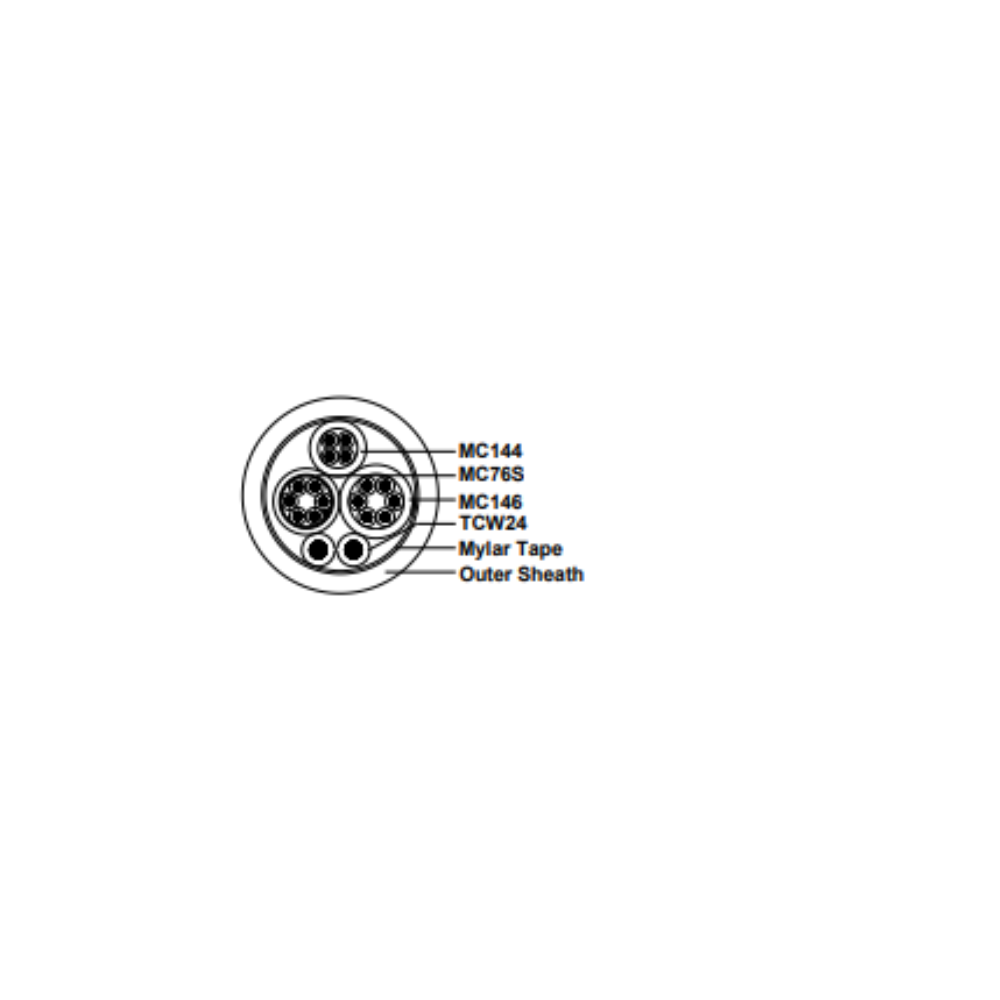

The package includes four distinct cable types:

• 4C X14/0.2 mm: a 4-core stranded 22AWG PACW cable with PVC insulation and sheath for standard signal transmission;
• 6C X14/0.2 mm: a 6-core stranded 22AWG PACW variant offering expanded capacity with identical insulation properties;
• 6C X 7/0.2mm screened: a screened 6-core configuration featuring 24AWG TACW conductors, aluminium polyester tape overall shielding, and dedicated drain wire to minimise electromagnetic interference;
• 24/0.2 mm Fig 8: a figure-8 construction cable with 19AWG PACW stranding, mylar tape reinforcement, and robust PVC outer sheath for enhanced durability.

All components are manufactured to exacting standards, complying with AS/CA S008, UL758 20098, and UL758 2468 specifications.

This multi-cable solution delivers flexibility for complex installations requiring varied conductor counts, shielding options, and mechanical configurations in a single integrated package.
