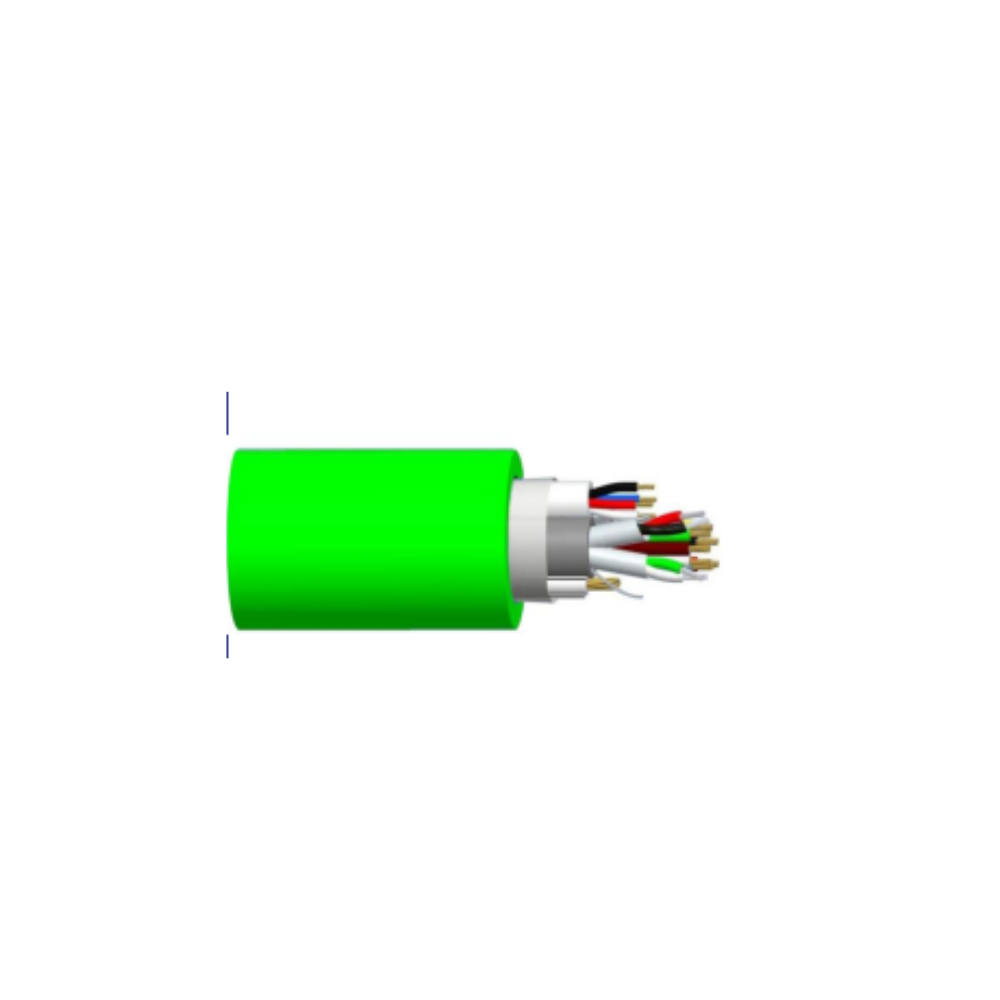

GCC2302-0080GN200 Composite Cable 2IS +MC144 + MC146 +Fig 8

The GCC2302-0080GN200 Composite Cable represents a comprehensive multi-conductor solution engineered for complex industrial control and instrumentation systems.

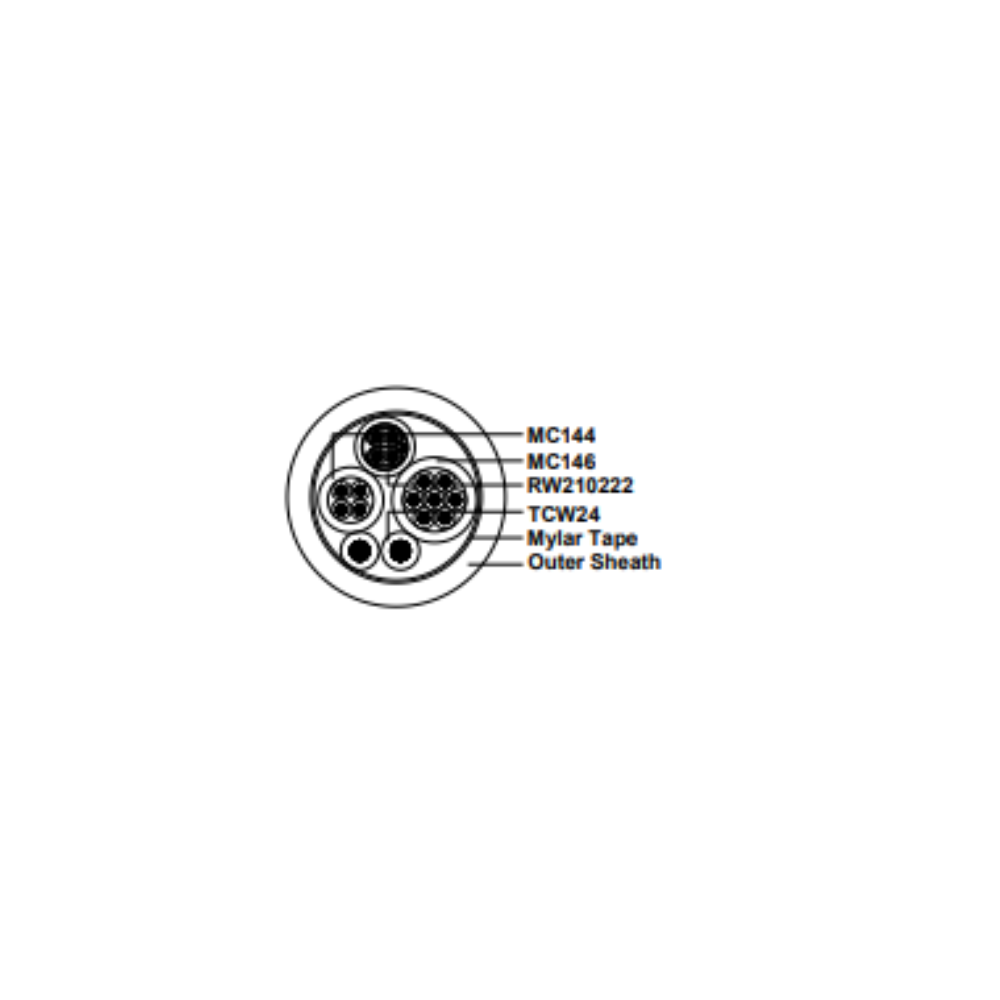

This cable integrates four distinct conductor groups:

• 4C X14/0.2 mm: a primary 4-core configuration (14/0.2mm stranded 21AWG PACW) with PVC insulation and sheath for standard power and signal transmission,
• 6C X14/0.2 mm: a secondary 6-core section (14/0.2mm stranded 21AWG PACW) offering expanded circuit capacity.
• 6C X 7/0.2mm screened: The instrumentation section features two twisted pairs (7/0.25mm stranded 22AWG TACW) with PP insulation, aluminium polyester tape screening, and a dedicated 24AWG stranded drain wire to minimize electromagnetic interference and ensure signal integrity in noise-sensitive applications.
• 24/0.2 mm Fig 8: An additional Figure 8 conductor (24/0.2mm stranded 19AWG PACW) with PVC insulation provides specialized routing flexibility. The entire assembly is protected by a robust PVC outer sheath reinforced with Mylar tape for mechanical durability and environmental resistance.

Certified to AS/CA S008, UL758 20098, UL758 20093, and UL758 2468 standards, this composite cable delivers the performance reliability required for mission-critical industrial installations where multiple transmission requirements must be consolidated efficiently.
