Guardall GS72-1 Lockwood Style With Hub Switch 12v Fail Safe

Guardall GS72-1 Lockwood Style With Hub Switch 12v Fail Safe

Part Number:
GUA003
SKU:  GUA003
Categories:  Electric Locks, Electric Mortice Locks, Guardall
Brand:  Guardall
Need help? Contact Us Now!
+61 3 9596 6688 sales@mainline.com.au
Trade pricing available via login.
View full details

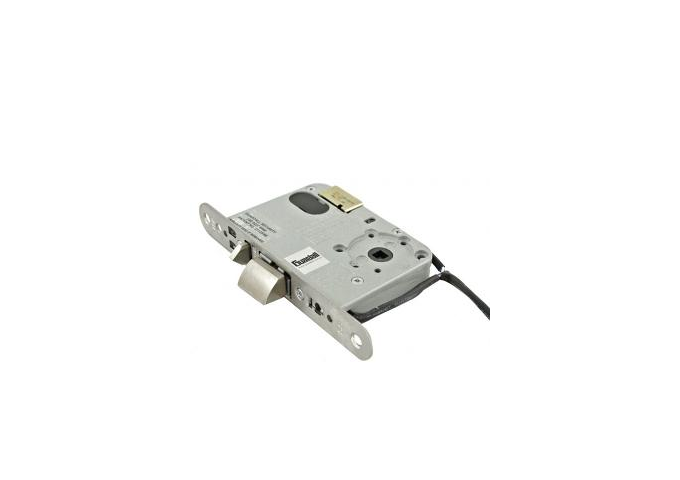

Guardall GS72-1Lockwood Style With Hub Switch 12v Fail Safe

The Guardall GS72-1, designed in the Lockwood style, is a 12V fail-safe electric mortice lock with a built-in hub switch, ideal for high-security applications. With its fail-safe feature, the lock automatically unlocks during power loss, enhancing safety by ensuring that people can exit without obstruction. Crafted for durability, the GS72-1 is well-suited for high-traffic areas and commercial facilities that demand secure and reliable access control. Its compatibility with Lockwood mortice locks makes it an excellent choice for installations where consistency in hardware style and function is essential. The integrated hub switch provides additional control and monitoring options, streamlining access management. Engineered with precision, the GS72-1 meets stringent industry standards for quality and performance, providing peace of mind with every use. This versatile and robust solution combines functionality with ease of installation, making it a preferred choice for environments requiring both safety and convenience in access control.

Voltage 12V AND 24V

  • Continually rated (Will accept intermittent power fluctuations without damage to the solenoid)
  • Low current consumption€“ 200M.A MAX VOLTS D.C. (Continuously rated)

Operation

  • The lock can be ordered with Hub Monitor, Deadlatch Monitor, and Door Status Monitor, along with Key Override.
  • Latch Bolt reversible for both left and right doors.

Door Thickness

  • Standard applications 32-50mm. Backset 60mm standard

Cylinder Assembly

  • Standard X Cam fitted to the oval cylinder assembly retracts the latch bolt
  • Standard Z Cam fitted to the oval cylinder assembly will lock and unlock handles

Features

  • No plug supplied, so easy retrofitting to existing cabling
  • Door closed and deadlatched dual monitoring giving true secured door status.
  • Key override available
