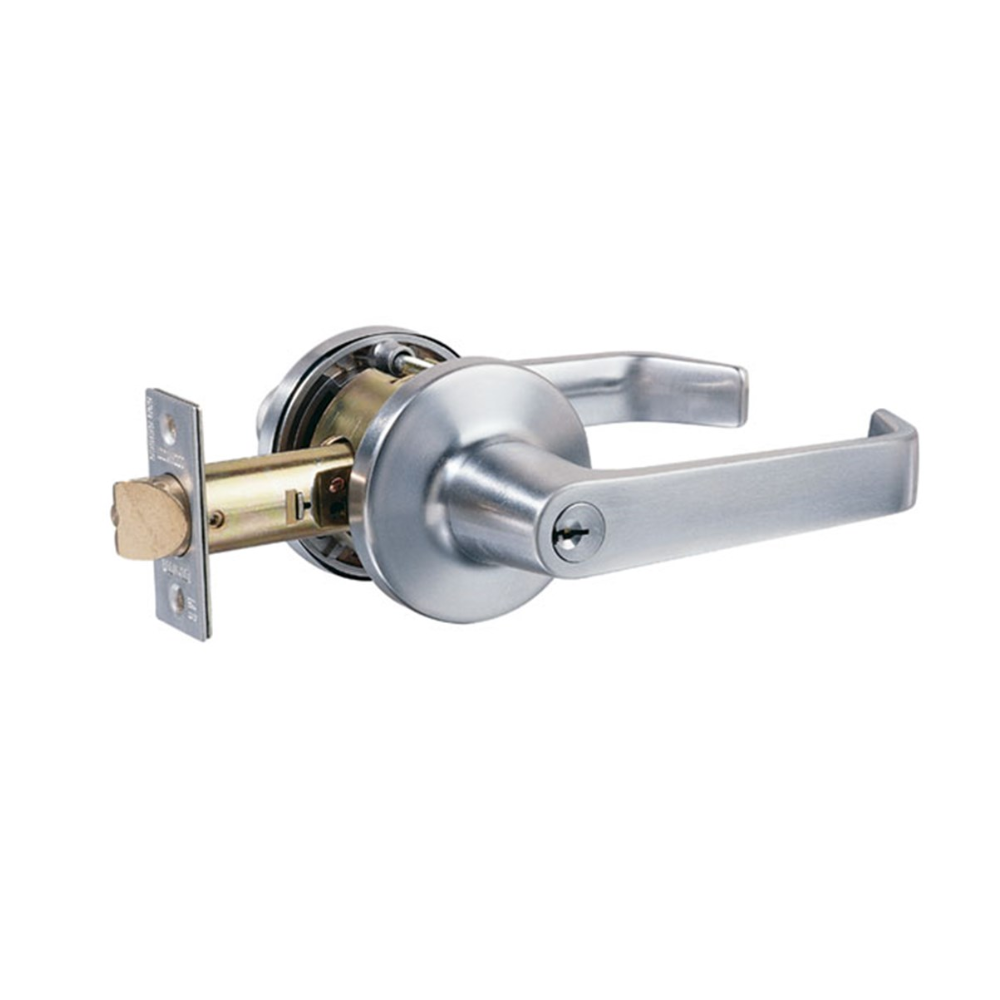

Lockwood 956SC Classroom Lever
Lockwood 956 series classroom leverset. Commercial grade.
Fire rated to 2 hours.
Classroom function
- Outside key locks and unlocks outside lever.
- Inside lever always free.
Additional info
- Commercial grade classroom leverset.
- Outside key locks and unlocks outside lever.
- Inside lever always free.
- Compatible with most restricted keying systems.
- Levers and roses made of high purity zinc alloy.
- Baffle (shroud) prevents over-tightening when installing.
- 70 mm backset standard.
- 60 mm and 127 mm latches available separately.
- Suitable for door thickness 32 - 45mm.
- Brass latch bolt with 13 mm projection.
- Fire rated to 2 hours.
- Finished in satin chrome.
|
Door thickness |
32-45 mm |
|
Backset |
70 mm |
|
max. Lever / knob projection |
52 mm |
|
Strike |
70 mm x 28.5 mm x 1.2 mm |
|
Latch |
70 mm backset |
|
Latch face plate |
57 mm x 25 mm |
|
Cylinder |
LW4 profile |
|
Door handing |
field adjustable |
|
Rose |
65 mm |
Technical Specifications
|
Brand |
LOCKWOOD |
|
AS1428.1 Compliant Lever (AS1428.1CO) |
No |
|
Clutching Levers |
No |
|
Finish |
Satin Chrome |
|
Function |
Classroom |
|
Lock Grade |
Commercial |
|
Lock Type |
Tiebolt |
|
Rose Diameter (in mm) |
65 |
|
Suits Door Thickness |
32 mm to 45 mm |
|
Backset |
70 mm |
|
Fire Rated |
Yes |
