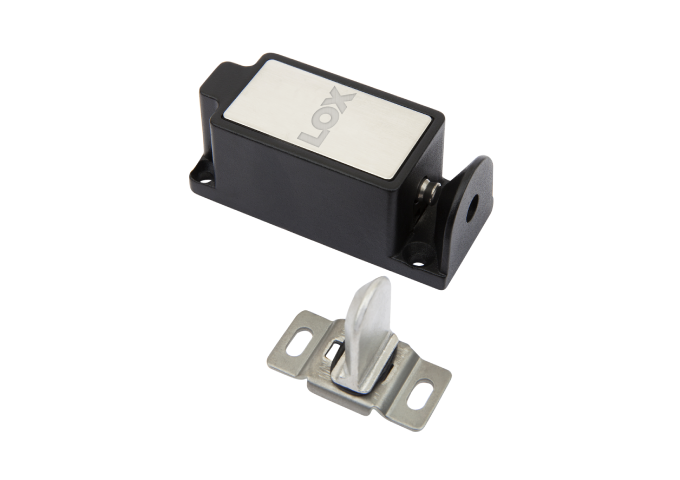

LOX, CL001 Cabinet Lock 12/24VDC
The LOX CL001 Cabinet Lock offers a monitored 12/24VDC solution designed for secure access control in various environments. This lock enhances security by providing real-time monitoring of its status, ensuring that only authorized personnel can access protected cabinets. With flexible voltage compatibility, it can operate on either 12V or 24V DC power sources, making it adaptable to different systems. The lock’s robust construction ensures durability, providing long-term, reliable performance even in demanding environments. Additionally, it features an easy installation process, which simplifies integration into existing security setups. It is ideal for use in sensitive areas such as data centers, server rooms, and storage cabinets, where secure and monitored access is critical. This lock also helps streamline operations, preventing unauthorized access and reducing the risk of tampering or theft. Overall, the LOX CL002 provides a reliable and efficient solution for maintaining cabinet security in diverse applications.
Features:
- Small size
- Power To Lock/Power To Release changeover
- Full monitoring DSS/LSS
- 12 or 24VDC
- Up to 150kg holding force
- 5-year warranty
Technical Specifications:
| PART No. | CL0001 |
| FUNCTION | Surface mount cabinet/Locker electric lock |
| HOLDING STRENGTH | Up to 150kg |
| VOLTAGE/CURRENT | 12VDC/190mA 24VDC/90mA |
| MONITORING | N/A |

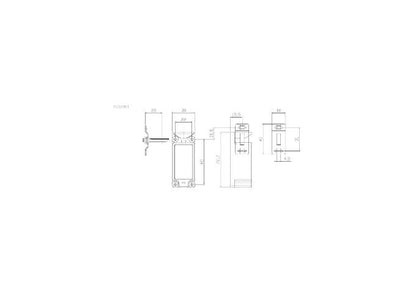

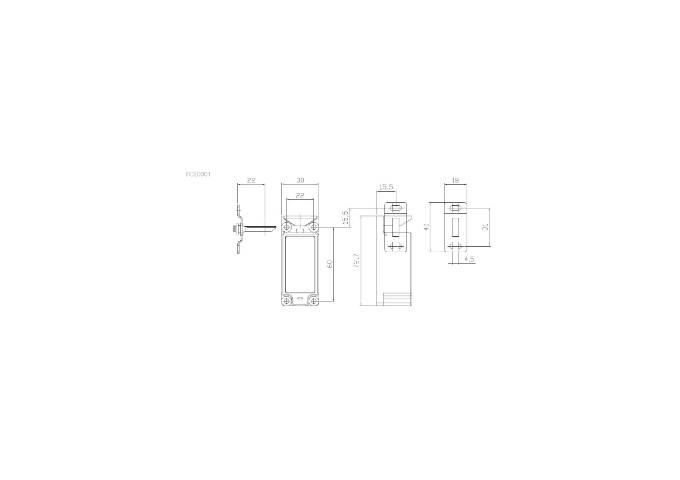

| SIZE | L= 72.7 x W= 28.8 x D= 28.5mm |
