LOX, EM3500DM-BLK, EM3500DM Black Double Door 12/24V Monitored 280kg
LOX, EM3500DM-BLK, EM3500DM Black Double Door 12/24V Monitored 280kg
LOX, EM3500DM-BLK, EM3500DM Black Double Door 12/24V Monitored 280kg

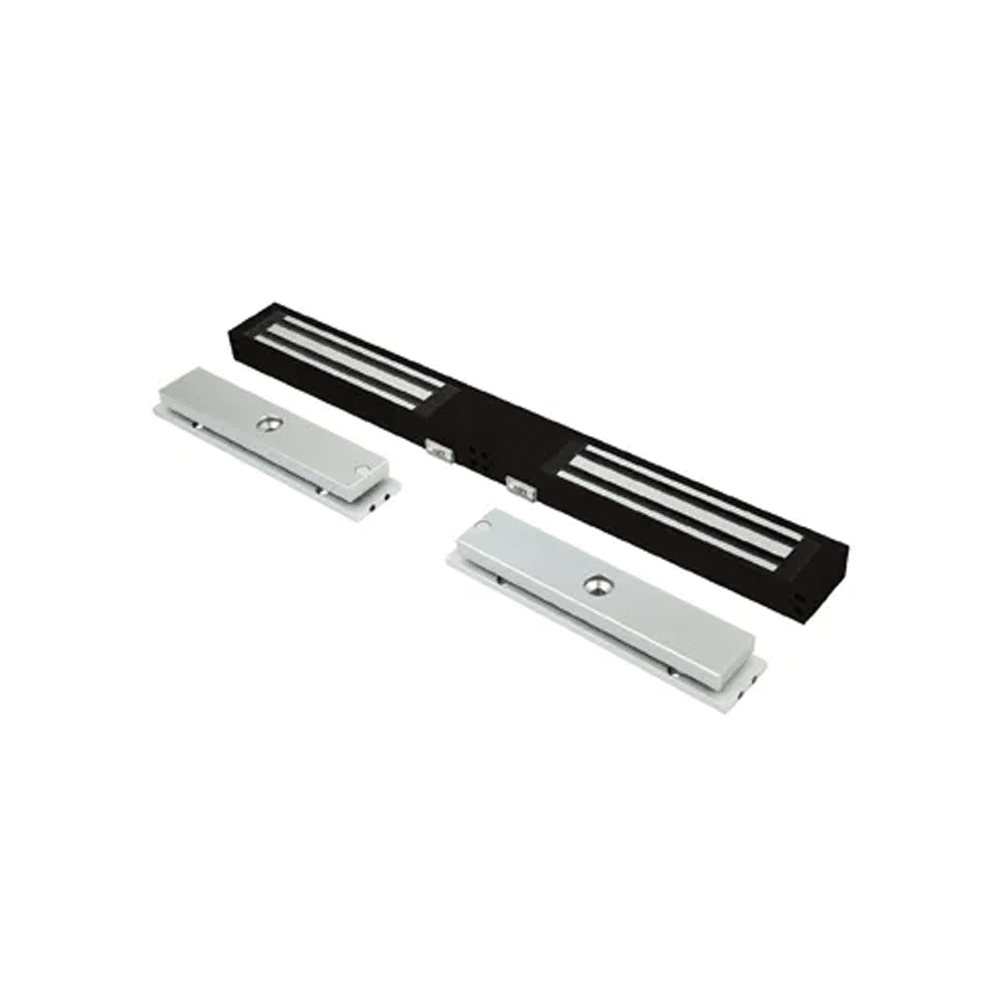

The LOX EM3500DM-BLK is a high-performance black double door magnetic lock, designed for secure access control. It operates at 12/24V and delivers a holding force of 280kg, providing reliable security for entrances. This lock is equipped with monitoring capabilities, ensuring that door status can be easily checked for optimal functionality. Ideal for use in commercial and industrial settings, it features a sleek black design that seamlessly blends into modern environments. The EM3500DM-BLK offers enhanced durability, easy installation, and efficient operation, making it a trusted solution for double-door access control systems.
The LOX EM3500D Series product line is a comprehensive Electro Magnetic Lock range with up to 280kg holding force. It is one of the most reliable and most successful Electro Magnetic Locks in the Australian market.
The Monitored Magnetic Locks have:
- A built-in Hall Effect Sensor for monitoring the lock/ unlock status of the locking device (LSS – Lock Status Sensor)
- A built-in reed switch contact for monitoring the open/closed status of the door (DSS – Door Status Sensor)
- Highly visible red/green LED Status Light

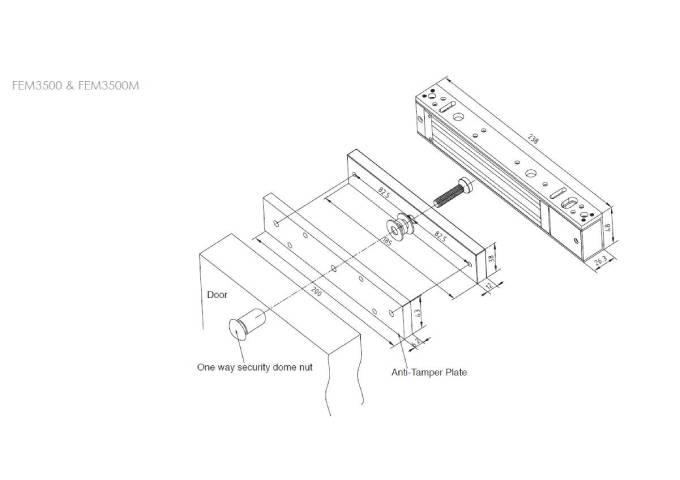

- Anti-Tamper-Fixing-Plate (monitored version only) to avoid hostile attacks targeted on the dome-nut-fixing bolt of the Armature Plate
Specifications:
| EM3500D | Double Electro Magnetic Lock Non Monitored |
| EM3500M | Double Electro Magnetic Lock Monitored |
| HOLDING STRENGTH | Up to 280kg, Tested to 1 Million Cycles |
| VOLTAGE/CURRENT | Dual voltage 12/24VDC 12VDC = 530mA 24VDC = 260mA x 2 |
| APPROVALS | Up to 4-hour fire rated to A.S Standard, CE & C-TICK |
| LSS MONITORING | LSS Lock Status Sensor (Hall Effect) |
| DSS MONITORING | Door status Sensor (Reed Switch) |
| LED LIGHT STATUS | LED Light Status Indicates Locked or Unlocked Status |
| ENVIRONMENTAL | Operational Temperature Range - 20 deg . C to 60 deg . C. |
