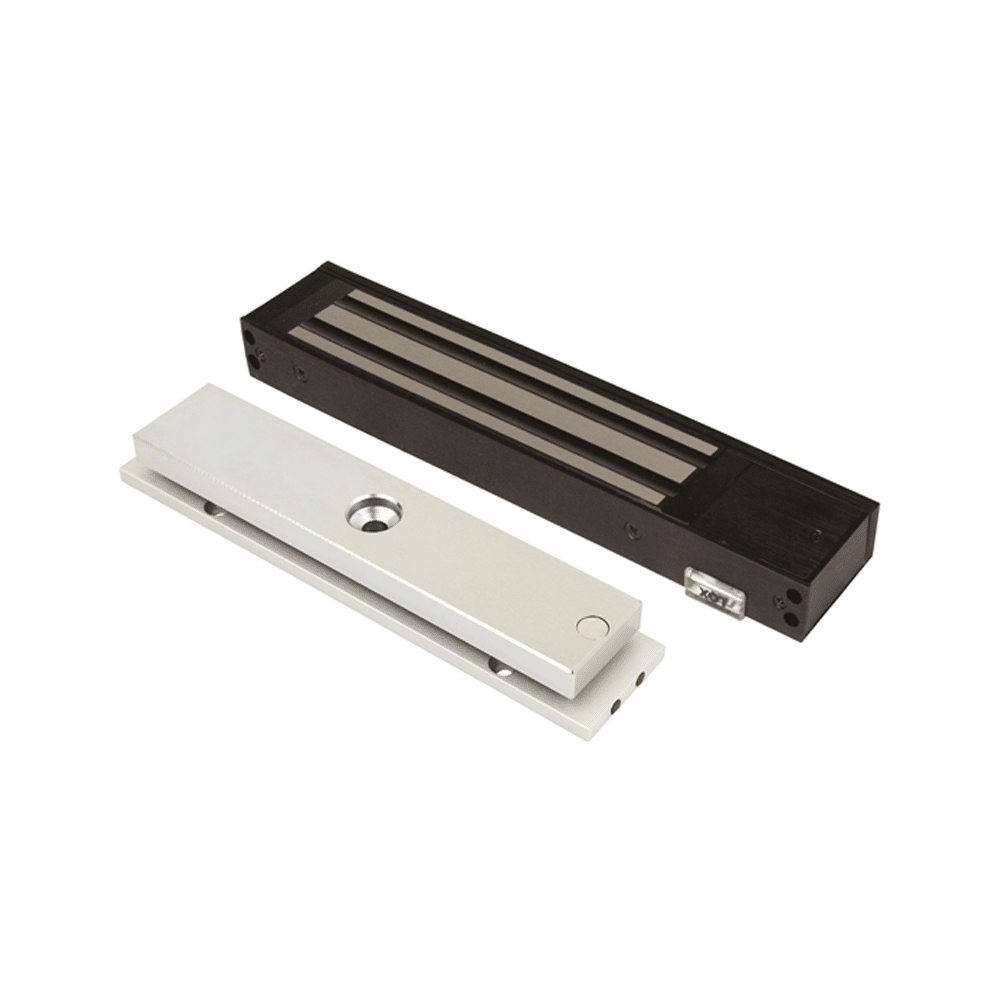

LOX, EM3500M-BLK, EM3500M Black Magnetic Lock Monitored 280kg
LOX, EM3500M-BLK, EM3500M Black Magnetic Lock Monitored 280kg
LOX, EM3500M-BLK, EM3500M Black Magnetic Lock Monitored 280kg
The LOX EM3500M-BLK is a high-quality black magnetic lock designed to provide secure access control. With a holding force of 280kg, it ensures reliable and effective locking for doors in commercial and industrial environments. This monitored version offers enhanced functionality, allowing real-time monitoring of door status for improved security management. Operating at 12/24V, the EM3500M-BLK integrates easily into most access control systems. Its sleek black finish complements modern architectural designs, while the durable construction guarantees long-term performance. This magnetic lock is ideal for use in a variety of applications where security and reliability are paramount.
The LOX EM3500 Series product line is a comprehensive Electro Magnetic Lock range with up to 280kg holding force. It is one of the most reliable and most successful Electro Magnetic Locks in the Australian market.
The Monitored Magnetic Locks have:
- A built-in Hall Effect Sensor for monitoring the lock/unlock status of the locking device (LSS – Lock Status Sensor)
- A built-in reed switch contact for monitoring the open/closed status of the door (DSS – Door Status Sensor)
- Highly visible red/green LED Status Light

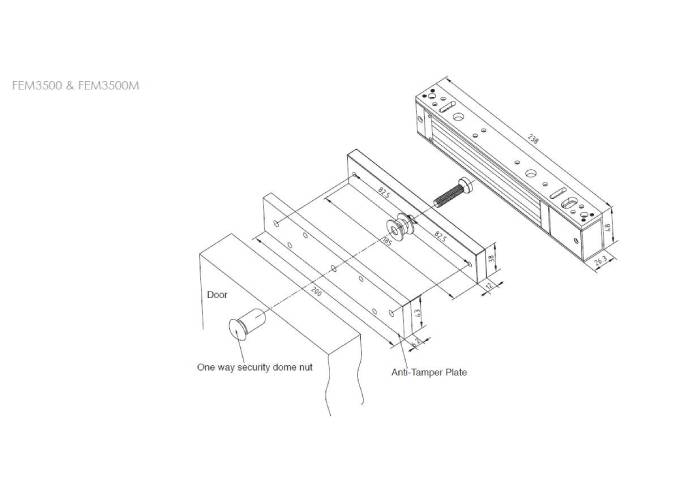

- Anti-Tamper-Fixing-Plate (monitored version only) to avoid hostile attacks targeted on the dome-nut-fixing bolt of the Armature Plate
Specifications:
| EM3500 | Single Electro Magnetic Lock Non Monitored |
| EM3500M | Single Electro Magnetic Lock Monitored |
| HOLDING STRENGTH | Up to 280kg, Tested to 1 Million Cycles |
| VOLTAGE/CURRENT | Dual voltage 12/24VDC 12VDC = 530mA 24VDC = 260mA |
| APPROVALS | Up to 4-hour fire rated to A.S Standard, CE & C-TICK |
| LSS MONITORING | LSS Lock Status Sensor (Hall Effect) |
| DSS MONITORING | Door status Sensor (Reed Switch) |
| LED LIGHT STATUS | LED Light Status Indicates Locked or Unlocked Status |
| ENVIRONMENTAL | Operational Temperature Range - 20 deg . C to 60 deg . C. |
