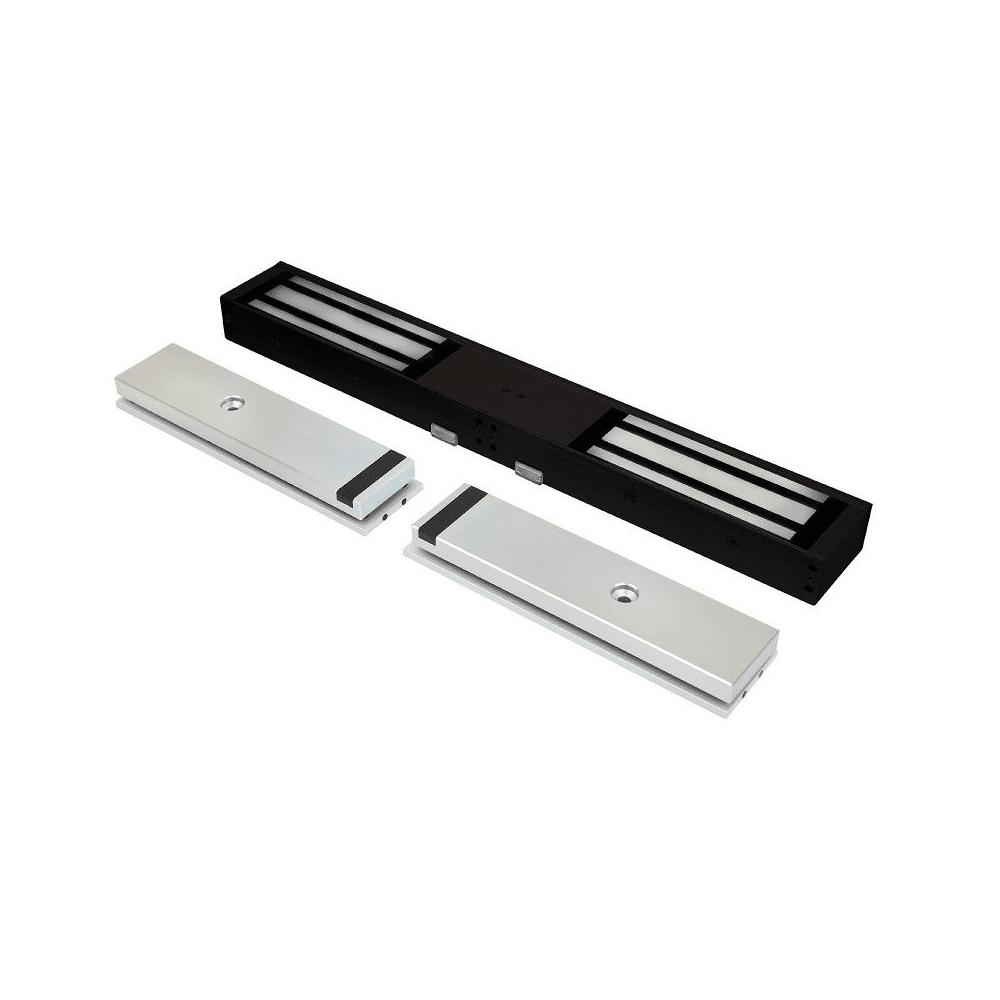

LOX, EM5700DM-BLK, EM5700DM Black Double Mag Lock 580kg
LOX, EM5700DM-BLK, EM5700DM Black Double Mag Lock 580kg
LOX, EM5700DM-BLK, EM5700DM Black Double Mag Lock 580kg
The LOX EM5700DM-BLK Black Double Mag Lock is a robust and reliable access control solution designed for high-security applications. With an impressive holding force of 580kg, this double mag lock ensures superior strength and stability, safeguarding entry points effectively. Its sleek black finish not only enhances durability but also complements modern architectural designs seamlessly. Engineered for versatility, it supports double-door setups, making it ideal for commercial, industrial, and institutional use. Easy to install and maintain, the EM5700DM-BLK minimizes downtime while maximizing efficiency. With advanced performance and dependable operation, this mag lock is the perfect choice for demanding security environments.
The LOX EM5700D Series product line is a comprehensive Electro Magnetic Lock range with up to 580kg holding force. It is one of the most reliable and most successful Electro Magnetic Locks in the Australian market in this product category.
The Monitored Magnetic Locks have:
- A built-in Hall Effect Sensor for monitoring the lock/ unlock status of the locking device (LSS – Lock Status Sensor)
- A built-in reed switch contact for monitoring the open/closed status of the door (DSS – Door Status Sensor)
- Highly visible red/green LED Status Light

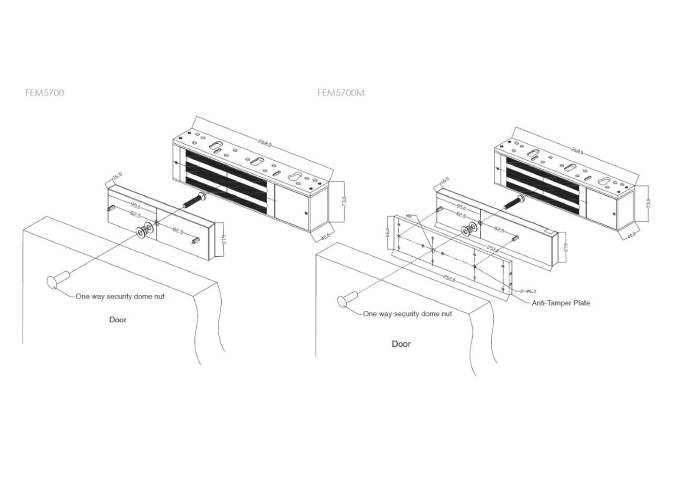

- Anti-Tamper-Fixing-Plate (with monitored version) to avoid hostile attacks targeted on the dome-nut-fixing bolt of the Armature Plate
Specifications:
| EM5700D | Double Electro Magnetic Lock Non Monitored |
| EM5700DM | Double Electro Magnetic Lock Monitored |
| HOLDING STRENGTH | Up to 580kg, Tested to 1 Million Cycles |
| VOLTAGE/CURRENT | Dual voltage 12/24VDC 12VDC = 500mA x 2 24VDC = 260mA x 2 |
| APPROVALS | Up to 4-hour fire rated to A.S Standard, CE & C-TICK |
| LSS MONITORING | LSS Lock Status Sensor (Hall Effect) |
| DSS MONITORING | Door status Sensor (Reed Switch) |
| LED LIGHT STATUS | LED Light Status Indicates Locked or Unlocked Status |
| ENVIRONMENTAL | Operational Temperature Range - 20 deg . C to 60 deg . C. |
