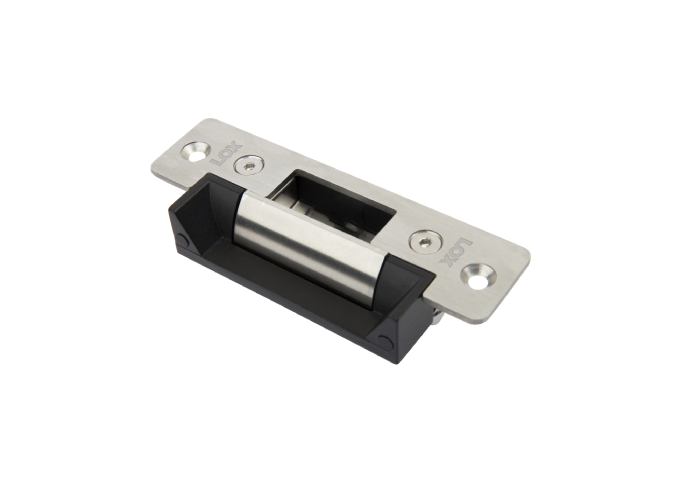

LOX, ES10 (ES110) Electric Strike, ES10 Series, Light Commercial and Residential Electric Strikes - ANSI Footprint
LOX, ES10 (ES110) Electric Strike, ES10 Series, Light Commercial and Residential Electric Strikes - ANSI Footprint
Need a product not listed online? Contact our team and we’ll source it for you.
View full details
The LOX ES10 Series ANSI Electric Door Strikes is one of the most successful residential & light commercial Electric Strike products in Australia. It is a dual voltage product accepting voltages of either 12 or 24VDC. The LOX ES10 Series Electric Strikes are site interchangeable from Fail-Secure to Fail Safe (Power to Release to Power to Lock) by only using a small screw-driver.
The ES10 Series Strikes are designed to be morticed into a door frame on a single swing door equipped with either a mortice lock or a cylindrical tongue lock. the LOX ES10 Series Strikes are pre-drilled to accommodate for extension lips, come with a 5-year warranty and have a holding strength of up to 1200kg.
The monitored ES10M version comes with Door Status Sensor (door latch monitoring).
The non-monitored ES10 version is weather resistant IP56 rated.
ES10: Facts:
- ES10 Weather Resistant (IP56)
- ES10M monitored version available (not weather resistant)
- 5 year warranty
- Simple Power To Lock/Power To Release interchange
- Pre-drilled for extension lips
- Dual-Voltage: 12 or 24VDC
- Fire rated
Specifications:
| ES10 | ANSI Profile Non Monitored Door Strike. Mortice Mount, Power to Lock/Power to Open Field Selectable & IP Rated |
| ES10M | Monitored Version of the ES10 Non Weather Resistant |
| HOLDING STRENGTH | Up to 1200kg Tested 1 million Cycles |
| VOLTAGE/CURRENT | Dual volta ge 12/24VDC 12VDC = 200mA 24VDC = 100mA |
| APPROVALS | Up to 4-hour fire rated to A.S Standard, CE & C-TICK |
| DSS MONITORING | Door Latch Sensor, Door Latch Engaged Within Strike Keeper ES10M Version |
| IP RATING | ES10 Version IP56 ES10M Version Not Weather Resistant |
| ENVIRONMENTAL | Operational Temperature Range - 20 deg . C to 60 deg . C. |
