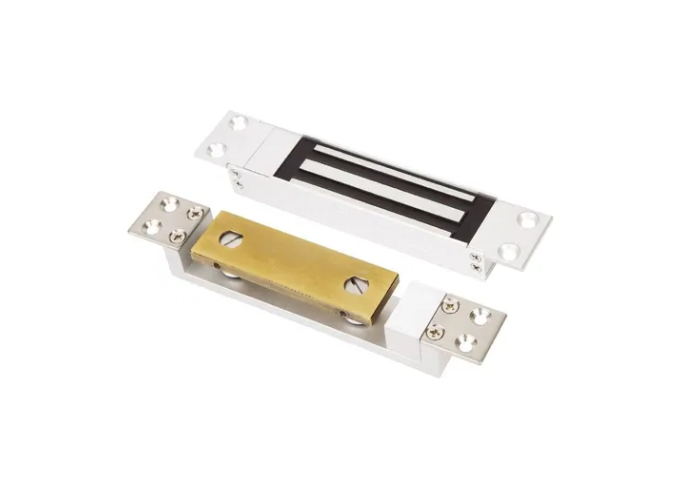

LOX, SH2500 Shear Lock
The LOX SH2500 Shear Lock offers a high-security solution for door access control, designed to provide robust protection. It features a unique shear-lock mechanism that ensures a secure and tamper-resistant connection between the armature plate and the lock itself. This mechanism allows for easy installation and seamless integration into various security systems. Operating on 12/24VDC, the SH2500 is adaptable to most standard access control systems, providing versatility in its applications. Its sturdy, weather-resistant construction ensures long-lasting reliability, making it suitable for both indoor and outdoor use. The shear lock also incorporates advanced features like status monitoring, allowing users to track the lock’s position and condition in real time. Additionally, it provides a high holding force, effectively preventing unauthorized access while maintaining ease of use for authorized personnel. Whether installed in commercial or industrial settings, the LOX SH2500 Shear Lock enhances security with durability and efficiency.
Features of LOX SH2500
- Up to 250kg shear holding force.
- Lock status monitoring.
- LED indicator.
- 2 year warranty.
- Low holding current.
- Voltage 12vdc @ 1A (in rush) 200mA (normal) 24vdc @ 0.5A, 100mA.
- Multi Voltage 12 to 24VDC.
- Dimension magnet 166 (L) x 31 (W) x 21 mm (D).
- Dimension armature plate 166 (L) x 26 (W) x 31 mm (D)
- 4 hour fire rated.
Technical Specifications:
|
PART No. |
SH2500 |
| HOLDING STRENGTH< |
Up to 250kg holding force |
|
VOLTAGE/CURRENT |
at 12VDC x 1A(in-rush) 200mA(normal) at 24VDC x 0.5A ‘100mA’ |
|
MONITORING |
Lock Status Sensor LED indicator |
| SIZE |
Shear Locks series magnet size: L= 166 x W= 31 x D= 21mm Shear Locks series armature plate size: L= 166 x W= 26 x D= 31mm |
