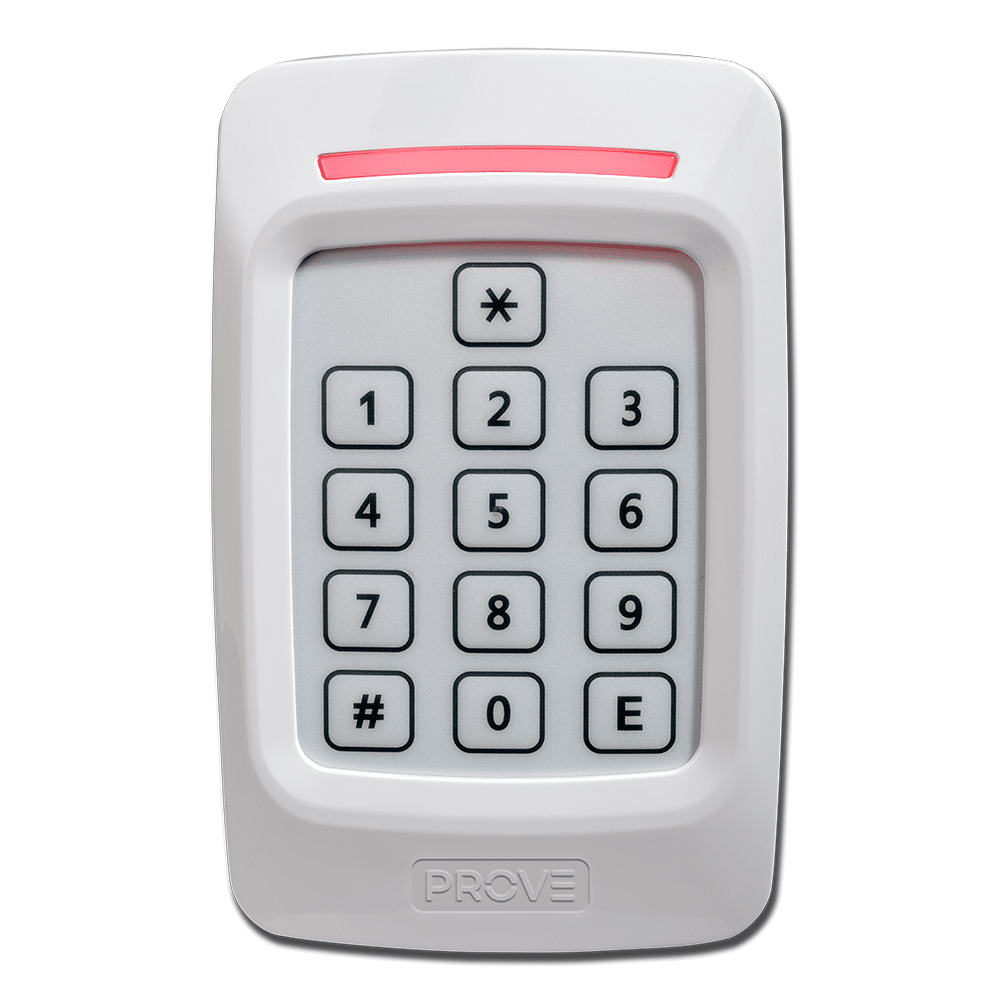

NIDAC NPE-PSC2 Prove Indoor Keypad & Prox Reader Series 2

NIDAC NPE-PSC2 Prove Indoor Keypad & Prox Reader Series 2

The NIDAC NPE-PSC2 Prove Indoor Keypad & Prox Reader Series 2 offers an efficient solution for secure access control. Designed for indoor use, it combines a keypad and proximity reader in one device, simplifying installations. This unit supports standard Wiegand formats and provides audible and visual feedback upon card reading. With a compact design, it fits seamlessly into various environments. The keypad operates on 12V DC, ensuring compatibility with a wide range of systems. Overall, it enhances security while maintaining user-friendly functionality.

Features

• Up to 20cm read range
• Automatically senses required output type
• Configured for enhanced Wiegand compatibility, suitable to replace and upgrade legacy Wiegand only readers
• In Presco mode the reader can be connected through low cost unshielded cable up to a kilometer away from the controller
• Audio and visual feedback for all inputs

Suitable for domestic and commercial use

19 million possible combinations

Locator pip for visually impaired

Compatible with Presco and Prescient controllers

Each unit factory tested with 5 year warranty included

Australian design, manufacture and support

Specs

• Operating voltage: 9 - 14 Volts D.C.
• Operating current: 150 mA. max
• Operating temperature: 0°C to 50°C
• Read range: Up to 20cm (8â€)
• Frequency: 125± 5 kHz
• Wiegand output:
  • Pulse width: 50μs
  • Pulse separation: 2ms
• Dimensions: 126mm x 80mm x 17.5mm
• Weight: 145g

Note: Not compatible with pre existing Presco installations configured in Wiegand mode
