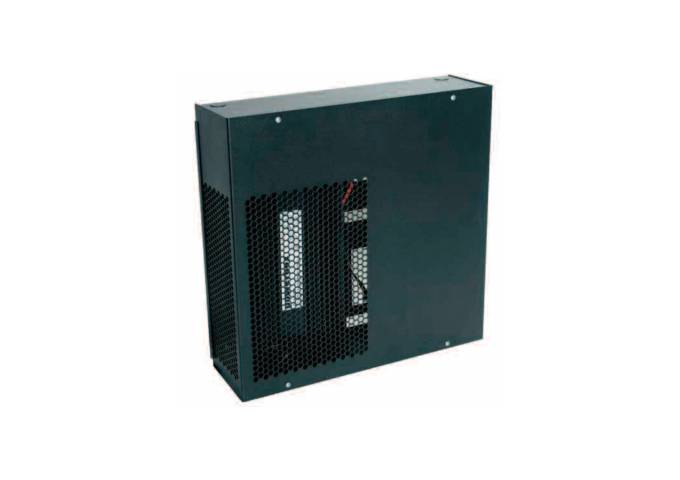

Powerbox, WMBCS Grey Cabinet with Tamper Switch

Powerbox, WMBCS Grey Cabinet with Tamper Switch

Part Number:
POW830
Product Brochure
Trade pricing available via login.
View full details

Powerbox, WMBCS Grey Cabinet with Tamper Switch

The Powerbox, WMBCS Grey Cabinet features dimensions of 110H x 370W x 360L, designed to accommodate batteries ranging from 7AH to 17AH, along with any selected Powerbox supplies model. This cabinet includes a tamper switch for added security, ensuring that your equipment remains protected. Additionally, its compact and efficient design makes it suitable for various applications, providing users with reliable storage for their power systems while facilitating easy access and installation. Overall, it combines functionality with security, making it an excellent choice for power management needs.

Features:

  • Security Cabinet
  • Wall Mount Enclosure
  • Vented Cabinet 375 x 362 x 111.5mm
  • Accepts Battery Chargers PBB2S. PB256. PB251A
  • Accepts Batteries 7AH to 17AH
  • Flexible 2 x GPO cut outs
  • Tamper switch
  • Battery cable options

Specifications:

Battery Chargers supported
  • PBB2S Series, 12Vdc, 73W - 97W
  • PB256 Series, 12Vdc, 24Vdc, 38W
  • PB251A Series, 12Vdc, 24Vdc, 220W - 330W
Tamper Switch
  • Included
Dimensions
  • 375 x 362 x 111.5mm
Mounting Brackets
  • Power Supply Mounting brackets are included
Battery Configurations
  • Following battery configurations are supported
    • 1 x 12V 7Ah (150 x 65 x 101mm)
    • 1 x 12V 12Ah (155 x 98 x 101mm)
    • 1 x 12V 17Ah (181 x 76 x 176mm)
    • 2 x 12V 7Ah
