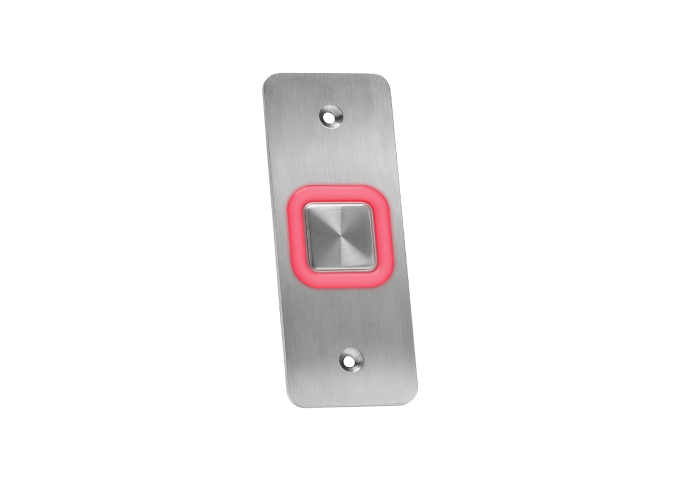

Rosslare, EX1700 Mullion IP65 illuminated Piezo Rex -Blank Button

Rosslare, EX1700 Mullion IP65 illuminated Piezo Rex “Blank” Button

The Rosslare EX1700 Mullion IP65 Illuminated Piezo Rex “Blank” Button is a versatile, weather-resistant solution for access control in challenging environments. Its IP65-rated, illuminated piezo design ensures visibility and durability, even in harsh conditions, making it suitable for both indoor and outdoor applications. The blank label offers customization flexibility, allowing users to adapt it to various control needs. Engineered for long-lasting performance, this button withstands dust, water, and impact, ensuring reliable functionality with minimal maintenance. The EX1700 seamlessly integrates into security systems, providing a robust and efficient option for high-traffic access points.

Rosslare’s EX-17 is a heavy-duty, non-sparking, non-magnetic, corrosion-resistant, illuminated, anti-vandal, timed digital switch, designed for both indoor and outdoor use. It features solid-state Piezoelectric Switch Technology generating two isolated Form C output relays with no physical movement or moving parts. Among its many features are: Jumper selectable illumination status with light dimming option, buzzer mode, full dual-relay output, timed operation and relay toggle option.

The EX-17 mounts directly to a standard US size gang switchbox and is crafted to the highest manufacturing standards out of the finest materials under Rosslare’s ISO 9001:2008 Certified.

Specifications:

• Advanced soft-touch piezoelectric switch
• New weatherproof design – water and dustproof, grease, oil and other chemical solvent repellents
•  Vandal-resistant
• Stainless steel mounting plate and tactile button with no moving parts
• Mounting Method Single Gang: Mounts directly to a US gang switchbox
• Backed by Rosslare’s International Guarantee and service with ISO9001 (Certified TÜV Rhineland) level business and manufacturing operations
• Non-sparking, non-magnetic, corrosion-resistant
• Light square status indicator and accidental activation hindrance
•  Adjustable Output and Led indication time of 1 to 60 seconds
•  Output and an indication toggle option
• Jumper selectable illumination status: red, green, or no illumination
• Built-in buzzer with alarm input and sound upon button press options
• Two separate full form-C relay outputs for separate application wiring: N.O. and N.C.
• Input for external lighting alerts for evacuation and other applications
• 12-24 VDC/VAC
• Suitable for indoor and outdoor use (meets IP-65)
