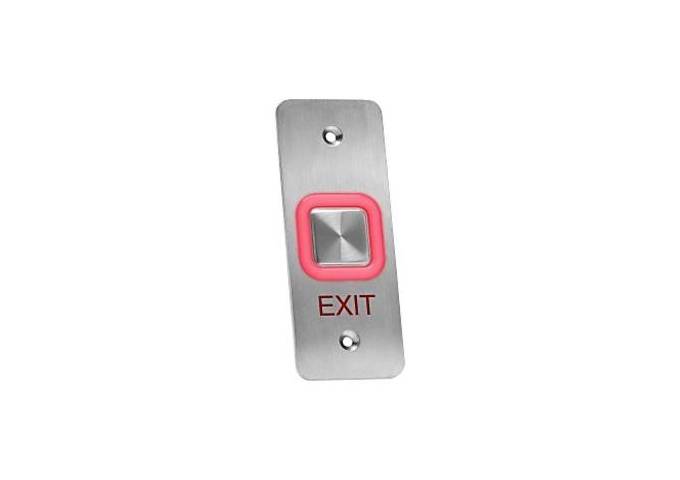

Rosslare, EX17E0 Mullion IP65, Illuminated Piezo Rex, -EXIT Button

Rosslare, EX17E0 Mullion IP65, Illuminated Piezo Rex, “EXIT” Button

The Rosslare EX17E0 IP65 Illuminated Piezo “EXIT” Button offers durable, weather-resistant access control with easy visibility, ideal for indoor or outdoor use.

Rosslare’s EX-17 is a heavy-duty, non-sparking, non-magnetic, corrosion-resistant, illuminated, anti-vandal, timed digital switch, designed for both indoor and outdoor use. It features solid-state Piezoelectric Switch Technology generating two isolated Form C output relays with no physical movement or moving parts. Among its many features are: Jumper selectable illumination status with light dimming option, buzzer mode, full dual-relay output, timed operation and relay toggle option.

The EX-17 mounts directly to a standard US size gang switch box and is crafted to the highest manufacturing standards out of the finest materials under Rosslare’s ISO 9001:2008 Certified.

Specifications:

• Advanced soft-touch piezoelectric switch
• New weatherproof design – water and dustproof, grease, oil and other chemical solvent repellents
•  Vandal-resistant
• Stainless steel mounting plate and tactile button with no moving parts
• Mounting Method Single Gang: Mounts directly to a US gang switchbox
• Backed by Rosslare’s International Guarantee and service with ISO9001 (Certified TÜV Rhineland) level business and manufacturing operations
• Non-sparking, non-magnetic, corrosion-resistant
• Light square status indicator and accidental activation hindrance
•  Adjustable Output and Led indication time of 1 to 60 seconds
•  Output and an indication toggle option
• Jumper selectable illumination status: red, green, or no illumination
• Built-in buzzer with alarm input and sound upon button press options
• Two separate full form-C relay outputs for separate application wiring: N.O. and N.C.
• Input for external lighting alerts for evacuation and other applications
• 12-24 VDC/VAC
• Suitable for indoor and outdoor use (meets IP-65)
