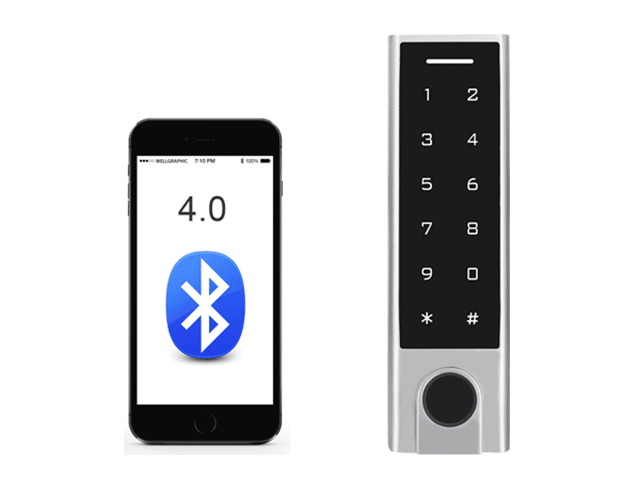

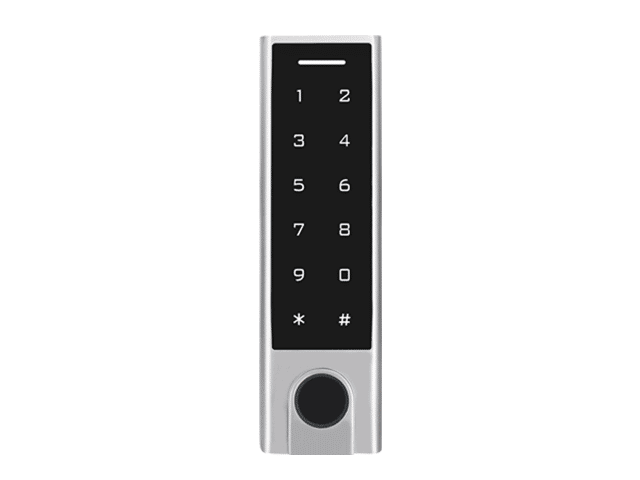

Secukey HF3-BT Bluetooth Touch-Key Access Controller

Secukey HF3-BT Bluetooth Touch-Key Access Controller

Part Number:
SEC133
SKU:  SEC133
Categories:  Access Control Systems, Fingerprint Readers, Secukey
Brand:  Secukey
Need help? Contact Us Now!
+61 3 9596 6688 sales@mainline.com.au
Trade pricing available via login.
View full details

Secukey HF3-BT Bluetooth Touch-Key Access Controller

The HF3-BT Bluetooth Touch-Key Access Controller is a compact, waterproof security device that supports fingerprint, keypad, and EM card access. It connects via Bluetooth using the Tuya app for remote management, making it easy to control access to doors or secure areas. The controller is ideal for homes, offices, and other secure environments. The HF3-BT is a waterproof access controller with Bluetooth, offering fingerprint, keypad, and EM card entry. It supports Tuya app integration for easy remote access control.

Below are the features of Secukey HF3-BT Bluetooth Touch-Key Access Controller

  • Capacitive Fingerprint Sensor, touch keypad
  • Waterproof, conforms to IP66
  • Metal housing, anti-vandal
  • Card type:EM Card or Mifare Card
  • iOS and Android available
  • Add / Delete users by APP
  • Support checking Opening Record
  • Support Gateway
  • Multiple Access Modes: Smartphone, Fingerprint, Card, PIN

Here are the benefits of using the Secukey HF3-BT Bluetooth Touch-Key Access Controller:

  1. Multiple Access Methods: Supports fingerprint, keypad, and EM card access, offering flexibility for users.
  2. Bluetooth Connectivity: Allows remote access control and management via the Tuya app, providing convenience for monitoring and configuring.
  3. Waterproof Design: Durable and weather-resistant, making it suitable for both indoor and outdoor use.
  4. Enhanced Security: Biometric fingerprint technology ensures high-level security by limiting access to authorized users.
  5. Easy Installation: Compact design with simple setup, making it user-friendly and efficient to install.
  6. Remote Management: Control and monitor access from anywhere using your smartphone, adding convenience for homeowners or businesses.
  7. Low Power Consumption: Designed to be energy-efficient, reducing maintenance and operational costs.
  8. Versatile Applications: Suitable for homes, offices, and secure areas, providing a reliable access control solution for various environments.

Overall, these features make the HF3-BT a secure, flexible, and convenient choice for access control. It ease the life of the users.

User Capacity Common User
Visitor User
Panic User		 Hardware User: 1000 APP User: 100(including 255 fingerprint / card/ PIN users) 988 (100 Fingerprint Users + 888 PIN/Card Users) 10
2
PIN Length 4~6 digits
Operating Voltage Idle Current
Active Current		 12~18V DC ¢€°¤ 60mA
¢€°¤ 150mA
Proximity Card Reader
Radio Technlogy
Read Range		 EM or Mifare
125KHz/13.56MHz
2~6cm
Wiring Connections Relay output, exit button, alarm, door contact, Wiegand input/output
Relay
Adjustable Relay Output Time
Lock Output Load		 One (NO, NC, Common)
0~99 Seconds (5 seconds default)
2 Amp Maximum

Wiegand Interface

PIN Output

EM card version: Wiegand 26~44 bits input & output(Factory default: Wiegand 26bits)

Mifare card version:Wiegand 26~44 bits,56bits,58bits input & output(Factory default: Wiegand 34bits)

4 bits,8bits (ASCII),10 digits Virtual Number(Factory default:4bits)
Environment
Operating Temperature
Operating Humidity		 Meets IP66
-30°C ~ 60°C (-22°F ~ 140°F)
0%RH ~ 98%RH
Physical Colour
Dimensions
Unit Weight
Shipping Weight		 Zinc-Alloy
Sliver & Black
L148x W43.5x H22(mm)
330g
405g

width=

width=

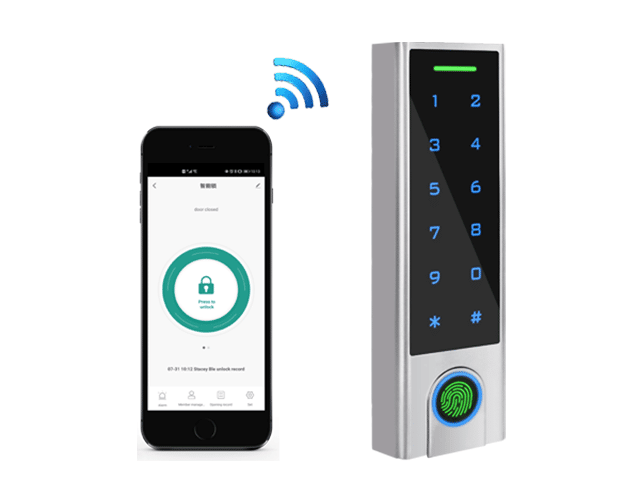

TheHF3-BT is a Bluetooth-enabled waterproof touch keypad + fingerprint + RFID access controller. It's integrated withTuya which supports 100 users (including 255 fingerprint / card/ PIN users). It's available for both iOS and Android.
