Secukey, K4, Standalone Metal Backlit Pin & Prox Card

Secukey, K4, Standalone Metal Backlit Pin & Prox Card

Part Number:
SEC030
SKU:  SEC030
Categories:  Access Control Systems, Secukey, Standalone Keypads
Brand:  Secukey
Need help? Contact Us Now!
+61 3 9596 6688 sales@mainline.com.au
Trade pricing available via login.
View full details

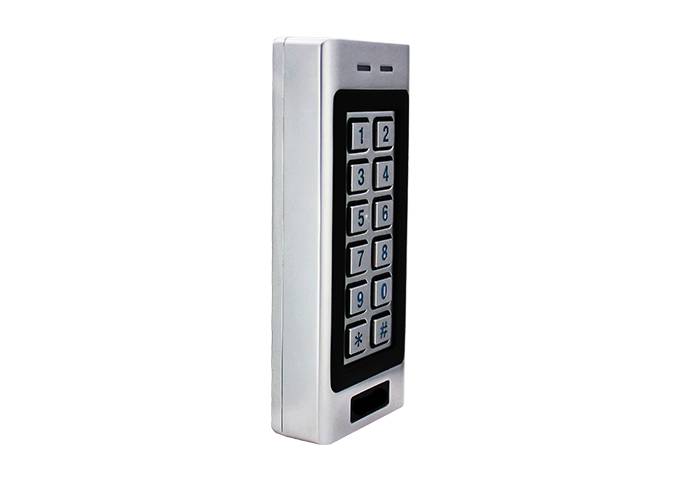

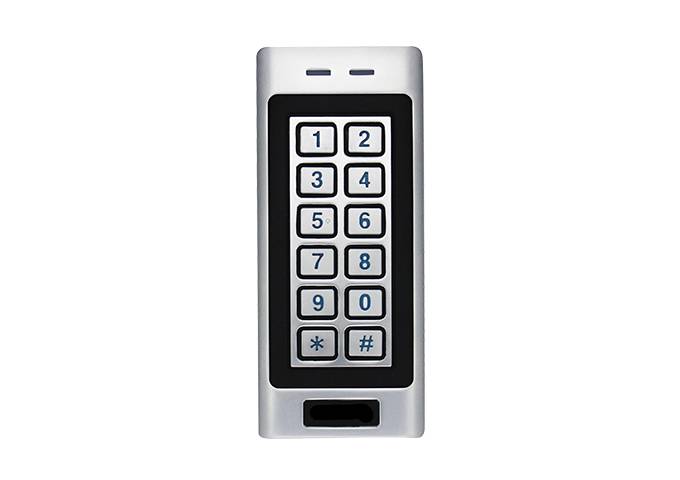

Secukey, K4, Standalone Metal Backlit Pin & Prox Card

The Secukey K4 Standalone Metal Backlit Pin & Prox Card access control device combines robust construction with advanced functionality, making it a versatile solution for secure entry systems. Its durable metal housing ensures reliability and vandal resistance, allowing installation in both indoor and outdoor environments. The device supports dual authentication methods, enabling access through PIN codes, proximity cards, or a combination of both for heightened security.

With a backlit keypad, the K4 facilitates effortless operation in low-light conditions, improving user convenience. The system can accommodate up to 2,000 users, making it suitable for small to medium-sized facilities. It operates as a standalone unit, eliminating the need for additional controllers, and is compatible with 125kHz EM proximity cards.

Easy to program via the keypad, the K4 offers flexible access configurations, ensuring it meets various security requirements. Its straightforward installation and reliable performance make it an excellent choice for enhancing access control systems.

Easy Keypad

  • Metal case, backlit keypad
  • One relay, 1000 users (990 Normal Users + 10 Visitor Users)
  • 3 access modes: Card, PIN, Card + PIN
  • Card type: 125KHz EM card
  • PIN length: 4~6 digits
  • Anti-tamper alarm
  • K4 is a single entry standalone Access Control with integrated keypad and card reader.
  • It is an easy to install and operate device, design in as less as 6 wires for mounting.

Specifications

User Capacity 1000 Cards/PINS (990 Normal Users + 10 Visitor Users)
Operating Voltage
Idle Current
Active Current 		9~18V DC
50mA
80mA
Keypad 12 Key (2*6)
Proximity Card Reader
Radio Technology
Read Range 		EM
125 KHz Industry Standard Proximity Card
2-6 cm
Wiring Connections Relay Output, Exit Button
Relay
Adjustable Relay Output Time
Lock Output Load 		One (NO, NC, Common)
0-99 Seconds (5 seconds default)
3 Amp Maximum
Environment
Operating Temperature
Operating Humidity 		Indoor
-30 °C~ 60 °C (-40 °F ~ 140 °F)
20%RH-85%RH
Physical
Surface Finish
Dimensions
Unit Weight
Shipping Weighh 		Zinc-Alloy Enclosure
Powder Coat
13.0L x 5.6W x 2.3H (cm)
500g
650g
