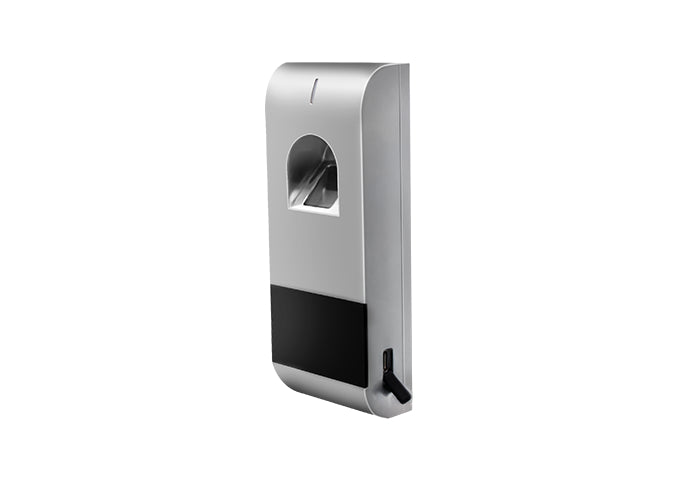

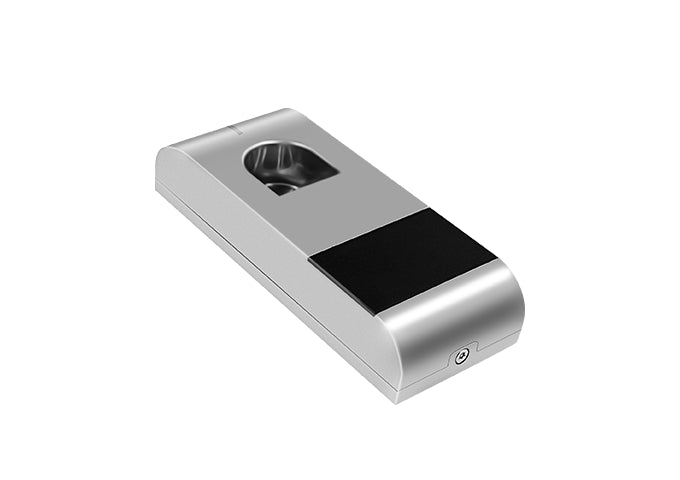

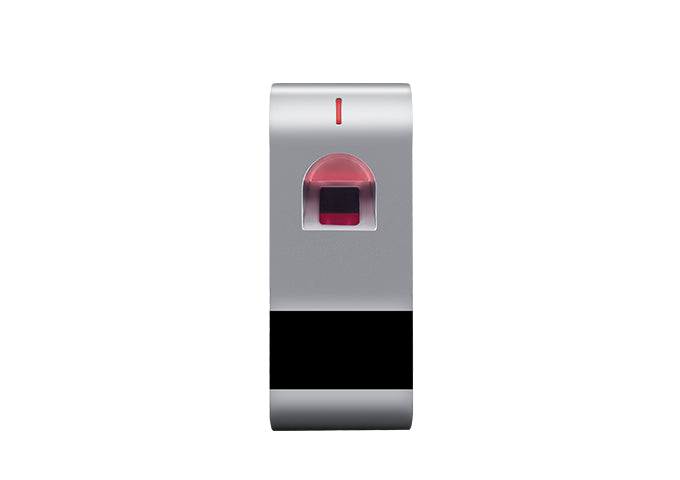

Secukey, SF3-MF, Waterproof Access Control Reader (Mifare)

Secukey, SF3-MF, Waterproof Access Control Reader (Mifare)

Part Number:
SEC055
SKU:  SEC055
Categories:  Access Control Systems, Card Readers, Secukey
Brand:  Secukey
Need help? Contact Us Now!
+61 3 9596 6688 sales@mainline.com.au
Trade pricing available via login.
View full details

Secukey, SF3-MF, Waterproof Access Control Reader (Mifare)

The Secukey SF3-MF is a reliable waterproof access control reader designed for secure and efficient access management using Mifare technology. Its robust, weather-resistant construction ensures dependable performance in both indoor and outdoor environments, making it suitable for a wide range of applications.

This reader supports Mifare credentials, providing enhanced security and compatibility with modern access control systems. Its compact and sleek design allows for easy installation on doors, gates, or other access points.

Additionally, the SF3-MF offers seamless integration with standard access controllers via its Wiegand output, delivering a versatile and user-friendly solution for streamlined security management.

Waterproof Access Control Reader (Mifare)

  • Waterproof, up to IP66
  • Metal Design & Anti-Vandal
  • Standalone, one relay
  • 1,000 fingerprint, 2,000 card users
  • Card type: 13.56MHz Mifare card
  • Wiegand 26~44 output
  • Pulse mode, toggle mode
  • Multi fingerprints/cards access
  • Interlock, Support Principal User
  • Support upload/ download users by APP

Specifications

User Capacity
Fingerprint
Card 		3000
1000
2000
Operating Voltage
Idle Current 		12V DC
< 45mA
Proximity Card Reader
Radio Technology
Read Range 		Mifare
13.56MHz Mifare tag/card
1~2 cm
Fingerprint Reader
Resolution
Identification time
FAR
FRR 		Optical Fingerprint Module
500DPI
<1S
<0.01%
<0.1%
Wiring Connections Relay output, exit button, alarm, door contact, Wiegand output
Relay
Adjustable Relay Output Time
Lock Output Load 		One (NO, NC, Common)
0~99 Seconds (5 seconds default)
2 Amp Maximum
Wiegand Interface Wiegand 26~44bits output
Environment
Operating Temperature

Operating Humidity 		Meets IP66
-30 °C ~ 60 °C (-22 °F ~ 140 °F)--Default
-40 °C ~ 60 °C (-40 °F ~ 140 °F)--Optional
10%RH ~ 99%RH
Physical
Color
Dimensions
Unit Weight
Shipping Weight 		Zinc-Alloy
Silver
L135 x W55 x H26 (mm)
480g
500g
