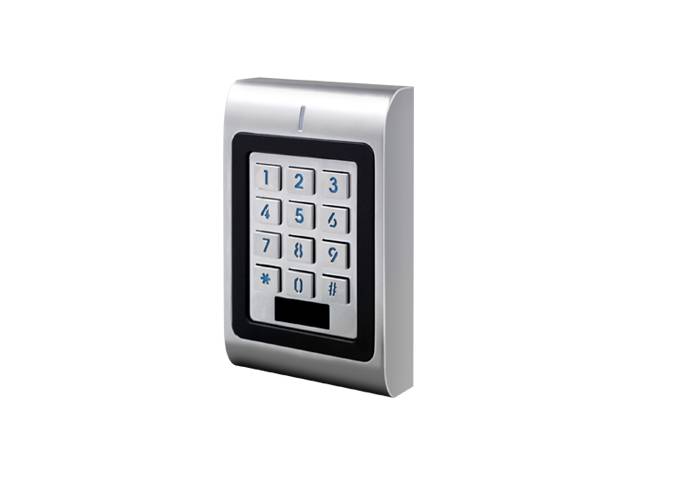

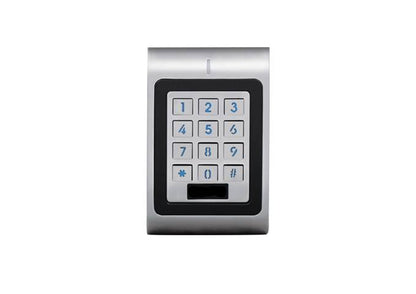

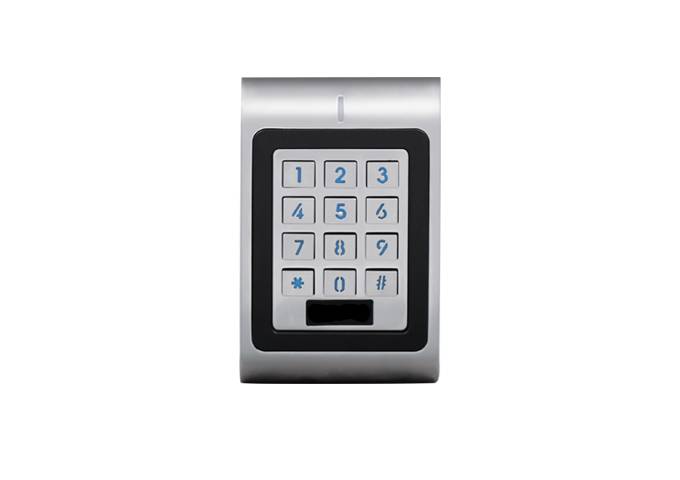

Secukey, SK1-W, Standalone Backlit Pin & Card, Wiegand Card Only
Secukey, SK1-W, Standalone Backlit Pin & Card, Wiegand Card Only
Secukey, SK1-W, Standalone Backlit Pin & Card, Wiegand Card Only
The Secukey SK1-W is a reliable standalone access control device that combines simplicity and functionality. Supporting both PIN and card-based authentication, it offers versatile access control solutions tailored to various security needs. The device is fully compatible with Wiegand card systems, ensuring seamless integration into existing access control infrastructure. Its backlit keypad enhances usability, providing clear visibility for operation in dimly lit environments or during nighttime.
With a compact and durable design, the SK1-W withstands daily use in both residential and commercial settings, offering consistent performance. The standalone capability allows it to operate independently, eliminating the need for additional controllers or complex wiring. Furthermore, its straightforward installation process enables quick deployment, making it a practical choice for efficient access management. The SK1-W is ideal for locations requiring reliable, user-friendly, and secure access control without compromising on performance or ease of use.
Outdoor Dual-relay Keypad
- Waterproof conforms to IP66
- Two relays operation
- 1,100 users (1096 Common users + 4 Panic users)
- Card type: 125KHZ EM card, or 13.56MHz Mifare card optional
- PIN length: 4~6 digits
- Latch mode to hold door or gate open
- Working Temperature: -40 °C ~ 60 °C (-40 °F ~ 140 °F)
Specifications
|
User Capacity Zone 1 Zone 2 |
1100 Card/PIN 1000 (998 Common Users + 2 Panic Users) 100 (98 Common Users + 2 Panic Users) |
|
Operating Voltage Idle Current Active Current |
12~28V AC/DC 55mA 80mA |
| Keypad | 12 Key (3*4) |
|
Proximity Card Reader Radio Technology Read Range |
EM/Mifare (Optional) 125KHz EM/ 13.56MHz Mifare Card 3 ~ 6 cm |
| Wiring Connections |
Electric lock, exit button, DOTL, external alarm, doorbell |
|
Relay Adjustable Relay Output Time Adjustable Alarm Output Time Lock Output Load Alarm Output Load |
Two (NO, NC, COM) 0 ~ 99 Seconds (5 seconds default) 0 ~ 3 minutes (1 minute default) 3 Amp Maximum 3 Amp Maximum |
|
Environment Operating Temperature Operating Humidity |
Meets IP66 -40 °C ~ 60 °C (-40 °F ~ 140 °F) 10% ~ 90% Non-Condensing |
|
Physical Surface Finish Dimensions Unit Weight Shipping Weight |
Zinc-Alloy Enclosure Powder Coat 11.7L x 7.6W x 2.5H (cm) 600g 700g |
