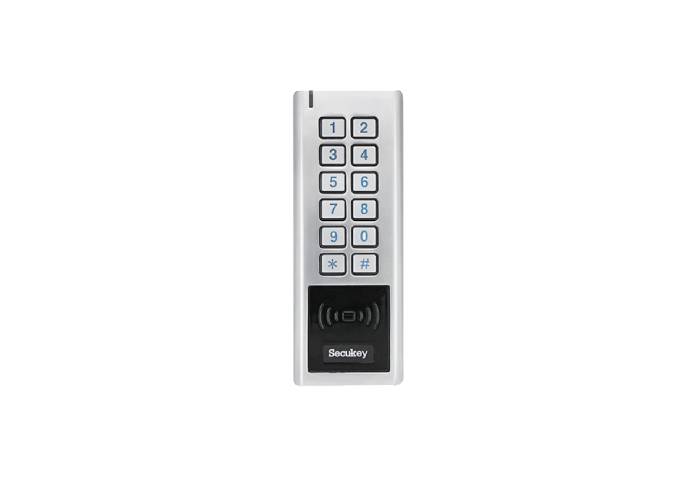

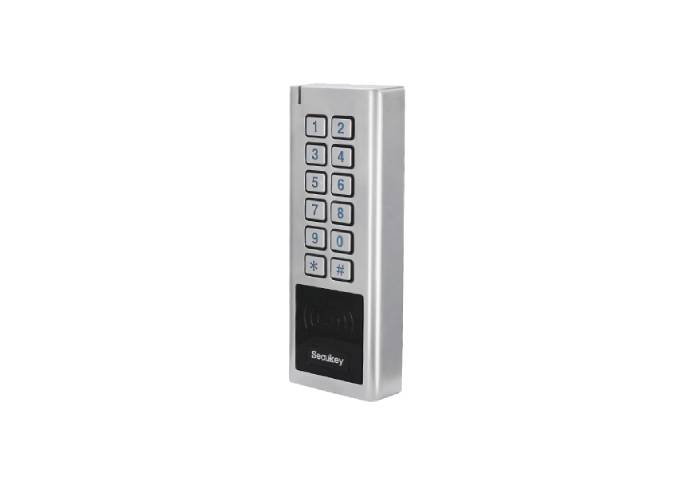

Secukey, SK5-X, Universal Keypad (EM+HID+MF)
Secukey, SK5-X, Universal Keypad (EM+HID+MF)
Secukey, SK5-X, Universal Keypad (EM+HID+MF)
The Secukey SK5-X Universal Keypad offers a versatile and efficient solution for secure access control, supporting EM, HID, and MIFARE credentials. Its universal compatibility enables seamless integration with various access systems, providing flexibility in diverse environments. Designed with a durable and robust structure, the keypad withstands harsh weather conditions, making it ideal for both indoor and outdoor installations. The SK5-X features a sleek, compact design that enhances aesthetics without compromising functionality. Its backlit keys ensure visibility in low-light conditions, improving user convenience during nighttime or dimly lit scenarios.
Additionally, its advanced programming capabilities simplify user management, allowing for quick addition or deletion of access credentials. With multi-format compatibility, it accommodates a wide range of access requirements, ensuring adaptability for evolving security needs. The keypad's user-friendly operation and high reliability make it a practical choice for offices, warehouses, and residential properties, delivering both enhanced security and convenience.
SK5-X is a universal keypad, can work as standalone keypad, access controller or standard Wiegand output reader. It can read 125KHz EM & HID for Low Frequency and 13.56MHz Mifare for High Frequency tokens, cards and tags.
Universal Keypad (EM+HID+MF)
- Waterproof, conforms to IP66
- One relay, 600 users
- Card type: 125KHz EM card,125KHz HID card, and 13.56Mhz Mifare Card
- PIN length: 4~6 digits
- Wiegand 26~37 bits input & output
- Can be used as Wiegand reader with LED & Buzzer output
- Pulse mode, Toggle mode
- 2 devices can be interlocked for 2 doors
- 12~28V AC/ DC
| User Capacity Common Users Panic Users |
600 598 2 |
| Operating Voltage Idle Current Active Current |
12~28V AC/DC < 65mA < 100MA |
| Proximity Card Reader Radio Technology Read Range |
HID & EM & Mifare 125KHz &13.56Mhz 2~6 cm |
| Wiring Connections | Relay output, exit button, alarm, door contact, Wiegand input, Wiegand output |
| Relay Adjustable Relay Output Time Lock Output Load |
One (NO, NC, Common) 0~99 Seconds (5 seconds default) 2 Amp Maximum |
| Wiegand Interface Wiegand Input Wiegand Output PIN Output |
Wiegand 26~37bits 26~37bits 26~37bits 4 bits, 8 bits(ASCII), 10 digits Virtual Number |
| Environment Operating Temperature Operating Humidity |
Meets IP66 -40°C ~ 60°C (-40°F ~ 140°F) 0%RH ~ 98%RH |
| Physical Surface Finish Dimensions Unit Weight Shipping Weight |
Zinc-Alloy Enclosure Powder Coat L148xW56xH22.5mm 500g 600g |
