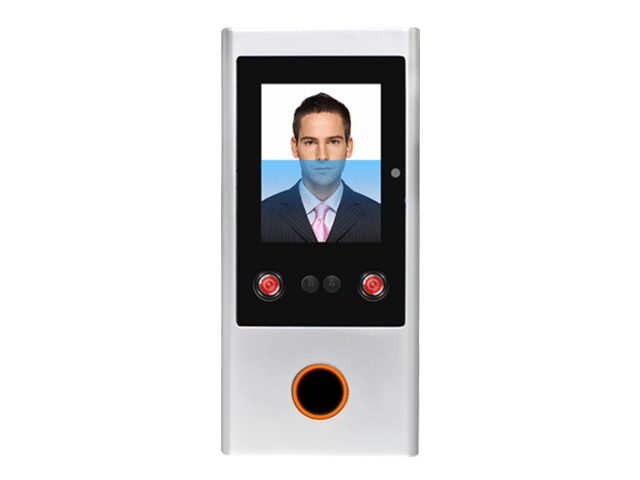

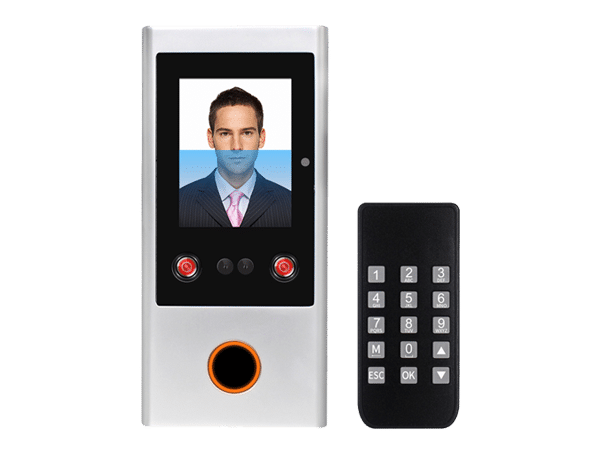

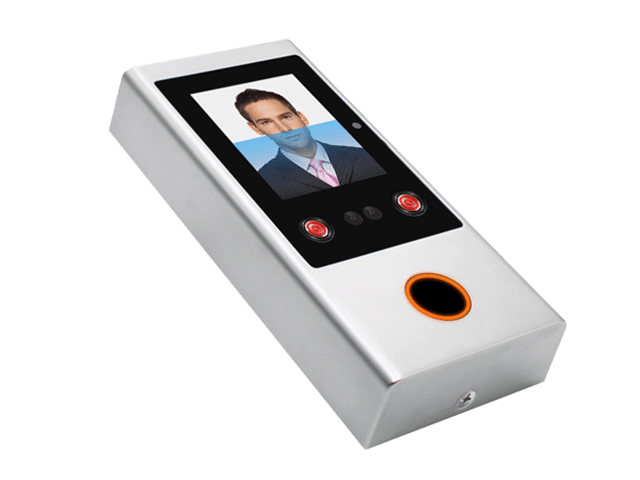

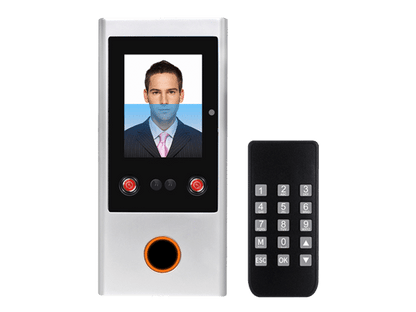

SecukeyV1, Standalone Face & EM Access Control
The Secukey V1 is a standalone access control system combining facial recognition and EM (Electromagnetic) card technology. This innovative device enhances security with advanced facial recognition technology, enabling precise identification for authorized personnel. The V1 also supports EM cards, offering flexibility for users who prefer card-based access. Its standalone design eliminates the need for additional hardware, making it easy to install and use. With a user-friendly interface, the Secukey V1 simplifies access control management while ensuring reliable security. The system’s compact and modern design fits seamlessly into various environments. Additionally, the V1 is equipped with a high-resolution camera, ensuring fast and accurate facial recognition, even in low-light conditions. With its combination of convenience, security, and advanced features, the Secukey V1 is ideal for offices, commercial spaces, and other access-controlled areas.
Features
- The Secukey V1 offers facial recognition and EM card support, enhancing flexibility and security for different user preferences.
- Built-in facial recognition ensures fast and accurate identification, even in low-light conditions, enhancing security with minimal delays.
- The device operates standalone, simplifying installation by eliminating the need for additional systems or servers.
- Compact design allows easy integration into various environments, including offices, commercial spaces, and secure access-controlled areas.
- The user-friendly interface ensures straightforward operation, reducing setup time and improving overall convenience for administrators.
- It supports both face and EM card access, offering versatility for different security needs in various settings.
Face & Card Access Control
- Metal housing, anti-vandal
- Standalone with offline Time Attendance
- 1000 face users, 3000 card users (including 10 administrators)
- Card type:EM Card or Mifare Card (Optional)
- Multiple Access: face or card, card + face, face only or card only
- With Wiegand 26 or 34 bits input & output
- With 200000 log capacity
| User Capacity Face Card |
3,000 1,000 3,000 |
| Log Capacity | 200,000 |
| Operating Voltage Idle Current Active Current |
12V‚DC ¢€°¤140mA ¢€°¤230mA |
| Display | 2.4 TFT Color Screen LCD |
| Camera | Dual HD cameras |
| Infrared Light | Dual IR |
| Identification Speed | ¯¼œ0.6s |
| Identification Way | Face / Card, Card + Face, Face, Card |
| Face FAR | ¯¼œ0.001% |
| Face FRR | ¯¼œ1% |
| Proximity Card Reader Radio Technology Read Range |
EM or Mifare 125KHz‚13.56MHz 1cm |
| Wiring Connections | Relay Output, Exit Button, DOTL, Alarm, Wiegand Input, Wiegand Output |
| Wiegand Interface | Wiegand 26‚or 34‚bits Input & Output (default: 26bits) |
| Environment Operating Temperature Operating Humidity |
Indoor -20°C‚~50°C‚(‚-4°F~122°F) 20%RH-80%RH |
| Physical Surface Finish Dimensions Unit Weight Shipping Weight |
Zinc-Ally Enclosure Power Coat L145‚x W68 x D25‚(mm) 450g 550g |
The device is a metal case standalone face access control with integrated card reader.
Its user capacity is 3000, can support maximum 1000 face users, 3000 card users (including 10 administrators)
