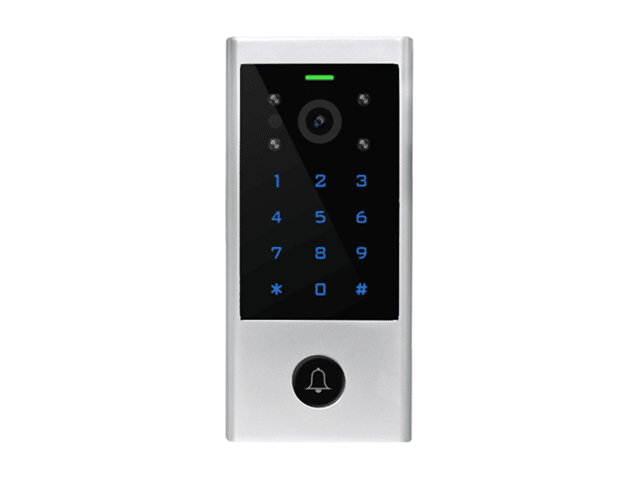

Secukey Vcontrol 1
WIFI Video Intercom Access
The Secukey VControl 1 Video Intercom & Access Control with Tuya WiFi offers a reliable solution for managing entry points. Additionally, this system effectively combines video intercom functionality with access control, enabling users to see and communicate with visitors before granting access. Furthermore, this integration enhances security and provides users with greater peace of mind. The integration of Tuya WiFi enables remote management through a smartphone app, making it easy to monitor your property from anywhere. With its high-definition video and two-way audio features, users enjoy clear communication and improved security. The system supports multiple access methods, including RFID cards and keypads, ensuring flexibility. Its rectangular design allows for easy installation in various environments. Overall, the Secukey VControl 1 enhances security and convenience for residential and commercial applications.
Intercom
- 2.4G WiFi connection,
- Android and iOS available
- Full duplex voice intercom
- 2MP+wide angle camera and night vision
- Support TF card with unlimited capacity
- Support motion detection, playback, take picture/video, unlock remotely
Access Control
- Touch key with one relay, 1000 users (988 common+2 panic+10 visitor)
- PIN Length: 4~6 digits
- EM card, Mifare card optional
- Wiegand 26~44 bits in put & output
- Use it as a Wiegand reader with an LED and buzzer.
- User data can be transferred.
- Two devices can be interlocked for two doors.
| Video Intercom | Network | 2.4GWiFi connection |
| Pixel | 2.0Mpx (1080P) | |
| Visual Angle | Horizontal 140° wide angle | |
| Night Vision | IR-CUT (Colorful at daytime, black and white at night) | |
| Extended Memory | TF card with unlimited capacity | |
| Intercom | Full duplex voice intercom | |
| Other Functions | Motion detection; Playback; Take picture/video; Unlock remotely | |
| Access Control |
User Capacity Common User |
1000 988 10 |
| PIN Length | 4~6 digits | |
| ProximityCard Reader Radio Technlogy Read Range |
EM or Mifare 125KHz/13.56MHz 2~6cm |
|
| Wiring Connections | Relay output, exit button, alarm, door contact, Wiegand input/output | |
|
Relay Adjustable Relay Output Time Lock Output Load |
One (NO, NC, Common) 0~99 Seconds (5 seconds default) 2 Amp Maximum |
|
|
Wiegand Interface‚ PIN Output |
EM card version: Wiegand 26~44 bits input & output‚(Factory default: Wiegand 26bits) Mifare card version:Wiegand 26~44 bits input & output‚(Factory default: Wiegand 34bits) 4 bits,8bits (ASCII),10 digits Virtual Number(Factory default:4bits) |
|
| Electric |
Operating Voltage Idle Current |
DC 12V ¢€°¤ 150mA |
|
Environment Operating Temperature Operating Humidity |
Indoor -20°C ~ 60°C (-4°F ~ 140°F) 0%RH ~ 86%RH |
|
|
Physical Color Dimensions Unit Weight Shipping Weight |
Zinc-Alloy Sliver & Black L145‚x W68 x H25‚(mm) 450g 550g |
The device is Touch key Access Controller with WiFi-enabled Intercom. People can install the APP for intercom with their smart phone,
and program the access controller by touch key. It is compatible with both iOS (7.0 above) and Android (4.3 above).
