Secukey, XK1-EM, Standalone Backlit Pin & Card, Controller Mode With Wiegand Input

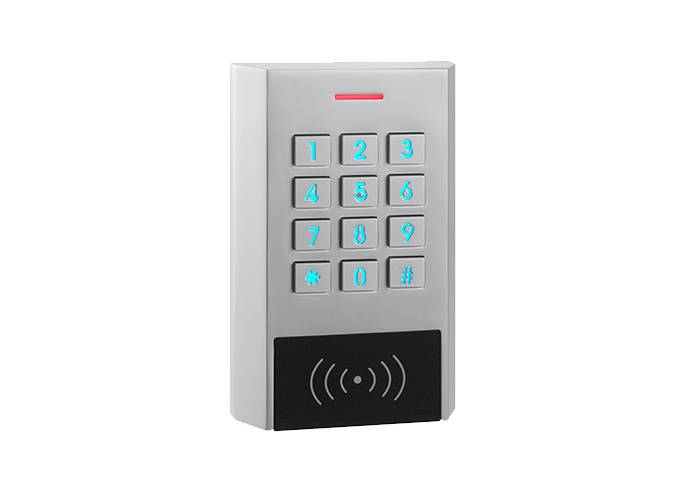

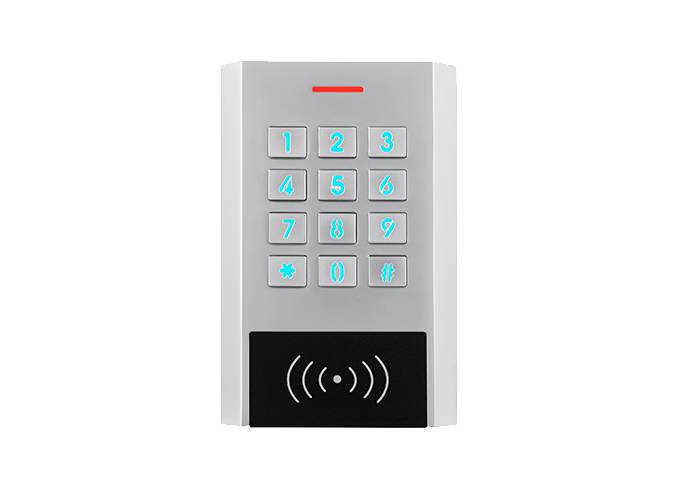

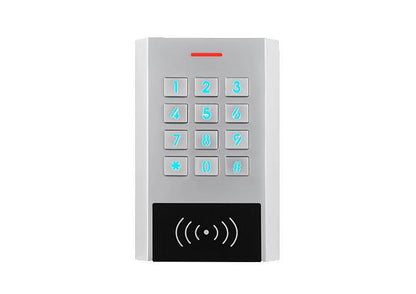

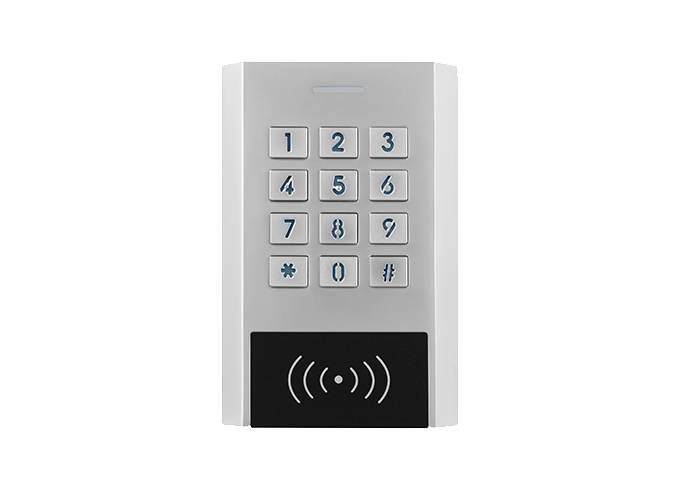

The Secukey XK1-EM is a versatile standalone access control system that combines PIN and card authentication with Wiegand input functionality. Designed for seamless integration, it enhances security while offering flexibility in controller mode. Its backlit keypad ensures ease of use in various lighting conditions, making it convenient for users at any time. The XK1-EM supports standalone operations, providing reliable access control for both residential and commercial applications. Its robust construction ensures durability, while its sleek design allows for easy installation. Ideal for modern security needs, this device offers efficient performance and compatibility with existing access control systems.
Outdoor Metal Digital Keypad
- One relay, 1000 users
- User data can be transferred by Wiegand line
- Access modes: Card, PIN, Card + PIN, Multi Cards/PINs
-
Card type:
- XK1-EM: 125KHz EM card/ XK1-H&E: 125KHz EM & HID card
- PIN length: 4~6 digits
- Pulse mode, toggle mode
- 2pcs device support interlock for two doors
- XK1 is a new generation keypad access control, the key is all metal and the key frame is hidden.
- It with Wiegand input & output, which make this unit can be operated as an outdoor backlit keypad reader, or it can convert to a fully-featured standalone controller or standalone keypad
Specifications
|
User Capacity Common User Panic User |
1000 988 2 |
|
Operating Voltage Idle Current |
12~28V AC/DC ＜35mA |
|
Proximity Card Reader Radio Technology Read Range |
Mifare (4bytes, 7bytes ISO14443 Type A) 13.56MHz 2~6 cm |
| PIN Length | 4~6 digits |
| Wiring Connections | Relay Output, Exit Button, Alarm, Door Contact, Wiegand Input, Wiegand Output |
|
Relay Adjustable Relay Output Time Lock Output Load |
One (NO, NC, Common) 0~99 Seconds (5 seconds default) 2 Amp Maximum |
|
Wiegand Interface PIN Output |
Wiegand 26-44, 56, 58bits input & output 4 bits, 8 bits(ASCII), 10 digits Virtual Number (Factory Default: Wiegand 34bits, 4 bits) |
|
Environment Operating Temperature Operating Humidity |
Meets IP66 -40℃ ~ 60℃ (-40℉~ 140℉) 0%RH~98%RH |
|
Physical Colour Dimensions Unit Weight Shipping Weight |
Zinc-Alloy Silver L114.5 x W75 x D22mm 360g 440g |
