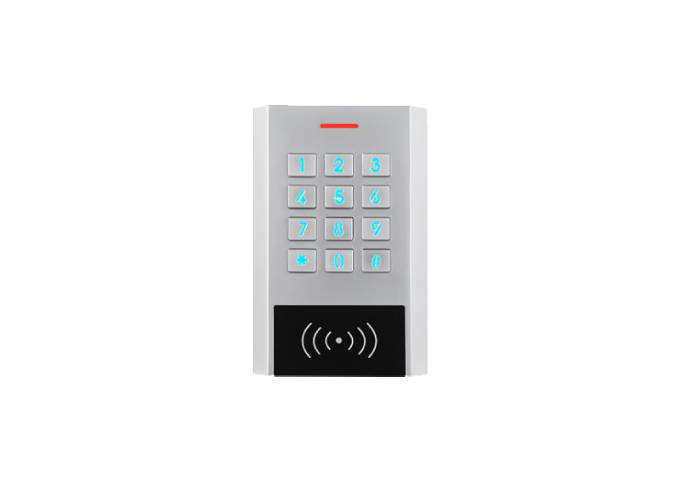

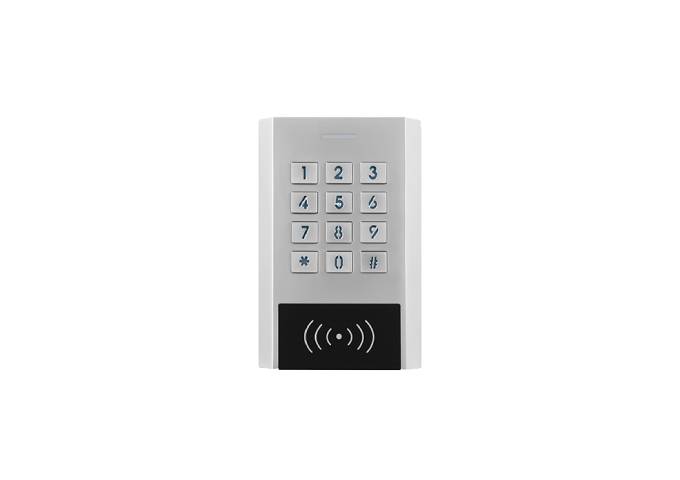

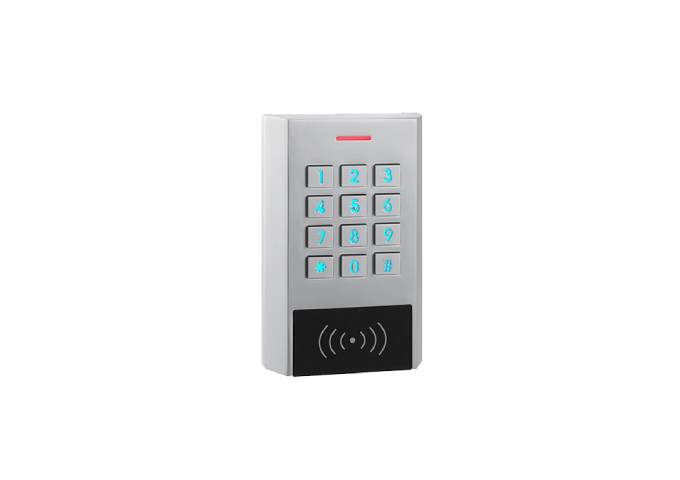

Secukey, XK1-MF, Outdoor Metal Digital Keypad (Mifare)

The Secukey XK1-MF Outdoor Metal Digital Keypad is a robust and reliable solution for secure access control, designed specifically for MIFARE credentials. Its durable metal construction ensures resistance against harsh environmental conditions, making it perfect for outdoor and indoor applications. With a sleek, compact design, the XK1-MF seamlessly integrates into various environments while maintaining a professional appearance.

The keypad supports advanced MIFARE technology, providing enhanced security and compatibility with modern access systems. Its backlit keys ensure clear visibility even in low-light conditions, allowing for easy operation during nighttime or dim environments. The user-friendly interface simplifies the process of adding, removing, or managing access credentials, saving valuable time.

In addition to its functional design, the XK1-MF delivers reliable performance, ensuring consistent operation over time. This makes it an ideal choice for offices, residential buildings, and industrial facilities seeking efficient and secure access control.

XK1 is a new generation keypad access control, the key is all metal and the key frame is hidden. It with Wiegand input & output, which make this unit can be operated as an outdoor backlit keypad reader, or it can convert to a fully-featured standalone controller or standalone keypad.

Outdoor Metal Digital Keypad (Mifare)

  • Metal case, all-metal key, anti-vandal
  • Waterproof, conforms to IP66
  • One relay, 1,000 users (988 common users + 2 panic users + 10 visitor users)
  • PIN length: 4~6 digits
  • Read 13.56MHz Mifare card (4 bytes, 7 bytes ISO14443 Type A)
  • Wiegand 26~44, 56, 58bits input & output
  • Can be used as Wiegand reader with LED & buzzer output
  • Pulse mode, Toggle mode
  • User data can be transferred
  • 2 devices can be interlocked for 2 doors
  • Built-in light dependent resistor (LDR) for anti tamper
  • Backlit keypad, can set automatic OFF after 20 seconds
  • Low temperature resistance(-40℃)
  • Voltage: 12~28V AC/DC

Specifications:

User Capacity
Common User
Panic User
Visitor User 		1000
988
2
10
Operating Voltage
Idle Current 		12~28V AC/DC
＜35mA
Proximity Card Reader
Radio Technology
Read Range 		Mifare (4bytes, 7bytes ISO14443 Type A)
13.56MHz
2~6 cm
PIN Length 4~6 digits
Wiring Connections Relay Output, Exit Button, Alarm, Door Contact, Wiegand Input, Wiegand Output
Relay
Adjustable Relay Output Time
Lock Output Load 		One (NO, NC, Common)
0~99 Seconds (5 seconds default)
2 Amp Maximum
Wiegand Interface
PIN Output 		Wiegand 26-44, 56, 58bits input & output
4 bits, 8 bits(ASCII), 10 digits Virtual Number
(Factory Default: Wiegand 34bits, 4 bits)
Environment
Operating Temperature
Operating Humidity 		Meets IP66
-40℃ ~ 60℃ (-40℉~ 140℉)
0%RH~98%RH
Physical
Color
Dimensions
Unit Weight
Shipping Weight 		Zinc-Alloy
Silver
L114.5 x W75 x D22mm
360g
440g
