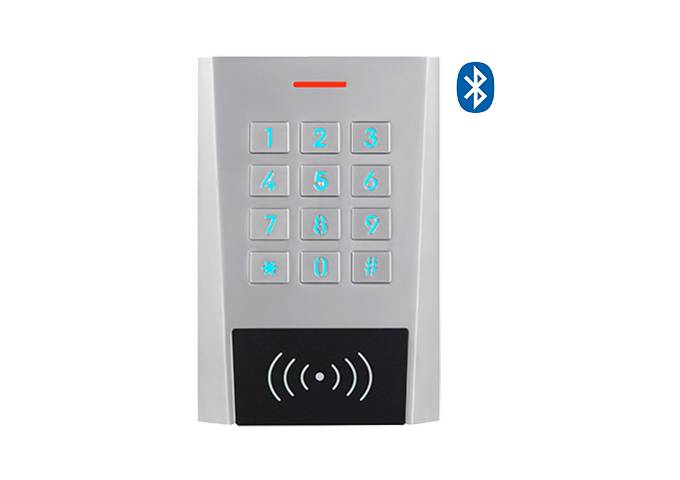

Secukey, XK3-BT, Bluetooth Mobile App (Ksmart), Controller Mode With Wiegand Input
Secukey, XK3-BT, Bluetooth Mobile App (Ksmart), Controller Mode With Wiegand Input
Part Number:
SEC090
Need help? Contact Us Now!
Trade pricing available via login.
View full details
Secukey, XK3-BT, Bluetooth Mobile App (Ksmart), Controller Mode With Wiegand Input
The Secukey XK3-BT Bluetooth Mobile App Controller Mode with Wiegand Input provides an efficient, secure access control solution. With the Ksmart mobile app, users can manage access remotely using Bluetooth for convenient, contactless authentication. The controller integrates easily with Wiegand input devices, offering enhanced compatibility with existing systems. It allows for smooth user management, enabling administrators to add or remove users quickly. This versatile controller is ideal for both residential and commercial settings, combining modern Bluetooth technology with reliable performance. The XK3-BT ensures seamless integration, making it a practical choice for secure access control.
XK3-BT is a keypad access control with embedded Bluetooth module, which can access doors by card/password/smartphone, the unique app is compatible with both Android and iOS.
Bluetooth Keypad
- One relay, 1000 users
- Wiegand 26~37 bits input & output
- User data can be transferred by Wiegand line
- Access modes: Card, PIN, Card + PIN, Multi Cards/PINs, Mobile phone
- PIN length: 4~6 digits
- Card type: XK3-BT(EM): 125KHz EM card/XK3-BT(H&E): 125KHz EM & HID card
- Pulse mode, toggle mode
- 2pcs device support interlock for two doors
- With Bluetooth, APP configuration
Specifications
|
User Capacity Common User Panic User |
1000 998 2 |
|
Operating Voltage Idle Current |
12~28V AC/DC < 35mA |
|
Proximity Card Reader Radio Technology Read Range |
Hid & EM 125KHz Proximity Card 2~6 cm |
| Wiring Connections | Relay output, exit button, alarm, door contact, Wiegand input, Wiegand output |
|
Relay Adjustable Relay Output Time Lock Output Load |
One (NO, NC, Common) 0~99 Seconds (5 seconds default) 2 Amp Maximum |
|
Wiegand Interface Wiegand Input Wiegand Output PIN Output |
Wiegand 26~37bits 26~37bits 26~37bits 4 bits, 8 bits(ASCII), 10 digits Virtual Number |
|
Environment Operating Temperature Operating Humidity |
Meets IP66 -40 oC ~ 60 oC (-40 oF ~ 140 oF) 0%RH ~ 98%RH |
|
Physical Color Dimensions Unit Weight Shipping Weight |
Zinc-Alloy Silver 11.5L x 7.5W x 2.2H (cm) 360g 440g |
