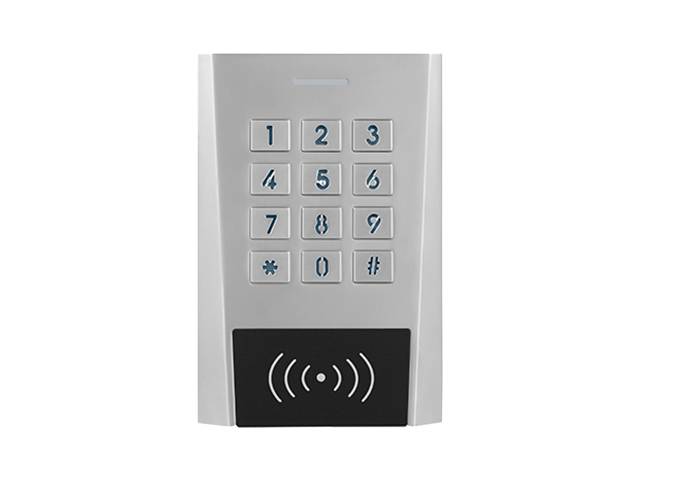

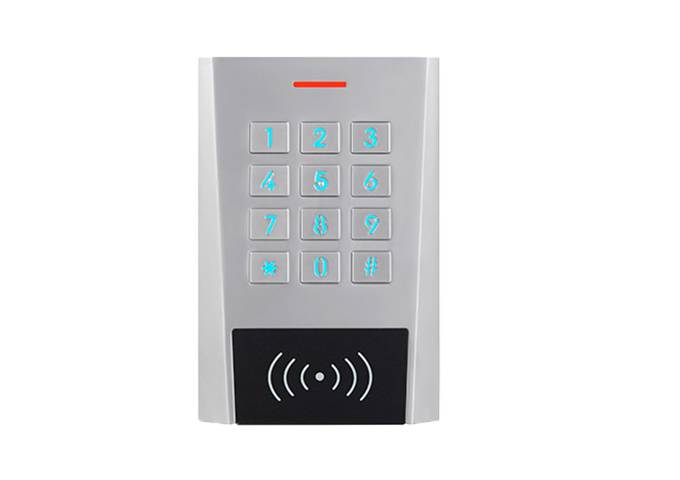

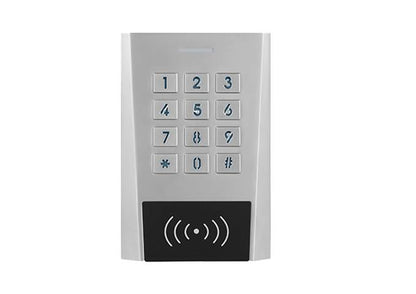

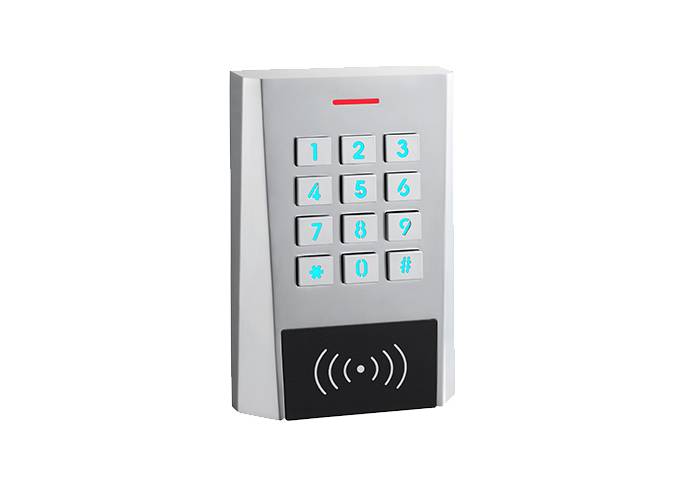

Secukey, XK3-D, Dual Relay, Standalone Backlit Pin & Card, Metal

The Secukey XK3-D is a robust standalone access control device designed with a durable metal casing for enhanced protection and reliability. Featuring dual relays, it allows control of two independent doors or functions, making it ideal for versatile security setups. Its PIN and card-based authentication offer flexible access options, while the backlit keypad ensures usability in low-light environments. The XK3-D's standalone operation simplifies installation by eliminating the need for additional controllers, reducing overall costs. Perfect for both residential and commercial applications, it combines security, convenience, and durability in a sleek, efficient design suitable for various environments.

XK3-D is a dual-entry access control with an integrated keypad and card reader. It supports up to 999 users in multiple access configurations (Card, PIN, or Card +PIN). Its key is all metal and the key frame is hidden.

Outdoor Dual-relay Digital Keypad

  • Waterproof, conforms to IP66
  • Metal case, anti-vandal
  • Fashion design, all-metal key button
  • Two relays, 999 users
  • PIN length: 1~8 digits
  • Card type: 125KHz EM card / tag
  • Multi-color LED status display
  • Integrated alarm & buzzer output, can set the volume sound from level 0~5
  • Pulse mode, Toggle mode
  • Built in light dependent resistor (LDR) for anti tamper
  • Backlit keypad, can set always ON, always OFF, or turn off automatically after 60 seconds
  • Relay 2 supports external door bell
  • Low temperature resistance(-40℃)
  • Voltage: 12~28V AC/DC

Specifications

User Capacity 999
Operating Voltage
Idle Current 		12~28V AC/DC
＜50mA
Proximity Card Reader
Radio Technology
Read Range 		EM
125KHz
2~6 cm
PIN Length 1~8 digits
Wiring Connections Relay Output, Exit Button, Alarm, Door Contact, Doorbell
Relay
Adjustable Relay Output Time
Lock Output Load 		Two (NO, NC, Common)
0~300 Seconds (5 seconds default)
2 Amp Maximum
Environment
Operating Temperature
Operating Humidity 		Meets IP66
-40℃ ~ 60℃ (-40℉~ 140℉)
0%RH~98%RH
Physical
Color
Dimensions
Unit Weight
Shipping Weight 		Zinc-Alloy
Silver
L114.5 x W75 x D22mm
360g
440g
