Secukey, XK4-BT, Bluetooth Mobile App (Ksmart), Controller Mode With Wiegand Input
The Secukey XK4-BT Bluetooth Mobile App Controller Mode with Wiegand Input offers a modern and secure access control solution. Using the Ksmart mobile app, users can easily manage access via Bluetooth, providing a convenient and contactless authentication method. The controller is designed to integrate seamlessly with Wiegand input devices, enhancing flexibility and compatibility with existing systems. This Bluetooth-enabled controller supports multiple users, allowing for easy management and access control via a smartphone. Its reliable performance and user-friendly features make the XK4-BT a versatile choice for both residential and commercial access control applications.

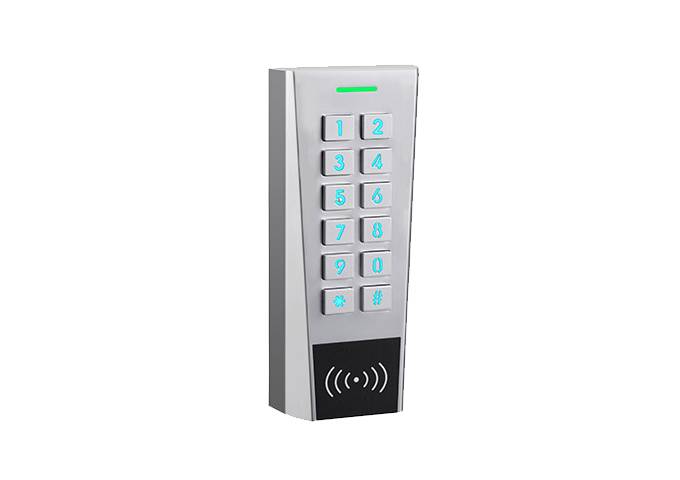

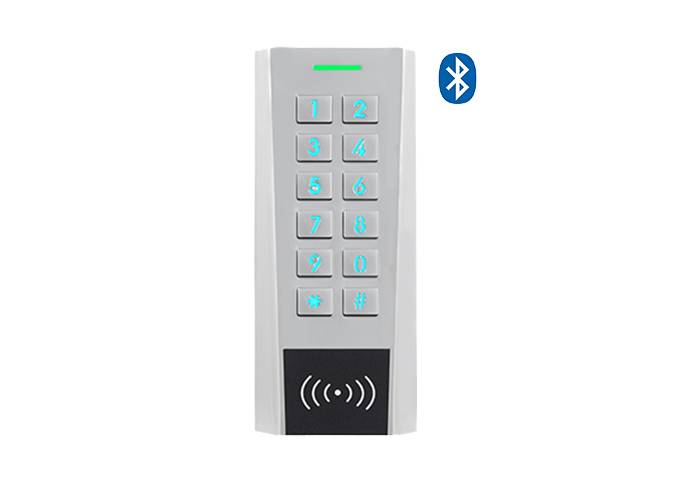

XK4-BT is a keypad access control with an embedded Bluetooth module, which can access doors by card/password/smartphone, the unique app is compatible with both Android and iOS.
Bluetooth Keypad
- Waterproof, conforms to IP66
- One relay, 1000 users
- Wiegand 26~37 bits input & output
- User data can be transferred by Wiegand line
- Access modes: Card, PIN, Card + PIN, Multi Cards/PINs, Mobile phone
- PIN length: 4~6 digits
- Card type:XK4-BT(EM): 125KHz EM card/XK4-BT(H&E): 125KHz EM & HID card
- Pulse mode, toggle mode
- 2pcs device support interlock for two doors
- With Bluetooth, APP configuration
Specifications
|
User Capacity Common User Panic User |
1000 998 2 |
|
Operating Voltage Idle Current |
12~28V AC/DC < 35mA |
|
Proximity Card Reader Radio Technology Read Range |
Hid & EM 125KHz Proximity Card 2~6 cm |
| Wiring Connections | Relay output, exit button, alarm, door contact, Wiegand input, Wiegand output |
|
Relay Adjustable Relay Output Time Lock Output Load |
One (NO, NC, Common) 0~99 Seconds (5 seconds default) 2 Amp Maximum |
|
Wiegand Interface Wiegand Input Wiegand Output PIN Output |
Wiegand 26~37bits 26~37bits 26~37bits 4 bits, 8 bits(ASCII), 10 digits Virtual Number |
|
Environment Operating Temperature Operating Humidity |
Meets IP66 -40 oC ~ 60 oC (-40 oF ~ 140 oF) 0%RH ~ 98%RH |
|
Physical Colour Dimensions Unit Weight Shipping Weight |
Zinc-Alloy Silver 13.4L x 5.5W x 2.1H (cm) 340g 420g |
