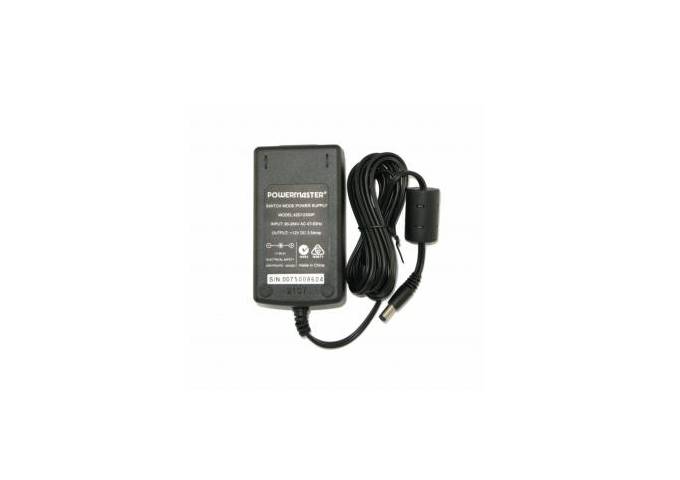

T1823-021/K3746 18VDC 2330MA 'SMPSU' With Cord
Powermaster T1823-021 18V DC 2330mA Power Adapter with IEC Input
Australian regulated 18V power supply with IEC input. With switch mode power technology the T1823-021 outputs a steady current which can provide a large amount of power while maintaining a compact size. Standard IEC-C6, IEC-C8 or IEC-C14 inlet allows the correct IEC-C5, IEC-C7 or IEC-C13 power cord to be selected for different countries.
2.1mm / 5.5mm Plug Suits Many Brands
The plug size is the common size used for most DC power inputs (2.1mm I.D. 5.5mm O.D.). Note the centre pin is wired to the negative, known as 'negative center tip', though we have a polarity converter if required. With 2.3A (2330mA) of current this power supply can supply ample power for a number of diverse applications.
Compact Body 100V - 240V Power Supply
Narrow width, wall mountable switch mode 18V DC output 2330mA power supply (AC adapter) able to be used across 100V-240V range, making it suitable for use when traveling. Being a narrow design, the adapter easily fits into a double wall socket alongside most other plugs.
Electrical Safety Certified
The insulated active and neutral pins have have been tested in Australia and have been certified in compliance with AS/NZS3112.
Features:
- Range: 100V-240V
- 18V DC 2.33 Amp (2330mA)
- Colour: Black
- Plug Size: 11mm x 5.5mm x 2.1mm
- Dimensions: 115(W) x 51(H) x 34(D) mm
- Polarity: Negative Centre
- Powermaster Model: 48D SMPSU 18V DC 2330mA 11-55-21 C-Pos C14 - T1823-021
