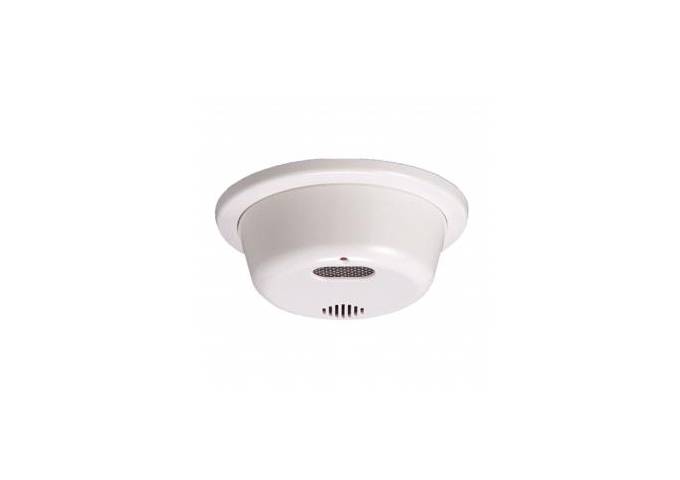

TAKEX, FS-1000E Ultraviolet Flame Sensor
TAKEX, FS-1000E Ultraviolet Flame Sensor
Part Number:
TAK220
Need help? Contact Us Now!
Trade pricing available via login.
View full details
TAKEX, FS-1000E Ultraviolet Flame Sensor
The TAKEX FS-1000E Ultraviolet Flame Sensor offers precise and reliable flame detection for enhanced safety in critical areas. Utilizing advanced UV technology, it quickly identifies flames while minimizing false alarms. Built for durability, it withstands challenging environments and integrates seamlessly into fire safety systems, providing dependable performance for a wide range of applications.
The FS-1000E sensor quickly detects ultraviolet rays contained in flames and activates a built-in alarm sound plus an open collector output.
Features:
- high sensitivity ultraviolet flame sensor
- detachable base unit with snap-in-out sensor design
- built-in sounder
- NO/NC relay output
- adjustable response time
- battery (2x AA type-3 alkaline) or DC Operation
Specifications:
| Model | FS-1000E |
| Detection system |
Ultraviolet rays detection (detected wave length 180~260nm) |
| Detection distance | 10m (33ft) max. (7cm flame) |
| Detection angle | Approx. 120 degrees (conically) |
| Detection timer |
3 steps changeover by the slide switch H (0.2 sec), M (1 sec), L (6 sec) |
| Power supply |
Type-3 alkaline battery (LR6) x2 (3V) - included Lithium battery (CR17450E-R-2-CM2) x1 (3V) - optional External power supply 9V to 30VDC with polarity |
| Power consumption |
Standby: 50μA max. (battery) / 5mA (DC) Alarm: 50mA max. when buzzer sounds |
| LED (red) |
LED alarm: blinking every 0.2 sec during off-delay 10 sec Low battery: light on 0.1 sec every 5 sec. |
| Buzzer |
Alarm: intermittent every 0.2 sec during off delay 10 sec Low battery: sound 0.1 sec every 5 sec. Volume: 80dB or more 1m (3.3ft) ahead (silent setting is available by cutting internal jumper line) |
| Wiring | Terminals |
| Ambient temperature |
-10°C to +60°C (+14°F to +140°F) (battery performance may decrease below 0°C and above 40°C |
| Installation | Indoor (ceiling or wall mount) |
| Weight | Approx. 200g (7oz) |
| Appearance | ABS resin (white) |
| Supplied accessories |
· Battery case (Type-3): 1pc · Type-3 alkaline battery (LR6) & tapping screw: 2 pcs · Sensor locking screw: 1 pc |
