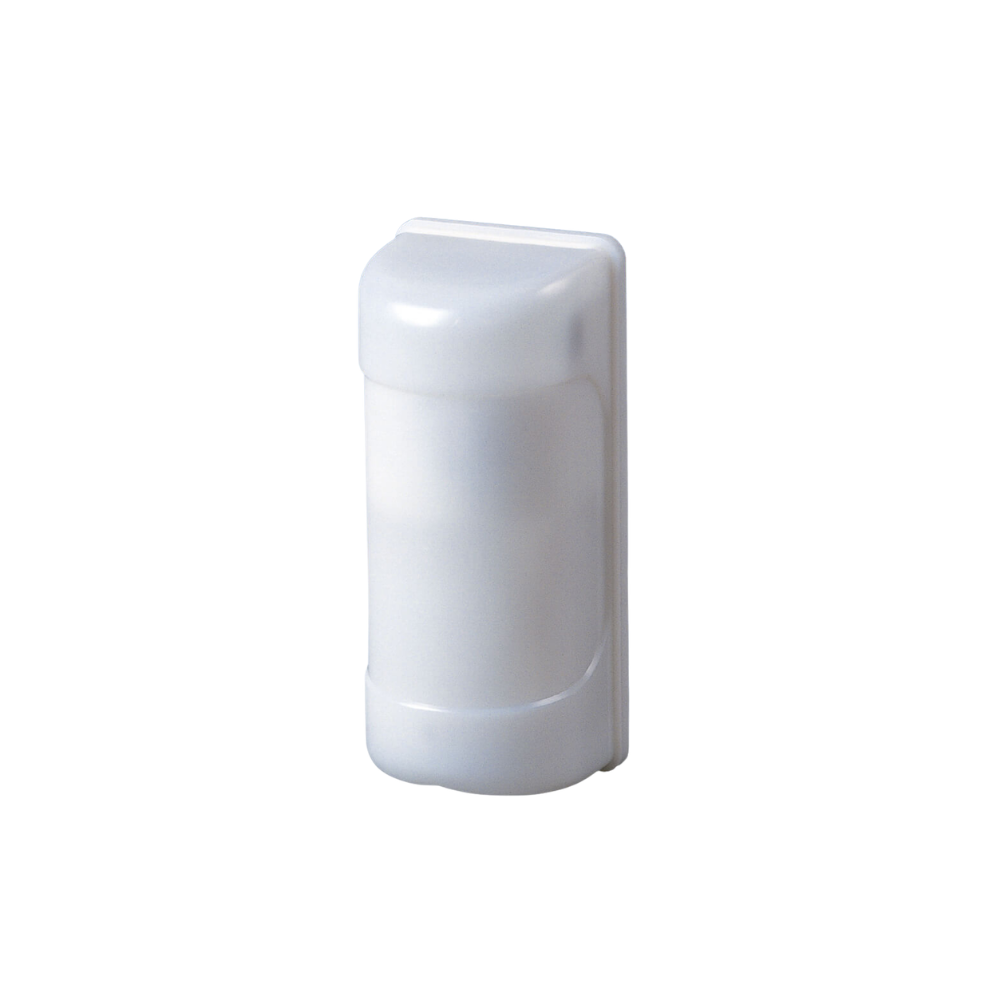

Takex MS-100E Outdoor PIR with 20 metre range
Designed for indoor and outdoor use, the MS-100E offers the choice of Wide Angle, Horizontal Curtain, Vertical Curtain and Long Range detection up to 20m from within a single discreet housing.
180° Rotatable optics allow the unit to be installed in almost any position; mount vertically for standard detection or horizontally as a door sensor… the choice is yours.
Features
- Supplied with 2 lenses for up to 4 different detection patterns
- 10m Wide Angle / 10m Curtain / 20m Long Range
- 180° Rotating sensor head for vertical or horizontal mount
- Designed for indoor and outdoor use
|
Specifications |
|
|
Detection system |
Passive infrared |
|
Coverage |
Vertical Installation |
|
Supply voltage |
10.5VDC to 28VDC (Non polarity) |
|
Current consumption |
30mA or less |
|
Alarm output |
Dry contact relay output Form N.C./N.O. selectable |
|
Tamper output |
Dry contact relay output N.C. |
|
LED indicator |
Light at alarm |
|
Sensitivity adjustment |
Approx. 30% (L)～Approx. 170% (H) (100% set at factory) |
|
Mounting position |
Vertical Installation |
|
Wiring |
Terminals |
|
Weight |
7.7 oz (220g) |
|
Appearance |
Cover: PE resin (white) |
|
Environmental Specification |
|
|
Ambient temperature |
-4°F to +122°F (-20°C to +50°C) |
