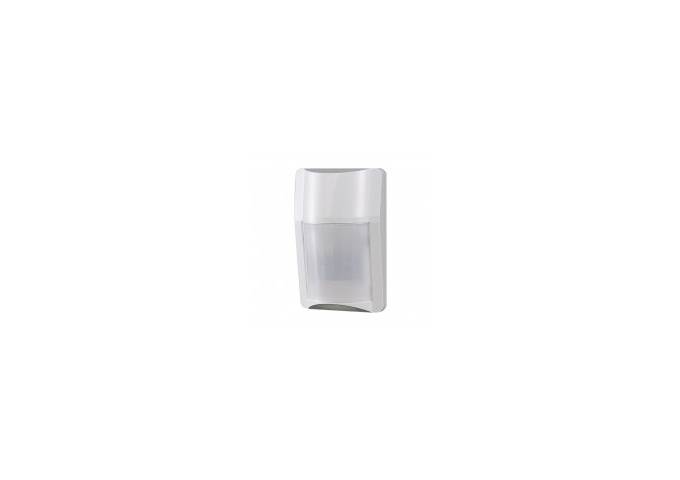

TAKEX, PA-450E, Wall Mount Wide Angle PIR 12M 32mA
TAKEX, PA-450E, Wall Mount Wide Angle PIR 12M 32mA
Part Number:
TAK010
Need help? Contact Us Now!
Trade pricing available via login.
View full details
TAKEX, PA-450E, Wall Mount Wide Angle PIR 12M 32mA
The TAKEX PA-450E is a wall-mounted wide-angle PIR sensor with a 12-meter detection range and 32mA power consumption. It ensures reliable motion detection across large areas, offering consistent performance in both residential and commercial settings. Its easy installation, low energy usage, and durable design make it an efficient security solution.
Wall Mount: 11m (36ft) Wide Angle
Features:
- high RFI and EMI immunity
- photo MOSFET relay for silent operation
- equipped with tamper and auto-reset memory
- creep zone eliminates dead-space below sensor
- adjustable coverage pattern to suit different mounting heights
- mode selector for easy setting adjustment
Specifications:
| Product type | Passive infrared sensor |
| Detection system | Passive infrared |
| Coverage | Wide angle: 11m (36ft) max. |
| Sensitive zone | 18 pairs |
| Supply voltage | 10 to 18VDC (non-polarity) |
| Current consumption | 25mA max. |
| Alarm output |
Dry contact (semi-conductor) (NO/NC selectable) Reset: approx. 2 sec, 24V, 0.25A max. (Protective resistor 3.3Ω) |
| Tamper output | 0.1A, 30V (NC) |
| Alarm LED (Red) |
· Blinking at warm-up Lighting at alarm (LED disabled) · Blinking at memory activated Lighting at memory indication |
| Coverage adjustment | Vertically 3 steps |
| Pulse count | 2/4 selectable |
| Alarm memory | 3 mins blinking, 47 mins lighting (automatically reset) |
| Low voltage notice | Dry contact alarm |
| Ambient temperature | -15°C to +55°C (+5°F to +131°F) without condensation |
| Mounting position | Indoor use only (ceiling mount with optional BCW-401) |
| Weight | 120g (4.2oz) |
| Appearance |
Body: ABS resin Lens: PE resin |
