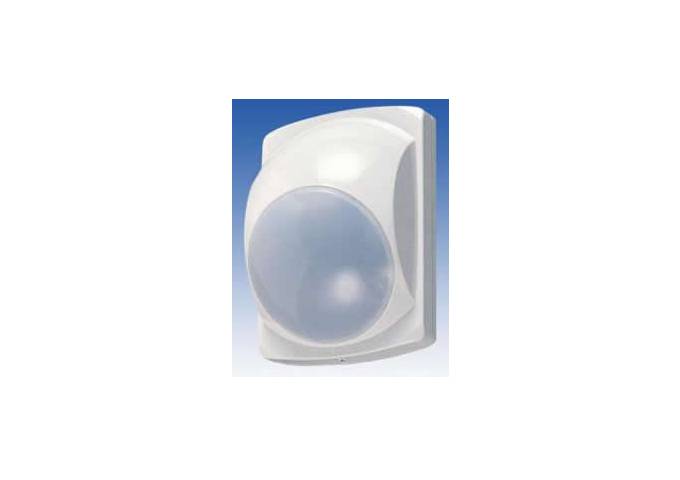

TAKEX, PA-4810 Wall Mount Wide Angle Mirror Optic Detector
TAKEX, PA-4810 Wall Mount Wide Angle Mirror Optic Detector
Part Number:
TAK168
Need help? Contact Us Now!
Trade pricing available via login.
View full details
TAKEX, PA-4810 Wall Mount Wide Angle Mirror Optic Detector
The TAKEX PA-4810 is a wall-mount wide-angle mirror optic detector designed for precise motion detection across expansive areas. Its advanced mirror optics deliver reliable performance, while the wide-angle coverage enhances security. The durable design ensures long-term functionality, and its streamlined installation process allows seamless integration into residential or commercial security systems.
Features:
- Quad Element PIR + Fuzzy Logic Signal Processing
- Precise mirror optics and quad element assure high reliability and catch performance
- View finder for quick precise adjustment
- Trouble Alarm
- Fine Motion Detection Alarm Memory
- Remote LED Control
Specifications:
| Product type | Passive infrared sensor |
| Detection system | Passive infrared (Quad, Fuzzy logic) |
| Coverage | Wide angle 12m (40ft) max. |
| Sensitive zones | 18 pairs (72) |
| Mounting positions | indoor wall/pillar |
| Supply voltage | 10 to 30VDC (non-polarity) |
| Current consumption | 32mA max. |
| Alarm output |
Dry contact relay (NO/NC changeover) Reset: approx. 2 sec 30V (AC/DC) 0.25A max. (resistive load) (Protective resistance 3.3Ω built-in) |
| Tamper output |
Dry contact (NC) Open when the cover is detached 30V (AC/DC) 0.1A max. (resistive load) |
| Alarm LED (Red) |
Blinking at warm-up (every 0.5 sec) Lighting at alarm (approx. 2 sec) Lighting at memory activated Lighting at trouble alarm (LED disable) |
| Memory control | Controls memory indication/reset with terminal M/C |
| LED control | Controls alarm LED indication with terminal L/C |
| Trouble alarm |
Unit trouble: monitors damage on inner circuitry/wiring Operate: initiate trouble alarm Low power voltage: monitors drop in power voltage Operate: initiate trouble alarm Failure to replace: Operate: initiate trouble alarm |
| Ambient temperature | -10°C to +50°C (+14°F to +122°F) without condensation |
| Wiring | Terminals |
| Area adjustment |
Vertically: 20 degrees Horizontally: ±5 degrees |
| Weight | 165g (5.8oz) |
| Supplied accessory | Fixing screw (4 x 30): 2pcs |
