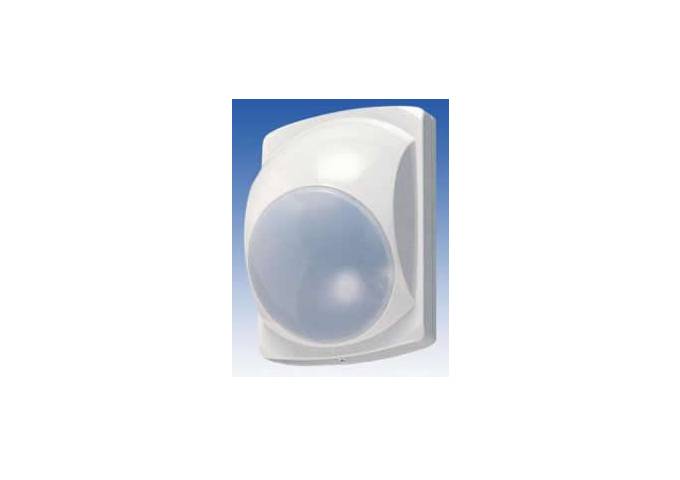

TAKEX, PA-4820 Wall Mount Vertical Curtain Detector
The TAKEX PA-4820 is a wall-mount vertical curtain detector designed for focused and precise motion detection. Its vertical curtain pattern ensures targeted coverage, ideal for narrow spaces. Built with durability and advanced technology, it provides reliable performance while its straightforward installation process allows easy integration into various security systems.
Features:
- Quad Element PIR + Fuzzy Logic Signal Processing
- Precise mirror optics and quad element assure high reliability and catch performance
- View finder for quick precise adjustment
- Trouble Alarm
- Fine Motion Detection Alarm Memory
- Remote LED Control
Specifications of TAKEX PA-4820:
| Product type | Passive infrared sensor |
| Detection system | Passive infrared (Quad, Fuzzy logic) |
| Coverage | Long range 25m (83ft) max. |
| Sensitive zones | 6 pairs (24) |
| Mounting positions | indoor wall/pillar |
| Supply voltage | 10 to 30VDC (non-polarity) |
| Current consumption | 32mA max. |
| Alarm output | Dry contact relay (NO/NC changeover) Reset: approx. 2 sec 30V (AC/DC) 0.25A max. (resistive load) (Protective resistance 3.3Ω built-in) |
| Tamper output | Dry contact (NC) Open when the cover is detached 30V (AC/DC) 0.1A max. (resistive load) |
| Alarm LED (Red) | Blinking at warm-up (every 0.5 sec) Lighting at alarm (approx. 2 sec) Lighting at memory activated Lighting at trouble alarm (LED disable) |
| Memory control | Controls memory indication/reset with terminal M/C |
| LED control | Controls alarm LED indication with terminal L/C |
| Trouble alarm | Unit trouble: monitors damage on inner circuitry/wiring Operate: initiate trouble alarm Low power voltage: monitors drop in power voltage Operate: initiate trouble alarm Failure to replace: Operate: initiate trouble alarm |
| Ambient temperature | -10°C to +50°C (+14°F to +122°F) without condensation |
| Wiring | Terminals |
| Area adjustment | Vertically: 20 degrees Horizontally: ±5 degrees |
| Weight | 165g (5.8oz) |
| Supplied accessory | Fixing screw (4 x 30): 2pcs |
