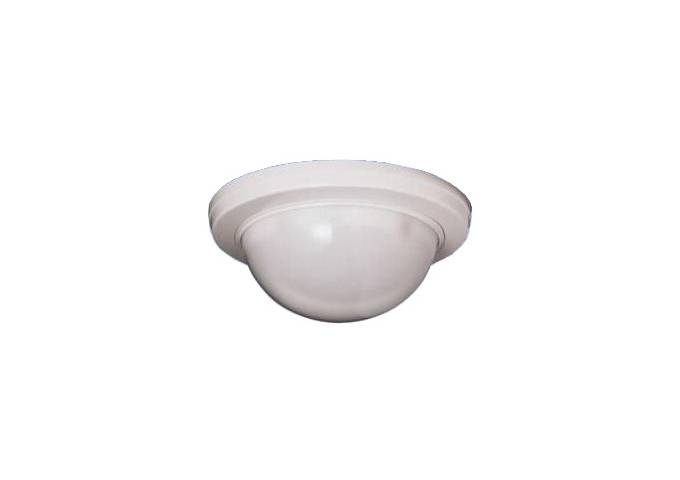

TAKEX, PA-6612 Wide Angle -Small Animal Tolerant Detector
TAKEX, PA-6612 Wide Angle -Small Animal Tolerant Detector
Part Number:
TAK161
Need help? Contact Us Now!
Trade pricing available via login.
View full details
TAKEX, PA-6612 Wide Angle "Small Animal Tolerant" Detector
The TAKEX PA-6612 is a wide-angle motion detector designed to be "small animal tolerant," minimizing false alarms from pets or wildlife. Its advanced technology ensures accurate detection for reliable security. With broad coverage and durable construction, it provides consistent performance while seamlessly integrating into residential or commercial security systems.
Features:
- super slim and compact design
- detachable base unit with snap-in/out sensor design for easy installation
- rotating mirror for efficient detection regardless of area setting
- sensitivity/pulse count selectable
- NO/NC contact output
Specifications:
| Product type | Passive infrared sensor |
| Detection system | Passive infrared |
| Coverage | Wide angle: 12m (40ft) max. |
| Sensitive zone | 17 pairs |
| Supply voltage | 10.5 to 30VDC (non-polarity) |
| Current consumption | 25mA max. |
| Alarm signal |
Dry contact (semi-conductor) (NO/NC changeover) Reset: approx. 2 sec, 24V (AC/DC) 0.25A (Protective resistor 3.3Ω) |
| Alarm memory | 3 mins. flashing, 47 mins lighting |
| Alarm LED |
Red: blinking at warm-up Lighting at alarm (LED disabled) |
| Memory LED |
Yellow: blinking at memory activated lighting at memory indication |
| Adjustment | Horizontally: 25 degrees |
| Count changeover | 1/2/3/4 changeover |
| Ambient temperature | -15°C to +55°C (+5°F to +131°F) |
| Mounting position | Indoor ceiling (wall mount with optional BCW-401) |
| Wiring connection | Terminals on separate base unit |
| Weight | 110g (3.85oz) |
| Appearance |
Body: ABS resin Cover: PE resin |
| Accessory |
Tapping screw: 2pcs Sensor locking screw: 1pc |
