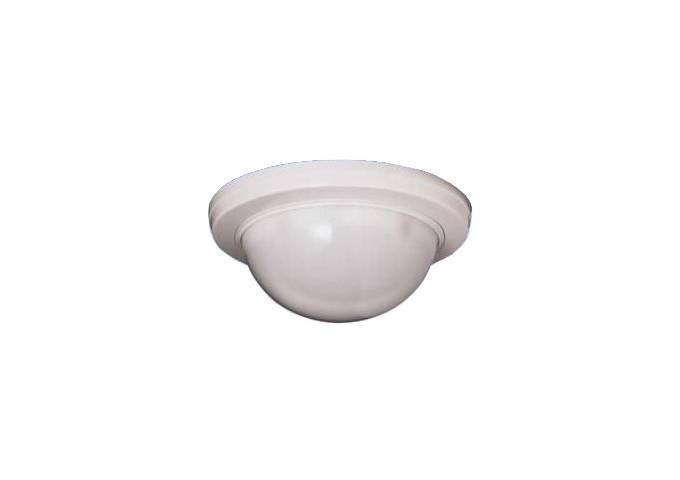

TAKEX, PA-6810 360 Degree -Snap In Detector
TAKEX, PA-6810 360 Degree -Snap In Detector
Part Number:
TAK167
Need help? Contact Us Now!
Trade pricing available via login.
View full details
TAKEX, PA-6810 360 Degree “Snap In” Detector
The TAKEX PA-6810 is a 360-degree motion detector designed for comprehensive coverage and seamless integration. Its innovative "snap-in" design ensures easy installation, while advanced detection technology provides reliable and accurate performance. Ideal for various environments, it offers robust security with full-circle monitoring and dependable operation in residential or commercial settings.
Features:
- super slim and compact design
- detachable base unit with snap-in/out sensor design for easy installation
- sensitivity/pulse count selectable
- NO/NC contact output
Specifications:
| Product type | Passive infrared sensor |
| Detection system | Passive infrared |
| Coverage | 360 degree: ∅15.2m (∅50ft) max. |
| Sensitive zone | 33 pairs |
| Supply voltage | 10.5 to 30VDC (non-polarity) |
| Current consumption | 25mA max. |
| Alarm signal |
Dry contact (semi-conductor) (NO/NC changeover) Reset: approx. 2 sec, 24V (AC/DC) 0.25A (Protective resistor 3.3Ω) |
| Alarm memory | 3 mins. flashing, 47 mins lighting |
| Alarm LED |
Red: blinking at warm-up Lighting at alarm (LED disabled) |
| Memory LED |
Yellow: blinking at memory activated lighting at memory indication |
| Adjustment | Horizontally: 25 degrees |
| Count changeover | 1/2/3/4 changeover |
| Ambient temperature | -15°C to +55°C (+5°F to +131°F) |
| Mounting position | Indoor ceiling (wall mount with optional BCW-401) |
| Wiring connection | Terminals on separate base unit |
| Weight | 110g (3.85oz) |
| Appearance |
Body: ABS resin Cover: PE resin |
| Accessory |
Tapping screw: 2pcs Sensor locking screw: 1pc |
