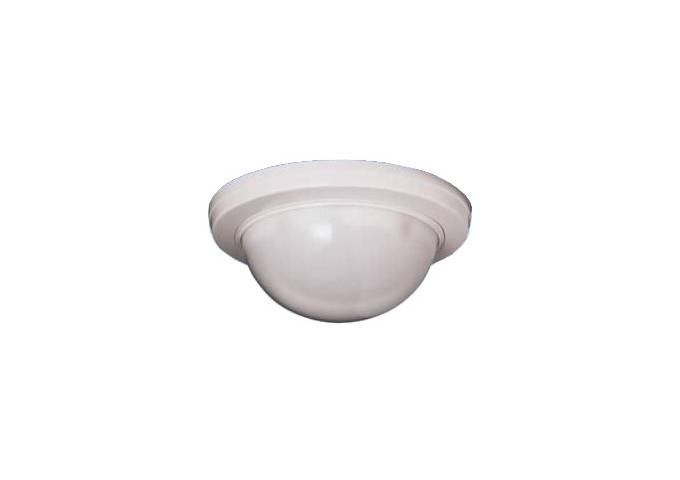

TAKEX, PA-6812 Wide Angle Mirror Optic -Snap In Detector
TAKEX, PA-6812 Wide Angle Mirror Optic -Snap In Detector
Part Number:
TAK165
Need help? Contact Us Now!
Trade pricing available via login.
View full details
TAKEX, PA-6812 Wide Angle Mirror Optic “Snap In” Detector
The TAKEX PA-6812 is a wide-angle mirror optic "snap-in" detector designed for enhanced motion detection in large areas. This innovative sensor features a high-quality mirror optic that expands its detection range, ensuring broad coverage for security applications. Its "snap-in" design simplifies installation, allowing for quick and easy setup. The PA-6812 is built to provide reliable performance with reduced false alarms, thanks to its advanced detection technology. Furthermore, its durable construction ensures consistent operation in various environments. Overall, the PA-6812 delivers precise, wide-angle detection and is an ideal solution for comprehensive security monitoring.
Features:
- super slim and compact design
- detachable base unit with snap-in/out sensor design for easy installation
- rotating mirror for efficient detection regardless of area setting
- sensitivity/pulse count selectable
- NO/NC contact output
Specifications:
| Product type | Passive infrared sensor |
| Detection system | Passive infrared |
| Coverage | Wide angle: 12m (40ft) max. |
| Sensitive zone | 17 pairs |
| Supply voltage | 10.5 to 30VDC (non-polarity) |
| Current consumption | 25mA max. |
| Alarm signal | Dry contact (semi-conductor) (NO/NC changeover) Reset: approx. 2 sec, 24V (AC/DC) 0.25A (Protective resistor 3.3Ω) |
| Alarm memory | 3 mins. flashing, 47 mins lighting |
| Alarm LED | Red: blinking at warm-up Lighting at alarm (LED disabled) |
| Memory LED | Yellow: blinking at memory activated lighting at memory indication |
| Adjustment | Horizontally: 25 degrees |
| Count changeover | 1/2/3/4 changeover |
| Ambient temperature | -15°C to +55°C (+5°F to +131°F) |
| Mounting position | Indoor ceiling (wall mount with optional BCW-401) |
| Wiring connection | Terminals on separate base unit |
| Weight | 110g (3.85oz) |
| Appearance | Body: ABS resin Cover: PE resin |
| Accessory | Tapping screw: 2pcs Sensor locking screw: 1pc |
