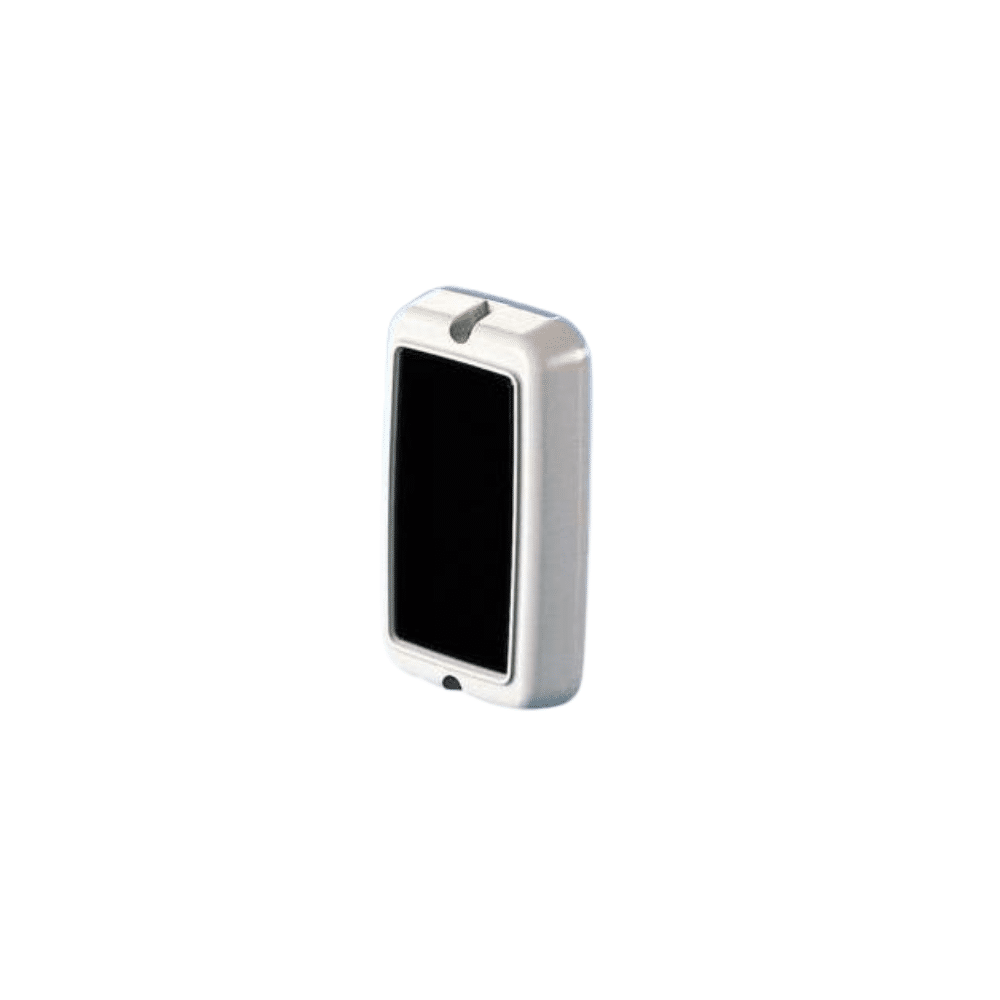

TAKEX, PR-1B Low Cost Retro Beam
The TAKEX PR-1B is a cost-effective retro reflective beam sensor designed for reliable intrusion detection. Its simple yet efficient design uses a single beam with a reflector, ensuring easy installation and maintenance. Ideal for smaller security setups, it provides dependable performance and seamless integration into various security systems at an affordable price.
TAKEX indoor Reflector Beam series is designed for applications where a 'beam-break' is desirable, but running wire to both ends in impractical.
The PR-1B is a non-reflector type presence sensor which emits an infra-red beam to a distance of 1m. When the Infra-red beam signal is reflected back to the transceiver (by a passing human or object) a contact output is triggered. The PR-1B is a pocket calculator sized beam designed for unobtrusive protection.
For distances up to 1m (3.3ft) indoor.
Note: For correct operation, the sensor should be installed in a position where there is no obstacle within 2m (6.6ft).
Features:
- Non-reflector type Presence Sensor
- Cable only to one end: for applications where a beam break is desirable but wiring to both ends is impractical
- Small "pocket-calculator" sized housing for unobtrusive protection.
Specifications:
| Product type | Photoelectric Beam Sensor |
| Detection system |
Near-Infrared (Direct reflective detection of motionless objects) |
| Protection distance | 1m (3.3ft) or less |
| Response time | 100msec. or more |
| Alarm Output |
Dry contact relay output: 1c Contact activation: detection time + off delay (approx. 0.5sec.) Contact capacity: 30V AC/DC, 0.5A or less |
| Supply voltage | 10.5V to 22VDC (non-polarity) |
| Current consumption | 60mA or less (at 12VDC) |
| Ambient Temperature range | -20°C to +50°C (-4°F to +122°F) |
| Mounting position | Indoor |
| Weight | Approx. 75g (2.6oz) |
| Appearance | ABS Resin (off-white) |
