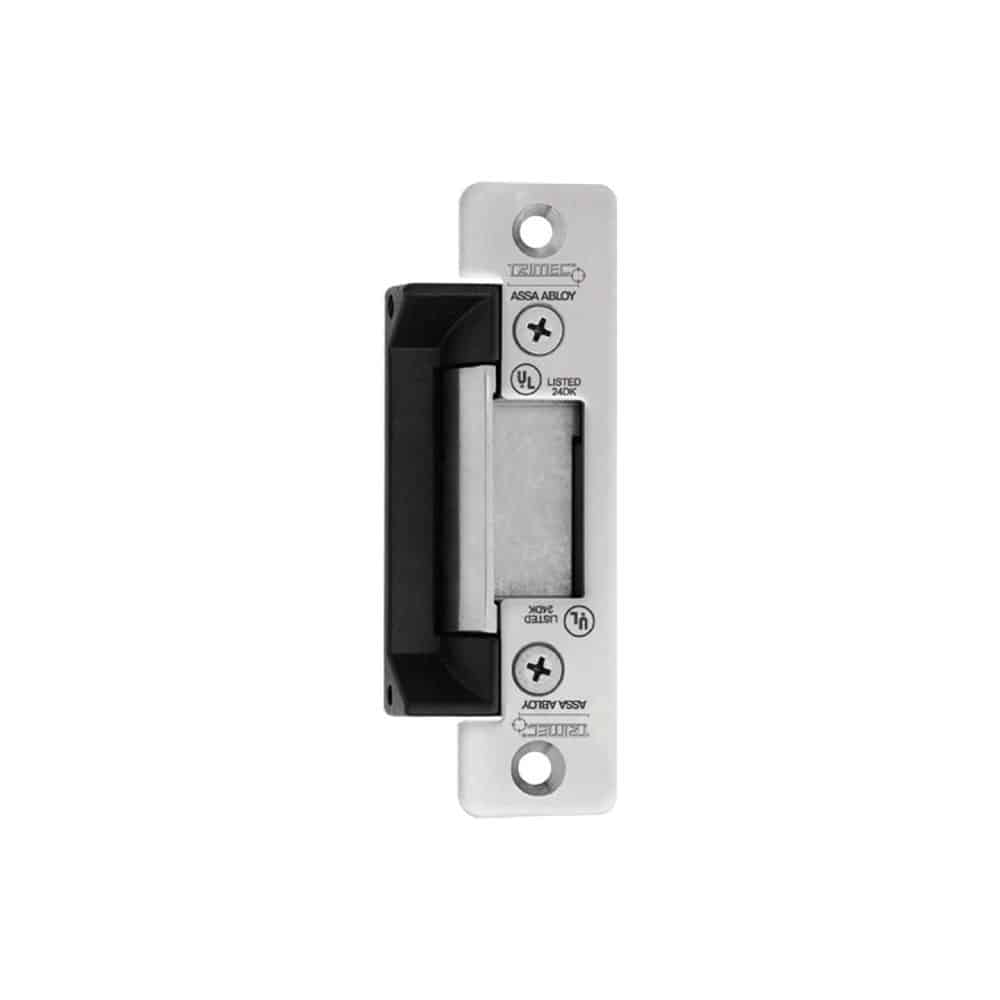

Trimec Assa Abloy 110101-070M 12-24VDC, Suits 18mm Latch With 3mm Door Gap
Trimec Assa Abloy 110101-070M 12-24VDC, Suits 18mm Latch With 3mm Door Gap
Trimec Assa Abloy 110101-070M ES110 Series Electric Strike
Fail safe/fail secure changeable on site.
Firstly, The ES110 is a cost efficient robust electric strike with a solid construction of one-piece cast aluminum body and stainless steel striker. In addition, having a deeper than normal strike-keeper area. Furthermore, The ES110 is designed to work with an extensive range of locks and offers the same level of security and reliability usually provided by more expensive electric locking solutions.
Secondly, Extension lips are available to accommodate the installation of electric strikes on door frames with different thickness. Moreover, The ES110 product range of patented electric strikes are suitable for use with all access control installations where flexibility, security and lower cost are required.
Key Features
- All models IP56 Weather resistant
- Fail safe/fail secure changeable on site
- Stainless steel striker for extra strength and durability
- Stainless steel locking pins
- Multi Voltage12VDC & 24VDC
- Optional mounting kit
- Installation template
- Suitable For 18mm latch with a 3mm door gap
- Finally, a TRICARE® 5 Year Warranty
Applications (Trimec 110101-070M)
- Exposed areas
- High traffic areas
- Open in/open out doors
- Lastly, suitable for use with all access control systems
Standards and Compliance (Trimec 110101-070M)
- Firstly, Successfully fire rated up to 4hrs on fire door assemblies in accordance with AS1905.1 (Part 1: Fire resistant door sets)
- Secondly, For any fire rated applications of this product, the fire certification should be investigated and examined to ensure the suitability & configuration of this product for that particular door assembly. Contact the supplier for further details, such as certifications, door type and door thickness etc. that may affect the fire door suitability and rating.
- Third, Approved to UL1034 (highest level)
- CE approved (EMC, ROHS & REACH)
- Regulatory Compliance Mark (RCM) approved
- Weather Resistant (IP56)
Voltage
12Vdc & 24Vdc
Current
250 mA @ 12Vdc - 125mA @ 24Vdc
Solenoid
Solenoids are rated for continuous use.
Monitoring
None
Holding Force
680 kg Static Strength Rating
Endurance
Cycle tested to 1,000,000 operations
Environment
Operational temperature range -20°C to + 60°C
Weather resistant construction Standard. (IP56)
Body
Cast Aluminium Construction
Keeper
Stainless Steel
Latch
Suitable for 18mm latchbolt with 3mm door gap
Specification Statement
Where Power to Lock and Power to Open functions may be required in the same building, the strike must be interchangeable from either "Power to Lock" or "Power to Open" on site. The electric strike should not consume current greater than 250 mA @ 12Vdc - 125mA @ 24Vdc and have a solenoid suitable for continuous use. The strike should have a minimum holding force of 680kg, and an endurance rating of 1 million cycles.
