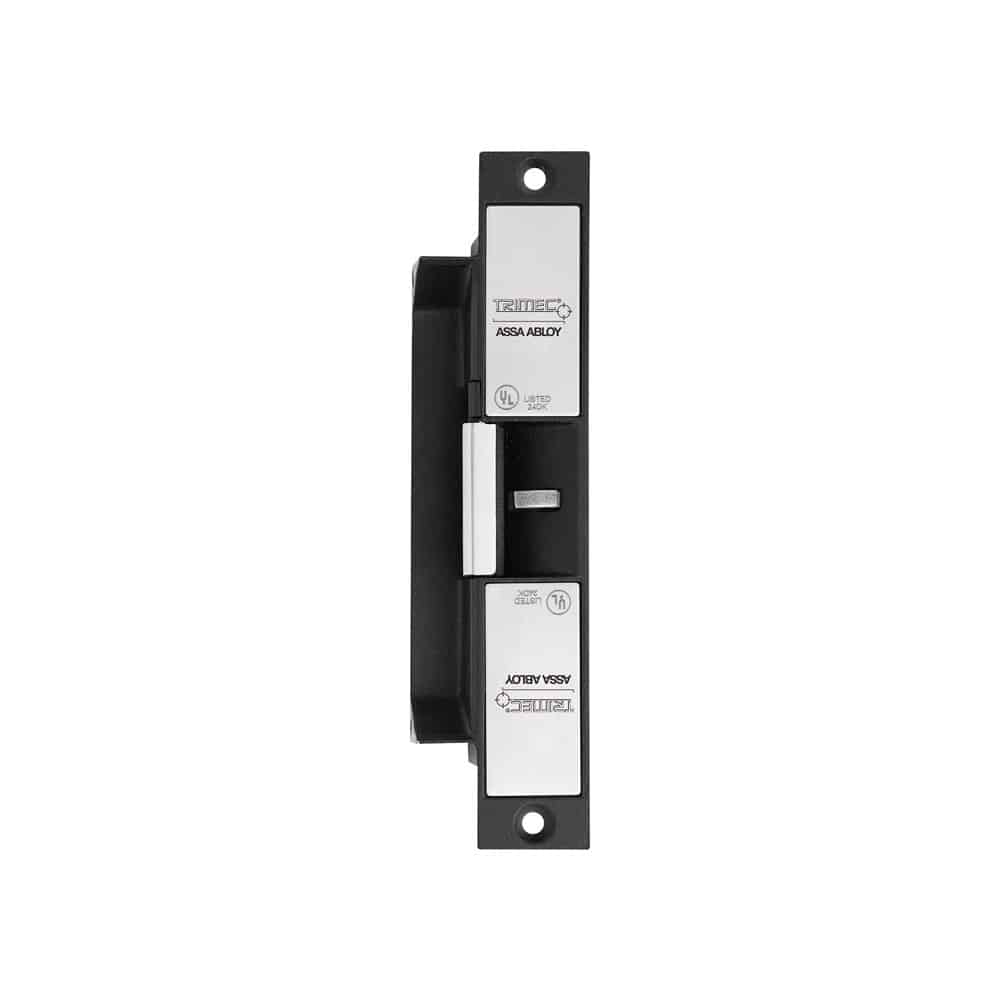

Trimec Assa Abloy 112001-000 ES2000 Series Monitored Electric Strike
Fail safe/fail secure changeable on site.
The ES2000 series electric strikes are fully monitored high security products manufactured from stainless steel and designed for use with all access control systems. The strikes are suitable for use with hinged doors which require either fire or security control as part of a building management system.
These strikes are flexible and can be changed from fail safe to fail secure, mounted on the left or right hand side of the door and are available in 12Vdc.
They offer a strong, dependable and long-lasting electric strike solution with a 850kg holding force and endurance rating of 1 million cycles.
Key Features
- Fully monitored - strike locked and door latched
- Fail safe/fail secure changeable on site
- High security
- Fire Rated
- 850kg holding force
- 1 million cycles endurance rating
- Cast stainless steel body
- Stainless steel locking pins
- SCEC Endorsed
- Low Current consumption -175mA @12Vdc after 1 second
- Solenoid rated for continuous use
- Mounting kit supplied as standard
- TRICARE® 5 Year Warranty
Applications (Trimec 112001-000)
- High traffic areas
- Fire rated door sets
- Open in/open out doors
- Suitable for use with all access control systems
Standards and Compliance
- S3 (Security) Australian Lock Standard (AS4145.2.2008)
- D3 (Durability) Australian Lock Standard (AS4145.2.2008)
- BS EN 12209:2016Approved
- Successfully fire rated up to 4hrs on fire door assemblies in accordance with AS1905.1 (Part 1: Fire resistant door sets)
- For any fire rated applications of this product, the fire certification should be investigated and examined to ensure the suitability & configuration of this product for that particular door assembly. Contact the supplier for further details, such as certifications, door type and door thickness etc. that may affect the fire door suitability and rating.
- Approved to UL1034 (highest level)
- CE approved (EMC, ROHS & REACH)
- Regulatory Compliance Mark (RCM) approved
- SCEC endorsed for secure areas
Voltage
12Vdc
Current
175 mA @ 12Vdc
Solenoids
Solenoids are rated for continuous use
Monitoring
Solenoid Monitor - 1 amp NO/NC microswitch
Door/Latch Monitor - 1 amp NO/NC microswitch
Holding Force
850kg Static Strength Rating
Endurance
Cycle tested to 1,000,000 operations
Latch
Suitable for 15mm latch bolt with 3mm door gap
Environment
Operational temperature range - 20°C to +60°C
Body
Solid Stainless Steel Construction
Keeper
Stainless Steel
Specification Statement
The strike should be constructed of solid stainless steel, have a minimum holding force of 850kg and have an endurance rating of 1 million cycles. Monitoring must include independent door / latch& solenoid monitoring. The one strike must be changeable from fail safe to fail secure on site where required. The strike should not consume current greater than 175mA at 12Vdc and have a solenoid rated for continuous use.
