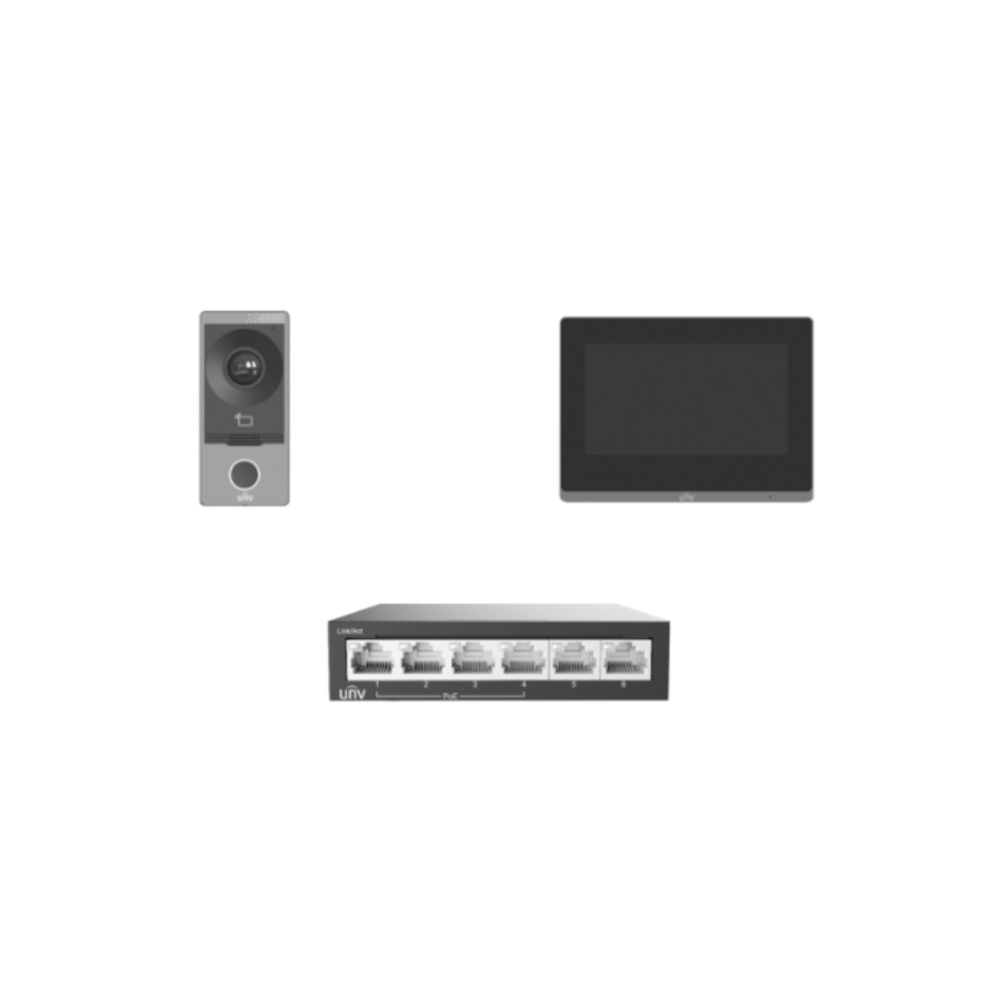

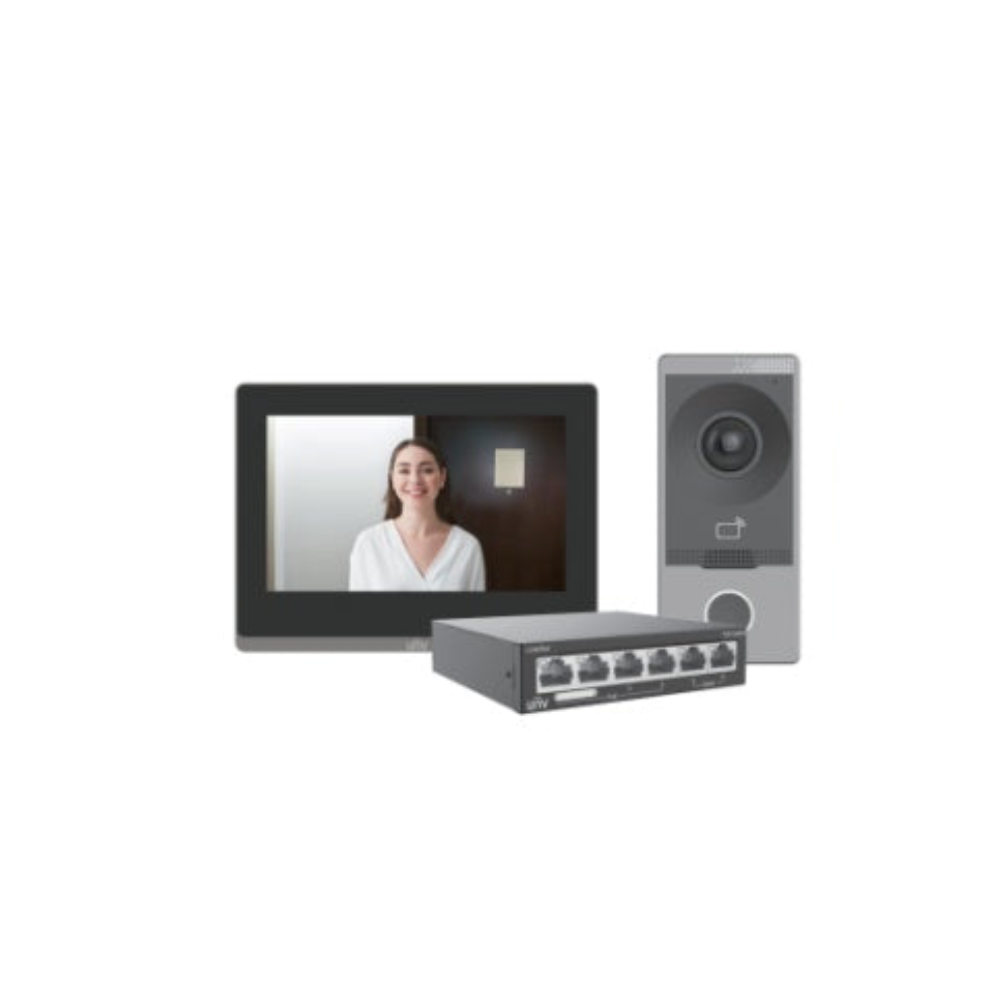

UniView Intercom KIT201S-327S-Black

This comprehensive intercom system combines three essential components for integrated access control and communication.

The outdoor station (OEU-201S-HMK-W) features a robust metal casing and supports two-way calling and intercom functionality with indoor units and mobile apps. It includes built-in security features such as alarm triggers for door magnets and infrared sensors, Wi-Fi connectivity, and an integrated IC card reader for access management.

The indoor station (OEI-372S-H-W) offers a durable ABS casing with glass panel and a responsive 1024 x 600 HD touchscreen display. It enables remote door opening, live video monitoring of connected door stations and network cameras, and seamless Wi-Fi integration for reliable communication.

The network switch (NSW2020-6T-POE-IN) provides intelligent network management with multiple operating modes including Default, VLAN, and Extend. It supports VLAN isolation for enhanced security, network extension up to 250 metres, port priority for optimised data flow, and flow control to manage congestion. The all-metal casing ensures durability, while plug-and-play installation keeps setup simple and convenient.

Features:

OEU-201S-HMK-W

• Metal casing.
• Supports call and intercom with the connected indoor station and app.
• Supports security protection alarm and tamper alarm triggered by door magnet, infrared, etc.
• Supports Wi-Fi.
• Built-in IC card reader.

OEI-372S-H-W

• ABS casing and glass panel, solid and durable.
• Supports Wi-Fi.
• Supports touchscreen operation.
• 1024 x 600 HD screen.
• Supports remote door opening by sending signal to the door station.
• Allows to view live video of connected door stations and network cameras.

NSW2020-6T-POE-IN

• Allows to switch operating modes, including Default, VLAN, and Extend.
• Supports VLAN isolation. All PoE ports are isolated from each other and only able to communicate with uplink ports.
• Supports network extension. With a high-quality network cable and IPC, the network transmission distance can reach up to 250 meters by lowering the network port rate to 10Mbps.
• Supports port priority. Packets from high-priority ports will be forwarded first.
• Supports flow control. When there is data congestion in the uplink ports, the switch will actively send flow control frames to PoE ports.
• Plug-and-play, simple and convenient.
• All metal casing, secure and reliable.
