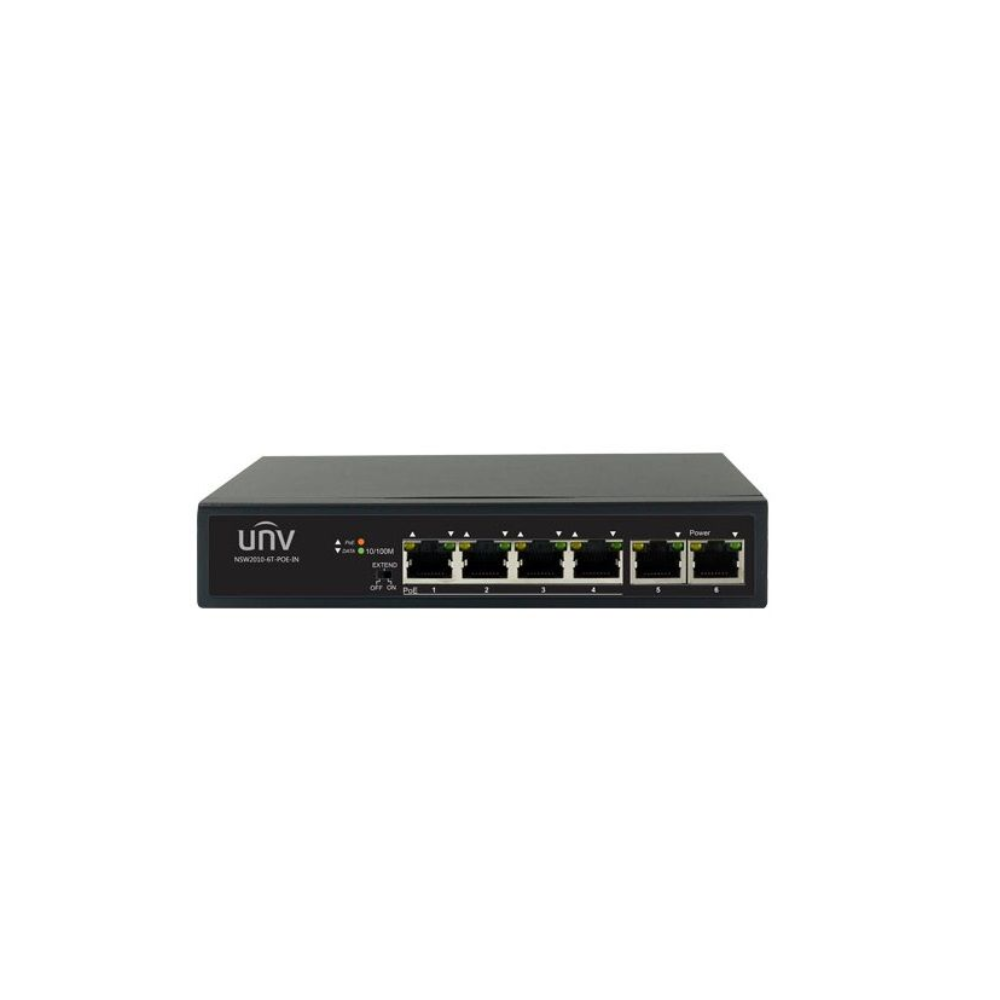

Uniview NSW2020-6TPOE Network Switch 4 PoE & 2 Uplink
Uniview NSW2020-6TPOE Network Switch 4 PoE & 2 Uplink
Need a product not listed online? Contact our team and we’ll source it for you.
View full details
Uniview NSW2020-6TPOE Network Switch 4 PoE & 2 Uplink
- Multiple working modes to address your business needs: Default(Normal mode), VLAN(Secure mode), EXTEND(Surveillance mode)
- Support port traffic control
- Support for secure mode, all downlink ports can communicate only with uplink ports
- Up to 250m transmission distance on surveillance mode
- Support buffer optimization
- All metal housing, safe and reliable
Specifications
|
Model |
Description |
|
Ports |
6×100Mbps network ports (RJ45), including 4 PoE ports |
|
Standards |
IEEE802.3,IEEE802.3u,IEEE802.3az, IEEE802.3x,IEEE802.3af,IEEE802.3at |
|
Switching capacity |
1.2Gbps |
|
Forwarding performance |
0.90Mpps |
|
Packet Buffer |
448knit |
|
MAC |
1K |
|
Dimensions (W×D×H) |
108mm x 100mm x 25.5mm |
|
Weight |
0.19kg |
|
Power supply |
D: 48/51V |
|
PoE |
802.3at/af （4/5+，7/8-） |
|
Max. PoE Power |
Max capacity: 60W |
|
Prior Ports |
2 |
|
Cooling Fans |
0 |
|
Operating humidity |
10%～90% (noncondensing) |
|
Storage humidity |
5%～90% (noncondensing) |
|
Indicator |
No PoE Indicator PoE-MAX： LINK/ACT： |
|
Working Mode |
Default(Normal mode) : All ports can communicate with each other. |
