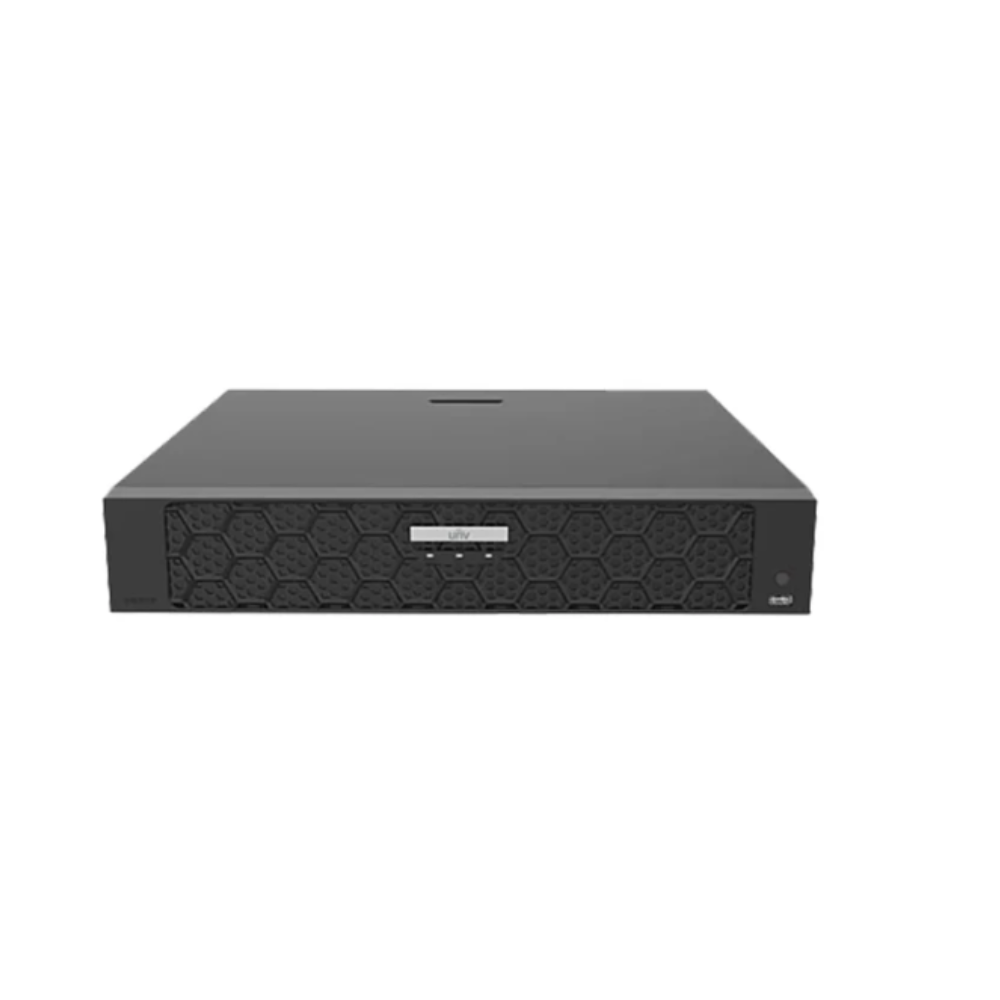

Uniview NVR504-32B-P16IQ NVR 32CH 4 SATA 16 PoE IQ NO HDD

The Uniview NVR504-32B-P16-IQ is a 32-channel network video recorder engineered for scalable surveillance deployments.

It features 16 built-in PoE ports delivering up to 30W per port (150W total) for direct camera power, eliminating separate injectors.

Supporting Ultra H.265, H.264, and H.265 codecs, it handles up to 16MP recording across 32 IP cameras with 320 Mbps inbound throughput and 4K HDMI output.

The system includes four SATA bays (up to 16TB each) with RAID 1/5 protection and Automatic Network Replenishment (ANR) to safeguard footage during network interruptions.

Advanced features include NVR-based face recognition, intelligent video content analysis (VCA) with searchable reports, and flexible multi-view layouts up to 32 simultaneous streams.

Compact 1.5U form factor with dual video outputs (HDMI + VGA), 16 alarm inputs/4 outputs, RS-485 control, and USB connectivity.

Operates efficiently at under 12W (without drives) across −10 to 50°C. Certified CE/FCC/UL/RoHS/WEEE compliant.

Features

• Support Ultra 265/H.265/H.264 video formats
• 32-channel input
• Plug & Play with 8/16 independent PoE network interfaces
• Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
• Support 1-ch HDMI, 1-ch VGA. HDMI up to 4K (3840x2160) resolution
• VGA and HDMI independent output
• Up to 16 Megapixels resolution recording
• ANR technology to enhance the storage reliability when the network is disconnected
• Support cloud upgrade
